Introducere
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your PerfectAire 4PMC5000 Window Air Conditioner. Please read this manual thoroughly before using your air conditioner and retain it for future reference.
The PerfectAire 4PMC5000 is a 5,000 BTU window air conditioner designed to cool rooms ranging from 100 to 150 square feet. It features an EER of 11.1, ensuring efficient cooling. Key features include adjustable temperature settings, a slide-out washable filter, 2-speed rotary dials, and 2-way air direction control.

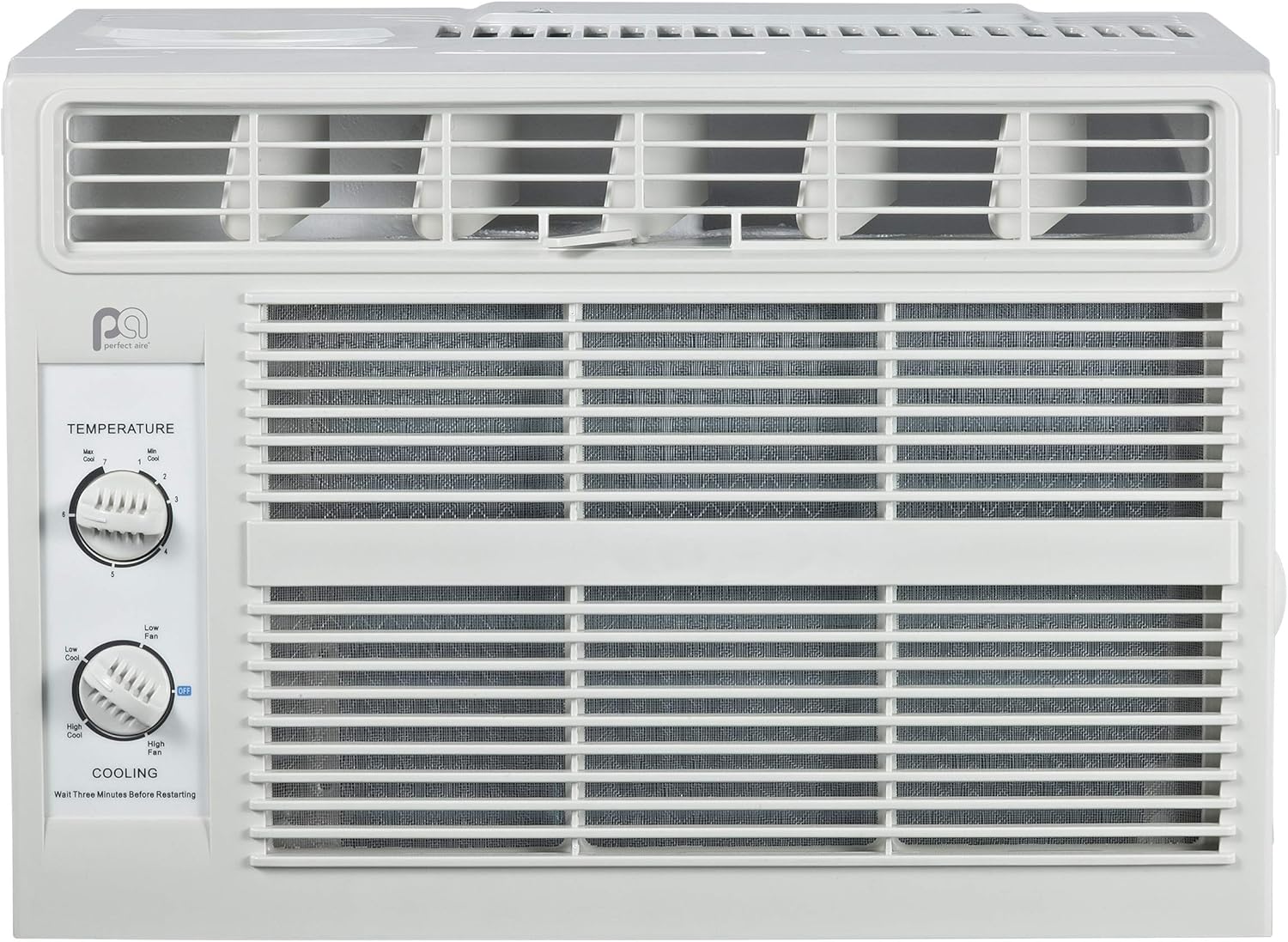

Figura 1: Față view of the PerfectAire 4PMC5000 Window Air Conditioner, showing the control dials and air vents.
Informații de siguranță
Pentru a preveni rănirea utilizatorului sau a altor persoane și daune materiale, trebuie respectate următoarele instrucțiuni. Funcționarea incorectă din cauza ignorării instrucțiunilor poate provoca daune sau daune.
- Always connect to a grounded power outlet. Do not use extension cords or adapter plugs.
- Ensure the electrical supply matches the specifications of the unit (115V, 15 Amp outlet configuration).
- Do not operate the air conditioner with wet hands or when standing in water.
- Nu blocați intrările sau ieșirile de aer.
- Țineți materialele inflamabile departe de unitate.
- Deconectați unitatea înainte de curățare sau întreținere.
- Nu încercați să reparați sau să modificați unitatea singur. Contactați personal de service calificat.
Configurare și instalare
The PerfectAire 4PMC5000 is designed for window installation and comes with a window mounting kit. Proper installation is crucial for optimal performance and safety.
Alegerea locației potrivite:
- Select a window that can securely support the weight of the unit (approximately 40 lbs).
- Ensure the window opening dimensions are suitable. The unit dimensions are approximately 15.5 x 16 x 12 inches (Width x Depth x Height).
- The window should be free from obstructions that could block airflow.
- Ensure a grounded 115V, 15 Amp electrical outlet is nearby.
Pașii de instalare:
Refer to the detailed instructions provided in the window mounting kit for specific installation procedures. The general steps include:
- Prepare the window opening by cleaning the area.
- Install the top rail and side panels according to the kit instructions.
- Carefully lift and place the air conditioner into the prepared window opening.
- Secure the unit using the provided screws and brackets.
- Extend the accordion panels to fill the window gap and seal them.
- Ensure the unit is slightly tilted outwards to allow for proper condensate drainage.
Figure 2: Diagram illustrating window measurement and installation considerations for the PerfectAire 4PMC5000.
Instrucțiuni de operare
Familiarize yourself with the control panel for efficient operation of your air conditioner.
Figura 3: Prim-plan view of the control panel on the PerfectAire 4PMC5000, showing temperature and fan speed dials.
Butoane de control:
- Selector de temperatură: Adjusts the desired cooling temperature. Rotate the dial to select a temperature setting from 1 (least cool) to 7 (most cool).
- Cooling/Fan Speed Dial: This 2-speed rotary dial controls both the fan speed and the cooling mode.
- Ventilator redus: Funcționează ventilatorul la viteză mică fără răcire.
- Ventilator puternic: Funcționează ventilatorul la viteză mare fără răcire.
- Răcire scăzută: Activates cooling with the fan at a low speed.
- Răcire ridicată: Activates cooling with the fan at a high speed.
Air Direction Control:
The unit features 2-way air direction control. Adjust the horizontal louvers to direct airflow left or right as desired for optimal room coverage.
Notă importantă:
Wait Three Minutes Before Restarting:
If you turn off the air conditioner or switch from cooling to fan mode, wait at least three minutes before restarting the cooling function. This allows the compressor to stabilize and prevents damage to the unit.
Întreţinere
Regular maintenance ensures the longevity and efficient operation of your PerfectAire air conditioner.
Curățarea filtrului de aer:
The unit is equipped with a slide-out washable filter. Clean the air filter every two weeks, or more frequently depending on usage and air quality, to maintain optimal performance.
- Deconectați aparatul de aer condiționat de la priză.
- Gently slide out the air filter from its slot.
- Spălați filtrul cu apă caldă și săpun. Clătiți bine.
- Lăsați filtrul să se usuce complet la aer înainte de a-l reintroduce. Nu folosiți apă fierbinte și nu-l uscați direct sub căldură.
- Slide the dry filter back into its original position.
Curatenie generala:
- Ștergeți exteriorul unității cu un material moale, damp pânză. Nu utilizați substanțe chimice dure sau produse de curățare abrazive.
- Ensure the drainage area at the back of the unit is clear of debris.
- For long-term storage, clean the unit thoroughly, allow it to dry, and cover it to protect from dust.
Depanare
Înainte de a contacta serviciul de asistență pentru clienți, vă rugăm să consultați următoarele probleme frecvente și soluțiile aferente:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Air conditioner does not turn on. | No power, tripped circuit breaker, unit unplugged. | Verificați conexiunea cablului de alimentare, resetați întrerupătorul de circuit, asigurați-vă că priza funcționează. |
| Unitatea nu răcește eficient. | Dirty air filter, blocked airflow, room too large, temperature setting too high. | Clean air filter, ensure no obstructions, verify room size is within 100-150 sq. ft. range, lower temperature setting. |
| Water dripping from unit (indoors). | Unit not tilted properly, drain blocked. | Ensure unit is slightly tilted outwards for drainage. Check and clear any blockages in the drain pan/hose. |
| Zgomot neobișnuit. | Loose parts, unit not level, foreign object inside. | Check for loose screws, ensure unit is level, unplug and inspect for foreign objects. If noise persists, contact support. |
Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Numele modelului | 4PMC5000 |
| Capacitatea de racire | 5,000 BTU |
| Raportul de eficiență energetică (EER) | 11.1 |
| Zona de acoperire | 100-150 mp. |
| Voltage | 115 volți |
| Amps | 4.0 |
| wați | 446 |
| Decibels (Hi/Lo) | 55/51 |
| Dimensiuni produs (L x l x H) | 39.37 x 40.64 x 30.48 cm (aprox. 15.5 x 16 x 12 inci) |
| Greutatea articolului | 40 de lire sterline (18.14 kg) |
| Caracteristica specială | Functie dezumidificator |
| Tip filtru | Slide-Out Washable Filter |
| Certificari | C/UL/us Listed, EER Certified |
Garanție și suport
Your PerfectAire 4PMC5000 Window Air Conditioner comes with a Garanție limitată. Please refer to the warranty card included with your product for specific terms and conditions.
For product support, technical assistance, or warranty inquiries, please contact Perfect Aire customer service:
- Telefon: 866-996-9255
- E-mail: supportatperfectaire.US
When contacting support, please have your model number (4PMC5000) and purchase information ready.
