Introducere
This manual provides essential information for the proper installation, operation, and maintenance of your Delta 590T1151TR Commercial Faucet. Please read these instructions thoroughly before beginning installation or use to ensure optimal performance and longevity of the product. Retain this manual for future reference.
Informații importante privind siguranța
- Always turn off the water supply at the main shut-off valves before installing or servicing the faucet.
- Purtați echipament individual de protecție adecvat, cum ar fi ochelari de protecție, în timpul instalării.
- Dacă nu sunteți sigur de vreo parte a procesului de instalare, consultați un instalator calificat.
- Asigurați-vă că sunt respectate toate normele locale de instalații sanitare și de construcție în timpul instalării.
- Acest produs este conceput pentru uz comercial.
Produs terminatview
The Delta 590T1151TR is a commercial-grade, single-hole, deck-mount faucet featuring electronic sensor operation. It is designed for efficiency and hygiene in commercial environments. This faucet is ADA Compliant, CalGreen Compliant, and Watersense Qualified, ensuring water conservation with a flow rate of 0.5 GPM.
Figura 1: The Delta 590T1151TR Commercial Faucet. This image displays the chrome-finished faucet body with the integrated sensor at the base.
Configurare și instalare
Notă importantă: The Delta 590T1151TR is a trim kit only. A separate Trusă aspră is required for complete installation and functionality. The rough-in kit typically includes the necessary control box, power source (e.g., battery pack or AC adapter), and other components for water supply and electronic connections. Ensure you have the correct rough-in kit before proceeding with installation.
Components Included (Trim Kit)
Figura 2: A explodat view of the Delta 590T1151TR trim kit components. This image shows the faucet spout, mounting hardware, and various seals and connectors that are part of the trim kit.
General Installation Steps (Requires Rough-In Kit)
- Pregătiți zona de instalare: Ensure the mounting surface is clean and clear. Turn off the water supply.
- Install Rough-In Kit: Follow the instructions provided with your specific Delta rough-in kit to install the control box, power source, and water supply lines. This typically involves mounting the control box under the sink and connecting the hot and cold water lines.
- Montați robinetul: Place the faucet body through the single hole on the deck. Secure it from underneath with the provided mounting hardware.
- Conectați conductele de apă: Connect the flexible supply lines from the faucet to the corresponding outlets on the rough-in kit's control box.
- Connect Electronic Cables: Connect the sensor cable from the faucet to the control box. Ensure all electrical connections are secure.
- Funcționare de testare: Turn on the water supply and check for leaks. Activate the sensor to ensure proper water flow.
Instrucțiuni de operare
The Delta 590T1151TR faucet operates using an integrated electronic sensor, providing touchless activation for enhanced hygiene.
Activarea senzorului
- To Activate Water Flow: Place your hands within the detection range of the sensor located at the base of the faucet spout. Water will begin to flow automatically.
- To Stop Water Flow: Remove your hands from the sensor's detection range. The water flow will cease automatically after a brief delay.
- Reglarea temperaturii apei: Water temperature is typically controlled by a mixing valve within the rough-in kit or external thermostatic mixing valve, which is set during installation. This faucet does not have an integrated temperature adjustment handle.
Întreţinere
Regular maintenance ensures the longevity and optimal performance of your Delta faucet.
Curățarea robinetului
- Terminați îngrijirea: Curățați finisajul cromat cu o lavetă moale,amp Evitați produsele de curățare abrazive, substanțele chimice dure sau bureții abrazivi, deoarece acestea pot deteriora finisajul.
- Curățarea senzorului: Gently wipe the sensor window with a soft, lint-free cloth to ensure it remains clear and responsive. Do not use harsh chemicals on the sensor.
Întreținere aerator
- Periodically unscrew the aerator from the spout tip and rinse it under running water to remove any debris or mineral buildup. This helps maintain consistent water flow.
- Reinstall the aerator securely, ensuring it is hand-tightened to prevent leaks.
Power Source (Rough-In Kit Dependent)
- If your rough-in kit uses batteries, monitor the battery indicator (if present) or replace batteries as recommended by the rough-in kit's instructions to ensure continuous operation.
- If using an AC adapter, ensure the power connection is secure and free from damage.
Depanare
Înainte de a contacta asistența, reținețiview următoarele probleme și soluții comune.
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Fără curgere de apă | Water supply off; Power issue (batteries/AC); Clogged aerator; Sensor obstruction | Check main water supply; Verify power to control box; Clean aerator; Ensure sensor is clear. |
| Debit scăzut de apă | Clogged aerator; Debris in supply lines; Low water pressure | Clean aerator; Flush supply lines (consult plumber); Check building water pressure. |
| Senzorul nu răspunde | Sensor dirty/obstructed; Power issue; Sensor malfunction | Clean sensor window; Check power supply; If problem persists, contact support. |
| Debit constant de apă | Sensor malfunction; Debris in valve | Remove any objects from sensor range; Turn off water supply and contact support. |
Specificații
| Caracteristică | Detaliu |
|---|---|
| Marca | DELTA |
| Numărul de model | 590T1151TR |
| Tip de finisare | Chrome |
| Material | Alamă |
| Tip de montare | Montura pe punte |
| Tip de instalare | Hole unică |
| Tip mâner | Sensor (Electronic) |
| Debitul | GPN 0.5 |
| Conform ADA | Da |
| CalGreen Compliant | Da |
| Watersense Qualified | Da |
| Greutatea articolului | 1 lire sterline |
| Dimensiunile produsului | 1 x 1 x 1 inches (Faucet body only) |
| UPC | 055870374461 |

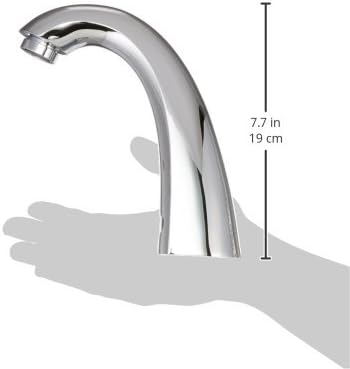

Figura 3: Latura view of the Delta 590T1151TR faucet with approximate height measurement of 7.7 inches (19 cm).
Informații despre garanție
Specific warranty details for the Delta 590T1151TR Commercial Faucet are typically provided with the complete product package, including the rough-in kit. For the most current and detailed warranty information, please refer to the documentation included with your purchase or visit the official Delta Faucet website-ul.
Informații de asistență
For technical assistance, replacement parts, or further inquiries regarding your Delta 590T1151TR Commercial Faucet, please contact Delta Faucet customer service. Contact information and support resources can be found on the official Delta Faucet website:
