1. Produs terminatview
The TrickleStar TS1003 / 180SS-US-7XX Advanced Powerstrip is designed to help reduce energy waste by automatically cutting power to peripheral devices when the main control device (like a TV or PC) is turned off. This helps combat 'vampire' or standby power consumption, which can account for a significant portion of household utility bills. It also provides premium quality surge protection for connected electronic equipment.
Figura 1: De sus în jos view of the TrickleStar Advanced Powerstrip, showing all 7 outlets and indicator lights.
2. Caracteristici cheie
- Fireproof Surge Protection: Provides 2160 Joules of surge protection for all connected devices.
- 7 prize: Includes 1 Control Outlet, 2 Always On Outlets (one transformer-spaced), and 4 Switched Outlets.
- Selectable Switching Thresholds: Adjustable thresholds of 10W, 22W, or 42W to ensure compatibility with various PCs and TVs.
- Indicație LED de stare: Features LED indicators for Ground, Surge Status, Control, and Switched Outlets, providing clear operational feedback.
- Noise Filtering: Less than 40dB noise filtering for cleaner power.
- Child Protection Covers: Integrated covers help prevent accidental insertion of objects into unused outlets.
- Cablu de alimentare rezistent: Equipped with a robust 4 ft cord rated to 15 Amps and high-quality flat plugs for durability and safe placement.
- UL94 V-0 Rated Plastic Material: Constructed with highly flame-resistant plastic for enhanced safety.
Figura 2: Detaliat view of the powerstrip's outlets, showing 'always on', 'control', and 'switched' sections.
3. Informații de siguranță
Electrical safety is paramount. Incorrect use of power strips can lead to serious hazards, including fires. Please observe the following safety guidelines:
- Evitați conectarea în lanț: Never plug one power strip into another. This can overload circuits and create a fire hazard.
- Preveniți supraîncărcarea: Do not plug too many devices into the power strip, especially high-current devices. Ensure the total wattage of connected devices does not exceed the power strip's rating.
- Plasarea corectă: Do not place the power strip near moisture, water, or in outdoor environments. It is designed for indoor use only.
- High Current Loads: Appliances such as air conditioners, space heaters, and refrigerators should NU be plugged into a power strip. These devices require direct connection to a wall receptacle due to their high power draw.
- UL Certified Products: Always use UL or ETL certified power strips. TrickleStar products are certified to the latest UL safety standards, and our factory is inspected and certified annually by UL.
- Verificați indicatoarele LED: Regularly check the LED indicators for Surge, Ground, and Switched status. Proper grounding is essential for surge protection to function correctly.
- Siguranța copiilor: The integrated child safety protection covers help prevent children from inserting objects into unused outlets.
Video: TrickleStar Advanced Power Safety Video. This video provides detailed information on power strip safety and the robust safety features built into TrickleStar products.
4. Configurare și instalare
- Despacheta: Scoateți cu grijă prelungitorul din ambalaj.
- Inspecta: Check the power strip for any signs of damage. Do not use if damaged.
- Conectați la priza de perete: Plug the power strip directly into a properly grounded 240 Volt wall receptacle. Avoid using extension cords with the power strip.
- Connect Control Device: Plug your main device (e.g., TV, PC) into the designated Priză de control.
- Connect Switched Devices: Plug peripheral devices (e.g., DVD player, sound system, monitor, printer) into the Prize comutate. These devices will automatically turn on/off with your control device.
- Connect Always On Devices: Plug devices that require continuous power (e.g., modem, router, DVR) into the Always On Outlets.
- Set Threshold: Adjust the selectable switching threshold (10W/22W/42W) on the power strip to match the standby power consumption of your control device. This ensures accurate detection for automatic switching.
- Verificați indicatorii: Ensure the Ground and Surge Status LEDs are illuminated, indicating proper grounding and active surge protection.

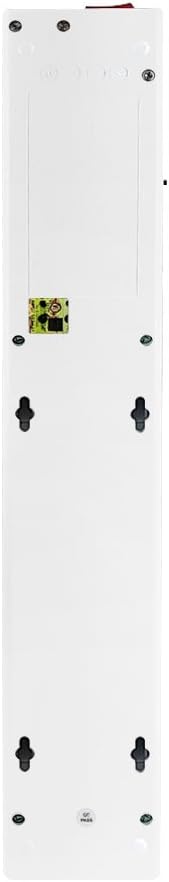

Figura 3: De jos view of the powerstrip, highlighting the safety screws and mounting holes for secure installation.
5. Instrucțiuni de utilizare
Once properly set up, operating the TrickleStar Advanced Powerstrip is straightforward:
- Comutare automată: When you turn ON your control device (e.g., TV or PC) plugged into the Control Outlet, the power strip will sense the power draw and automatically activate the Switched Outlets, turning on all connected peripheral devices.
- Economie de energie: When you turn OFF your control device, the power strip will detect the reduced power draw and automatically cut power to the Switched Outlets, eliminating standby power consumption from connected peripherals.
- Always On Outlets: Devices plugged into the Always On Outlets will receive continuous power regardless of the control device's status.
- Întrerupător de circuit: In case of an overload, the integrated circuit breaker will trip to protect your devices and the power strip. To reset, unplug some devices and press the circuit breaker button.
6. Întreținere
To ensure optimal performance and longevity of your TrickleStar Advanced Powerstrip:
- Inspecție regulată: Periodically inspect the power strip, cord, and plugs for any signs of wear, damage, or overheating.
- Curăţenie: Keep the power strip clean and free from dust and debris. Use a dry cloth for cleaning; never use liquids.
- Evitați obstrucțiile: Ensure the power strip is not covered or placed in a way that obstructs ventilation, which could lead to overheating.
- Stare de protecție la supratensiune: Monitor the Surge Status LED. If it is off, the surge protection has been consumed and the power strip should be replaced to ensure continued protection for your devices.
7. Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Switched Outlets do not turn on/off automatically. | Incorrect threshold setting; Control device not plugged in or not drawing enough power. | Adjust the threshold switch (High/Med/Low) to match your control device's standby power. Ensure the control device is properly plugged in and functioning. |
| No power to any outlets. | Circuit breaker tripped; Power strip unplugged; Wall outlet not functioning. | Press the circuit breaker reset button. Ensure the power strip is securely plugged into a live wall outlet. Test the wall outlet with another device. |
| Surge Status LED is off. | Surge protection has been consumed; No proper ground. | The power strip's surge protection capacity has been used up. Replace the power strip. Ensure the wall outlet is properly grounded. |
8. Specificații
- Număr de model: 180SS-US-7XX
- Producător: TrickleStar
- Total prize de curent: 7 (1 Control, 2 Always On, 4 Switched)
- Protecție la supratensiune: 2160 Jouli
- Voltage: 240 volți (AC)
- Format plug: Tip B
- Lungimea cablului: 4 ft
- Dimensiuni (L x l x H): 15 x 2.5 x 1.25 inci
- Greutatea articolului: 3.5 lire sterline
- Material: Plastic durabil casing with internal ceramic-encased components.
- Utilizare: Numai pentru utilizare în interior
9. Garanție și asistență
TrickleStar offers a Garanție pe viață on this product. Additionally, it includes a Connected Device Warranty of up to $20,000, providing peace of mind for your connected equipment. Unlike many manufacturers, TrickleStar does not require product registration for the warranty to be valid.
For further assistance or inquiries, please contact TrickleStar customer service:
- Telefon: 1-888-700-1098
- E-mail: customer.service@tricklestar.com
TrickleStar maintains comprehensive product liability insurance through Lloyd's of London, offering up to $8 million per occurrence, which is recognized as the most comprehensive product liability insurance coverage in the market.
