Introducere
This document serves as a comprehensive parts list for various Amada Press Brake models, specifically covering the RG-25 through RG-125 series. It provides essential information for identifying and ordering replacement parts, ensuring the continued operation and maintenance of your machinery. This manual is a quality-bound copy, originally published in February 1987, and contains over 140 pages of detailed parts information.
Applicable Models and Serial Ranges
This parts list applies to the following Amada Press Brake models, with parts information valid from the specified serial numbers:
- RG-25: Din seria nr. 255345
- RG-35S: Din seria nr. 353271
- RG-50S: Din seria nr. 505772
- RG-50: Din seria nr. 505772
- RG-80S: Din seria nr. 806872
- RG-80: Din seria nr. 806872
- RG-100S: Din seria nr. 103065
- RG-100: Din seria nr. 103065
- RG-100L: Din seria nr. 103065
- RG-125: Din seria nr. 01250822
Note: The RG-80S model is listed with the same serial number range as the RG-80. Please verify specific part applicability with your machine's serial number.
Instrucțiuni de comandă
When placing an order for replacement parts, it is crucial to provide accurate and complete information to ensure you receive the correct components. Please specify the following details:
- Model de mașină: The specific model of your Amada Press Brake (e.g., RG-35S).
- Număr de serie: The unique serial number of your machine (e.g., 363271).
- Unit Number: The assembly or sub-assembly unit number where the part belongs.
- Index Number: The specific index or item number of the part within the unit.
- Număr piese: The unique part identification number.
- Nume piese: The descriptive name of the part (e.g., O-ring, Pressure spring).
- Drawing Number or Type: Any associated drawing number or type reference for the part.
- Cantitate: The number of units of the part required.
Providing all these details will expedite your order and minimize errors.
Sample Parts List Entry
Mai jos este un example of how parts are typically listed within this manual, demonstrating the format for identifying specific components:
| Unitatea Nr. | Nr. Index | Piese nr. | Numele pieselor | Drawing No. or Type | Cant |
|---|---|---|---|---|---|
| 19 | 7 | 36147418 | inel O | 18P22 | 1 |
| 16 | 10 | 36132906 | Arc de presiune | 50.440153.1 | 1 |
This table illustrates how to cross-reference parts using the provided numbers and descriptions to accurately identify the required component.
Manual pesteview Imagine

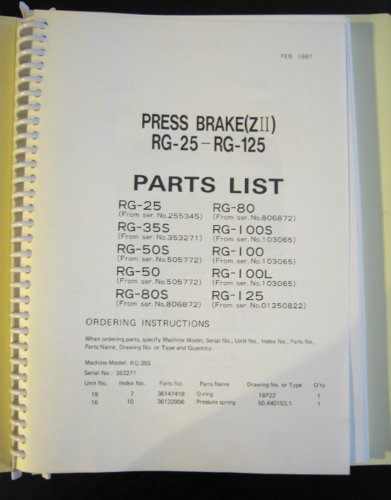

This image displays the cover page of the Amada Press Brake Parts List manual. The page prominently features the title 'PRESS BRAKE(ZII) RG-25 - RG-125 PARTS LIST'. Below the main title, a comprehensive list of applicable press brake models is provided, each with its corresponding starting serial number. These models include RG-25, RG-35S, RG-50S, RG-50, RG-80S, RG-80, RG-100S, RG-100, RG-100L, and RG-125. Further down, a section titled 'ORDERING INSTRUCTIONS' outlines the necessary information to provide when ordering parts, such as Machine Model, Serial No., Unit No., Index No., Parts Name, Drawing No., or Type and Quantity. A sample entry for ordering parts is also visible, detailing an O-ring and a Pressure spring.
Specificații manuale
Key specifications for this parts list manual are as follows:
- Editor: Amada
- Data publicarii: January 1, 1987 (Vintage February 1987 as per description)
- Limbă: engleză
- Greutatea articolului: Aproximativ 13 uncii
- Pagini: Over 140 pages
Informații despre garanție și asistență
This parts list manual focuses exclusively on providing detailed information for identifying and ordering replacement components for Amada Press Brake models. Information regarding product warranty, technical support contacts, or service procedures is not included within this specific document. For warranty claims, technical assistance, or service inquiries related to your Amada Press Brake machinery, please refer to your original equipment documentation or contact Amada directly through their official support channels.
