Campbell Hausfeld NS349099AV Clip Head Framing Nailer Kit User Manual

Introducere

This manual provides essential instructions for the safe and effective operation, setup, maintenance, and troubleshooting of your Campbell Hausfeld 3 1/2-inch Clipped Head Framing Air Nailer Kit, model NS349099AV. Please read this manual thoroughly before using the tool to ensure proper function and safety.

Campbell Hausfeld NS349099AV is designed for construction projects, offering features such as adjustable depth control, a removable non-marring tip, and a serrated metal nose for various nailing applications.

Informații de siguranță

Always prioritize safety when operating power tools. Failure to follow safety guidelines can result in serious injury. Keep this manual for future reference.

• Purtați protecție pentru ochi: Always wear ANSI-approved safety goggles or glasses with side shields.
• Purtați protecție auditivă: Folosiți dopuri de urechi sau căști antifonice pentru a vă proteja împotriva pierderii auzului indusă de zgomot.
• Purtați protecție pentru mâini: Use gloves to protect hands from splinters and accidental contact.
• Citiți toate instrucțiunile: Understand the tool's operation and potential hazards before use.
• Deconectați alimentarea cu aer: Deconectați întotdeauna alimentarea cu aer înainte de a efectua ajustări, a elimina blocaje sau a efectua lucrări de întreținere.
• Păstrați zona de lucru liberă: Asigurați-vă că zona de lucru este bine iluminată și fără dezordine.
• Securizarea piesei de lucru: Always secure the material being worked on to prevent movement.
• Never Point at Self or Others: Treat the nailer as a loaded firearm.
• Folosiți presiunea corectă a aerului: Do not exceed the maximum recommended air pressure for the tool.
• Inspectați unealta înainte de utilizare: Check for damaged parts, loose fasteners, or air leaks.

Conținutul pachetului

Campbell Hausfeld NS349099AV Clip Head Framing Nailer Kit includes the following items:

• Campbell Hausfeld 3 1/2-inch Clipped Head Framing Air Nailer
• 1/4-inch NPT Industrial-Style Plug
• 4 chei Allen
• Bottle of Nailer Oil
• High-Impact Carrying Case

Descrierea imaginii: The image displays the complete Campbell Hausfeld NS349099AV Clip Head Framing Nailer Kit. It features the blue and black air nailer, a black high-impact carrying case, a 1/4-inch NPT industrial-style plug, four Allen wrenches, and a bottle of nailer oil. All components are neatly arranged, showcasing the full kit.

Înființat

1. Conectați alimentarea cu aer:

   Ensure your air compressor is off and depressurized. Attach the 1/4-inch NPT industrial-style plug to the nailer's air inlet. Connect an air hose from your compressor to the plug. Set your compressor to the recommended operating pressure (refer to the nailer's label or full product specifications for exact range, typically 70-120 PSI).

2. Load Nails:

   With the air supply disconnected, open the nail magazine. Insert a strip of clipped head framing nails of the appropriate size (up to 3 1/2 inches) into the magazine. Ensure the nails are correctly oriented and slide smoothly. Close the magazine securely.
3. Reglarea controlului adâncimii:

   The nailer features an adjustable depth control mechanism. Use this to alter the depth at which nails are driven into various types of wood and engineered lumber. Test on a scrap piece of material to achieve the desired nail depth before beginning your project.

4. Adjust Exhaust Direction:

   The exhaust port can be adjusted to direct air away from the user or the work surface. Rotate the exhaust cap to the desired position for comfort and to prevent debris from blowing into your face.

Instrucțiuni de operare

Once the nailer is set up and connected to the air supply, follow these steps for operation:

1. Pregătirea piesei de lucru:

   Ensure the material you are nailing is stable and properly supported. Mark your nailing points if necessary.

2. Position the Nailer:

   Place the nose of the nailer firmly against the workpiece at the desired nailing location. Ensure the nailer is held perpendicular to the surface for straight nail entry.



   Descrierea imaginii: This image shows two people working on a construction project outdoors. One person is kneeling, using the blue Campbell Hausfeld framing nailer to secure wooden beams, while the other person holds a wooden frame in place. The scene illustrates the nailer in active use for framing tasks.

3. Actuate the Trigger:

   Depending on your nailer's trigger mechanism (contact trip or sequential trip), either press the nose against the workpiece and then pull the trigger, or pull the trigger and then press the nose against the workpiece. Refer to your specific model's trigger type for correct operation. A nail will be driven into the material.



   Descrierea imaginii: A man wearing safety glasses and gloves is shown using the Campbell Hausfeld framing nailer. He is holding the blue nailer firmly against a vertical wooden stud, preparing to drive a nail. The image highlights the precise application of the tool during framing work.
4. Utilizing the Non-Marring Tip:

   For delicate surfaces or finished wood, attach the removable non-marring tip to the nose of the nailer. This prevents impressions or damage to the material.

5. Utilizing the Serrated Metal Nose:

   For aggressive toe nailing or when extra grip is needed on the workpiece, the serrated metal nose provides enhanced stability. Ensure the non-marring tip is removed for this application.

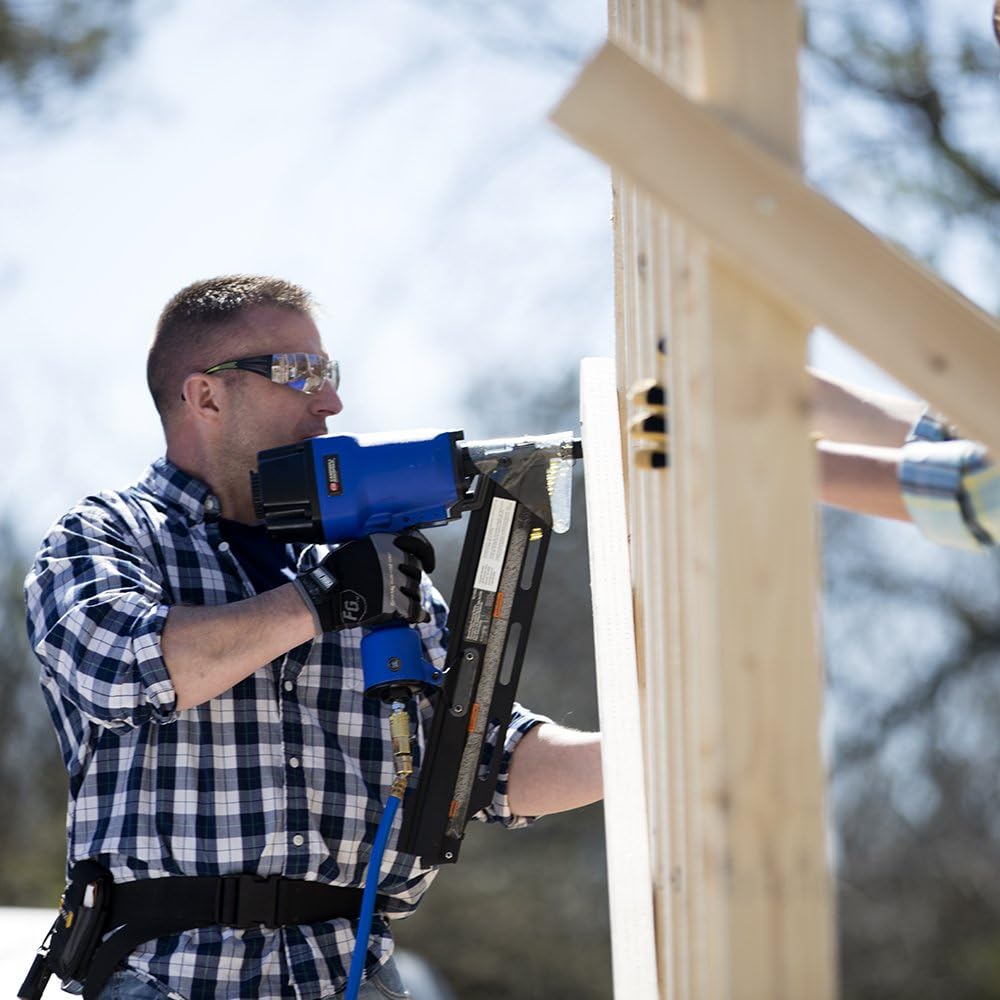

   Descrierea imaginii: This image captures a man in safety glasses and gloves actively using the Campbell Hausfeld framing nailer. He is driving nails into a wooden structure, demonstrating the tool's application in building and construction. The focus is on the user's interaction with the nailer and the workpiece.

Întreţinere

Întreținerea regulată asigură longevitatea și performanța optimă a pistolului dumneavoastră de cuie pentru rame.

• Daily Oiling:

  Before each use, apply a few drops of the included nailer oil into the air inlet. This lubricates internal components and prevents wear. Do not over-oil.
• Curățați unealta:

  Regularly clean the exterior of the nailer with a dry cloth. Remove any sawdust or debris from the magazine and nosepiece. Ensure the air filter (if present) is clean and free of obstructions.

• Verificați uzura:

  Periodically inspect the nailer for signs of wear, damage, or loose fasteners. Pay attention to the trigger, safety mechanism, and air hose connections. Replace worn or damaged parts immediately.

• Depozitați corect:

  When not in use, disconnect the air supply and store the nailer in its high-impact carrying case in a clean, dry environment, away from extreme temperatures.

Depanare

Această secțiune abordează problemele frecvente pe care le-ați putea întâmpina cu pistolul dumneavoastră de cuie pentru rame.

If you encounter issues not covered here, or if problems persist, contact Campbell Hausfeld customer support or a qualified service technician.

Specificații

Notă: Specificațiile pot fi modificate fără notificare prealabilă. Consultați întotdeauna eticheta produsului pentru cele mai precise informații.

Informații despre garanție

Specific warranty details for the Campbell Hausfeld NS349099AV Clip Head Framing Nailer Kit are typically provided with the product packaging or available on the manufacturer's official website. Vă rugăm să păstrați dovada achiziției pentru reclamații în garanție.

For detailed warranty terms and conditions, please visit the official Campclopot Hausfeld website-ul sau contactați departamentul de servicii pentru clienți.

Sprijin

For technical assistance, replacement parts, or further inquiries regarding your Campbell Hausfeld NS349099AV Framing Nailer, please contact Campbell Hausfeld customer support.

• Producător: Campclopot Hausfeld
• Website: www.campbellhausfeld.com
• Informații de contact: Consultați instrucțiunile producătorului website or product packaging for current contact details, including phone numbers and email addresses.
