1. Introducere
This manual provides essential information for the proper installation, operation, and maintenance of your Pyle PDMR5 5-inch Mid-Bass Mid-Range Woofer Driver. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of the product.
The Pyle PDMR5 is a high-performance 5-inch speaker driver designed for mid-bass and mid-range audio reproduction. It features a 5-inch paper coating cone, a 1-inch high-temperature aluminum voice coil, and an 8-ohm impedance, delivering 100 Watts RMS and 200 Watts Peak power with a frequency response of 450Hz - 7kHz and 92dB sensitivity. Its sealed back design contributes to its performance characteristics.
2. Caracteristicile produsului
- Tip difuzor: 5-inch Mid-Bass Mid-Range Woofer Driver
- Manevrarea puterii: 100 de wați RMS / 200 de wați de vârf
- Material conului: 5-inch Paper Coating Cone
- Bobina vocală: 1-inch High Temperature Aluminum Voice Coil
- Structura magnetică: 15 oz
- Sensibilitate: 92dB (1w / 1m)
- Raspuns in frecventa: 450Hz - 7kHz
- Impedanta: 8 ohmi
- Proiecta: Sealed Back
3. Configurare și instalare
Proper installation is crucial for the performance and safety of your speaker driver. It is recommended to have installation performed by a qualified professional if you are unfamiliar with car audio wiring.
3.1 Despachetarea
Carefully remove the speaker driver from its packaging. Inspect for any signs of damage during transit. Retain all packaging materials for future transport or service needs.
Image: The Pyle PDMR5 speaker driver shown next to its product packaging, indicating what is typically included in the box.
3.2 Considerații privind montarea
- Locaţie: Choose a mounting location that provides adequate space for the speaker's depth and allows for proper sound dispersion. Ensure the location is free from obstructions and moisture.
- Diametrul decupajului: The minimum cutout diameter required is approximately 110mm (4.33 inches).
- Adâncime de montare: The mounting depth is 2 inches. Verify that there is sufficient clearance behind the mounting surface.
- Diametrul total: The overall diameter of the speaker is 5.15 inches.

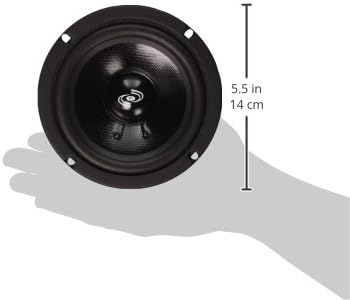

Image: A hand holding the Pyle PDMR5 speaker driver, with a ruler indicating its 5.5-inch dimension, demonstrating its physical size.
Image: A Pyle PDMR5 speaker driver being held up to a car door panel, illustrating a typical installation scenario for a 5-inch speaker.
3.3 Conexiuni de cablare
The PDMR5 features an 8-ohm impedance. Connect the speaker to your amplifier or crossover network using appropriate gauge speaker wire. Ensure correct polarity (+ to + and - to -) to avoid phase issues that can degrade sound quality.
Imagine: Partea din spate view of the Pyle PDMR5 speaker driver, clearly showing the positive and negative terminals for wiring connections.
Image: A detailed close-up of the wiring terminals on the back of the Pyle PDMR5 speaker driver, highlighting the connection points.
4. Instrucțiuni de utilizare
Once installed, the PDMR5 speaker driver is ready for operation. Follow these guidelines for optimal performance:
- AmpPotrivire lifier: Asigurați-vă amplifier's power output is within the recommended range for the PDMR5 (100W RMS, 200W Peak). Overpowering can lead to damage.
- Setări crossover: As a mid-bass/mid-range driver, the PDMR5 is designed to operate within a frequency range of 450Hz - 7kHz. Use an external crossover or your amplifier's built-in crossover to filter out frequencies outside this range. This protects the speaker from low-frequency damage and high-frequency distortion.
- Controlul volumului: Gradually increase the volume to assess sound quality and prevent sudden overloads. Avoid prolonged listening at excessively high volumes to prevent speaker damage and hearing loss.
- Perioada de rodare: New speakers may benefit from a break-in period of several hours of moderate use. This allows the cone and surround materials to loosen up, potentially improving sound quality.
Image: The Pyle PDMR5 speaker driver displayed alongside an amplifier and other car audio components, illustrating a complete audio system setup.
5. Întreținere
The Pyle PDMR5 speaker driver requires minimal maintenance to ensure long-term performance.
- curatenie: Use a soft, dry cloth to gently wipe the cone and surround. Avoid using harsh chemicals or excessive moisture, which can damage the speaker materials.
- Protecţie: If installed in an exposed area, consider using a speaker grille (not included with this model) to protect the cone from physical damage.
- Factori de mediu: Avoid exposing the speaker to extreme temperatures, direct sunlight for prolonged periods, or high humidity, as these can degrade materials over time.
6. Depanare
If you encounter issues with your PDMR5 speaker driver, refer to the following common troubleshooting steps:
- Fără sunet:
- Verificați toate conexiunile cablurilor de la ampconectați un limitator la difuzor pentru un contact sigur și o polaritate corectă.
- Verificați că ampLifierul este pornit și funcționează corect.
- Ensure the audio source is playing and properly connected.
- Sunet distorsionat:
- Reduceți nivelul volumului. Distorsiunea apare adesea atunci când ampAmplificatorul sau difuzorul este suprasolicitat.
- Check crossover settings. Incorrect crossover points can cause distortion, especially if the speaker is receiving frequencies outside its optimal range.
- Inspectați conul și sunetul surround al difuzorului pentru a depista eventuale deteriorări fizice.
- Asigurați amplifier's gain settings are not set too high, leading to clipping.
- Weak or Uneven Sound:
- Check speaker polarity. Incorrect wiring (e.g., one speaker wired out of phase) can cause cancellation and weak bass.
- Verify that the speaker is securely mounted and not vibrating against other surfaces.
If problems persist after following these steps, consult a qualified car audio technician.
7. Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Numele modelului | PDMR5 |
| Tip difuzor | Woofer (Mid-Bass Mid-Range) |
| Dimensiunea difuzorului | 5 inchi |
| Manevrarea puterii (RMS) | 100 wați |
| Manevrarea puterii (vârf) | 200 wați |
| Impedanta | 8 ohmi |
| Raspuns in frecventa | 450Hz - 7kHz |
| Sensibilitate | 92dB (1w / 1m) |
| Structura magnetică | 15 oz |
| Bobina vocală | 1-inch High Temperature Aluminum |
| Adâncimea de montare | 2 inchi |
| Minimum Cutout Diameter | 110 mm (aproximativ 4.33 inci) |
| Diametrul total | 5.15 inchi |
| Dimensiuni produs (D x L x H) | 2.64" D x 5.2" L x 5.2" H |
| Greutatea articolului | 1.92 lire sterline |
| Tehnologia de conectivitate | Cablat |
| Culoare | Negru |

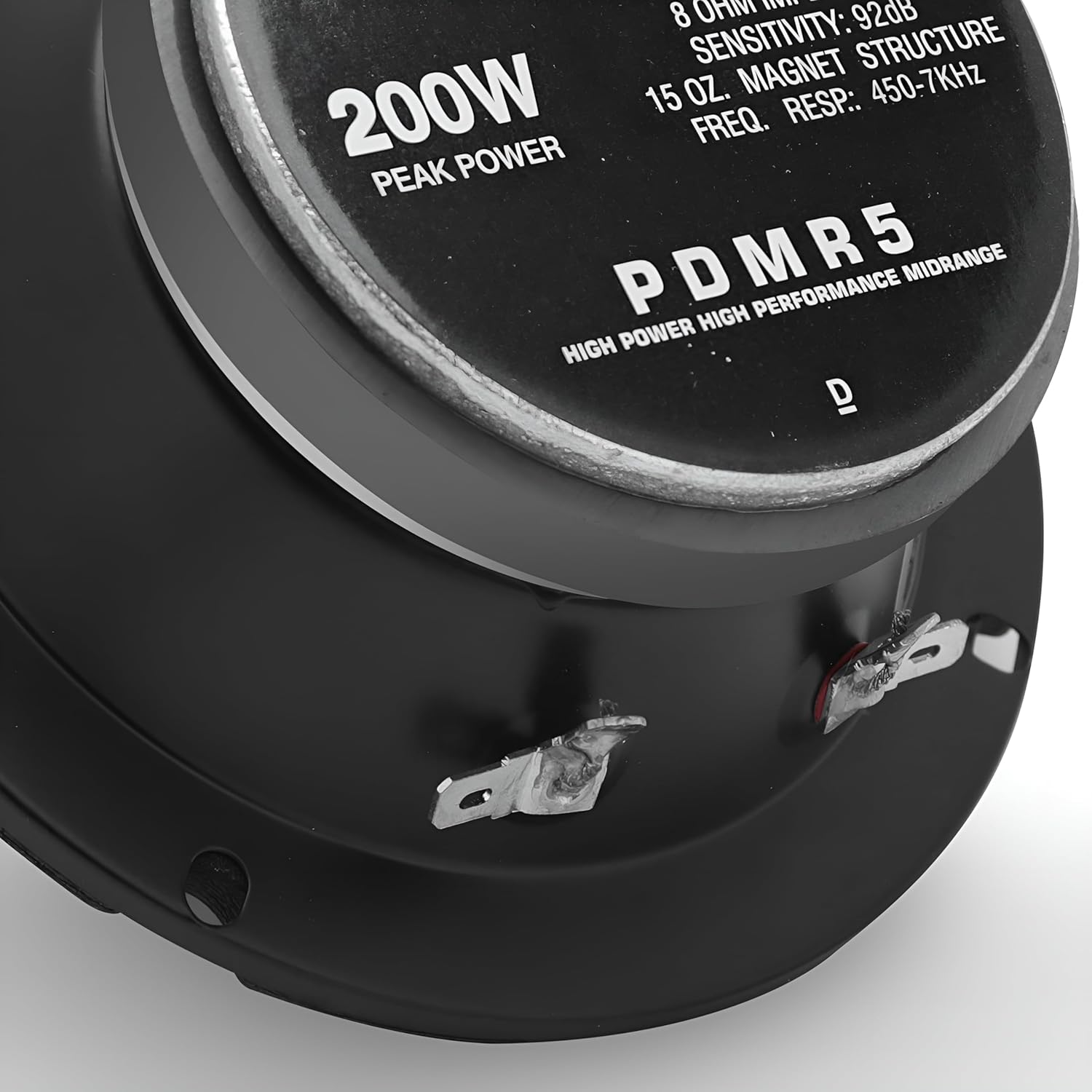

Image: The rear of the Pyle PDMR5 speaker driver, showing key specifications like impedance, sensitivity, magnet structure, and frequency response printed on the magnet cover.
8. Informații despre garanție
Acest produs Pyle vine cu un Garanție limitată. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or contact Pyle customer support. Keep your proof of purchase for warranty claims.
9. Asistență pentru clienți
For technical assistance, service, or further information regarding your Pyle PDMR5 speaker driver, please visit the official Pyle website or contact their customer support department. Contact information can typically be found on the product packaging or the Pyle website-ul.
Website: www.pyleusa.com
