1. Produs terminatview
The Milton Air Manifold Model S-685-6 is designed to efficiently distribute compressed air from a single source to multiple air tools. It features one 3/8-inch Female National Pipe Thread (FNPT) inlet and three 1/4-inch FNPT outlets, allowing simultaneous operation of up to three air tools. Constructed from durable aluminum, this manifold is built for reliability and ease of use in various pneumatic applications.

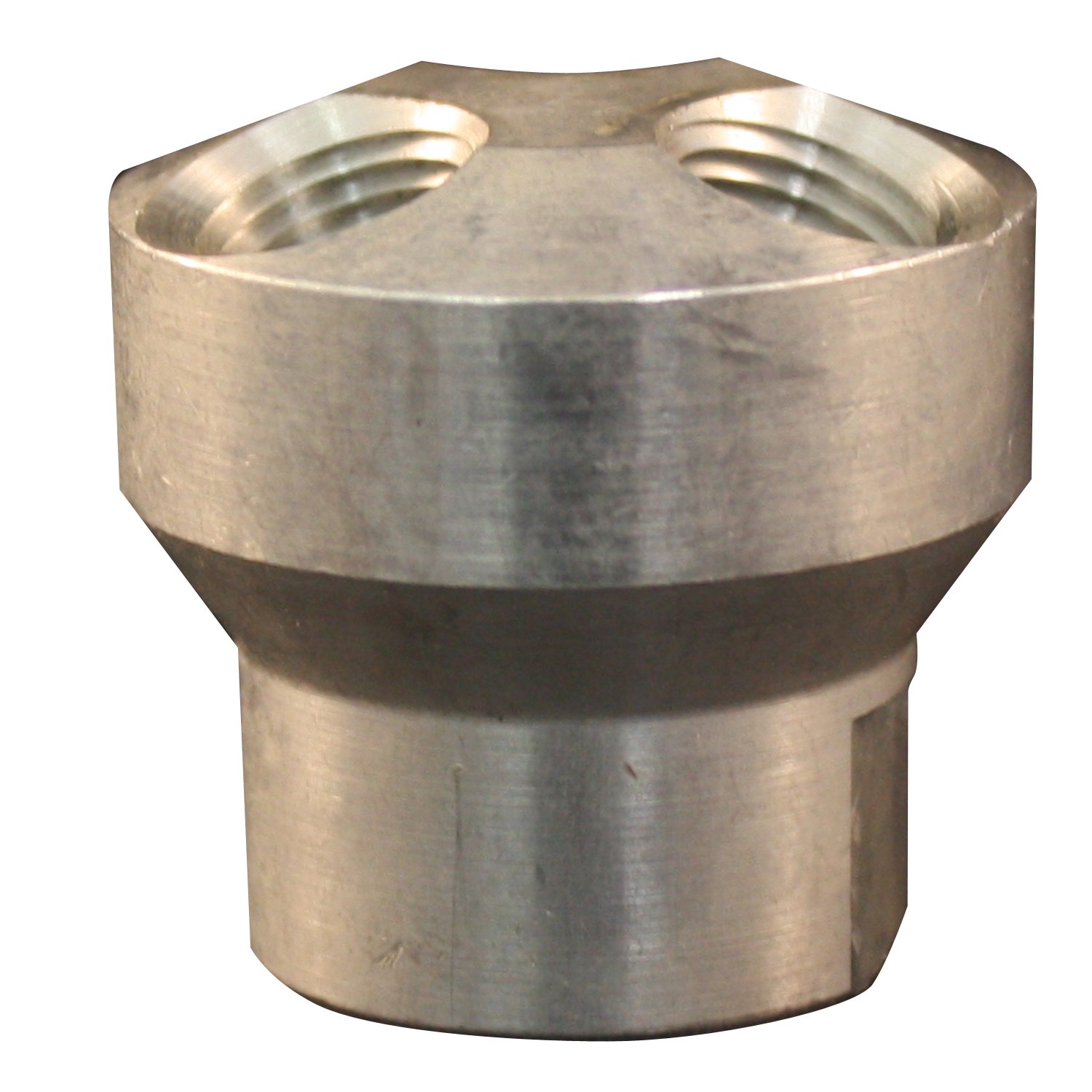

Figura 1: Milton Air Manifold Model S-685-6. This image displays the compact aluminum manifold with its distinct inlet and three outlet ports, ready for connection to air lines and tools.
2. Informații de siguranță
Read and understand all instructions and safety warnings before operating this product. Failure to follow these instructions may result in property damage, personal injury, or death.
- Protecția ochilor: Always wear ANSI-approved safety goggles or safety glasses with side shields when working with compressed air.
- Protecția auzului: Use hearing protection when operating air tools, as noise levels can be damaging.
- Limite de presiune: Do not exceed the maximum operating pressure of 300 PSI for this manifold. Ensure all connected components (hoses, tools, fittings) are rated for the operating pressure.
- Inspectați înainte de utilizare: Before each use, inspect the manifold and all connections for damage, wear, or leaks. Do not use damaged equipment.
- Conexiuni sigure: Ensure all connections are tight and properly sealed to prevent air leaks and potential hazards.
- Deconectați alimentarea cu aer: Always disconnect the air supply before performing maintenance, making adjustments, or changing tools.
- Copii și martori: Țineți copiii și trecătorii departe de zona de lucru.
3. Conținutul pachetului
Verificați dacă toate articolele sunt prezente la deschiderea pachetului:
- Milton Air Manifold (Model S-685-6) - 1 Unit
4. Instrucțiuni de configurare
Follow these steps to properly set up your Milton Air Manifold:
- Pregătiți conexiunile: Ensure all threads on your air compressor hose and air tool hoses are clean and free of debris.
- Aplicați etanșant pentru filete: Apply an appropriate thread sealant (e.g., PTFE tape or pipe dope) to the male threads of your air compressor hose fitting and air tool fittings. This helps create an airtight seal and prevents leaks.
- Connect Inlet: Thread the fitting from your air compressor hose into the 3/8-inch FNPT inlet port of the manifold. Tighten securely with a wrench, but do not overtighten, which can damage the threads.
- Connect Outlets: Thread the fittings from your air tools or air hoses into the three 1/4-inch FNPT outlet ports of the manifold. Tighten securely.
- Verificați pentru scurgeri: Before operating, turn on the air compressor and pressurize the system. Apply a soapy water solution to all connections. Bubbles indicate a leak, which must be tightened or re-sealed before use.
5. Instrucțiuni de utilizare
Once the manifold is properly installed and leak-checked, it is ready for operation:
- Conectați sculele pneumatice: Attach your air tools to the quick-connect couplers (if used) on the 1/4-inch outlet hoses.
- Regulate Pressure: Ensure your air compressor's regulator is set to the appropriate pressure for the air tools being used, and that this pressure does not exceed the manifold's maximum rating of 300 PSI.
- Utilizare simultană: The manifold allows for the simultaneous use of up to three air tools, provided your air compressor can supply sufficient airflow (CFM) for all tools operating concurrently.
- Disconnecting Tools: When finished, turn off the air supply from the compressor, bleed any remaining pressure from the system, and then disconnect air tools.
6. Întreținere
Regular maintenance ensures the longevity and safe operation of your air manifold:
- Inspectie periodica: Regularly inspect the manifold for any signs of damage, cracks, corrosion, or excessive wear.
- Verificați dacă există scurgeri: Periodically check all connections for air leaks using a soapy water solution. Tighten or re-seal any leaking connections.
- Curăţenie: Keep the manifold clean and free of dirt, dust, and debris. Use a clean cloth to wipe down the exterior.
- Depozitare: Store the manifold in a clean, dry environment when not in use.
7. Depanare
Consultați tabelul următor pentru problemele comune și soluțiile acestora:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Scurgeri de aer din conexiuni | Conexiuni slăbite, etanșant filetat insuficient, filete deteriorate. | Tighten connections. Apply fresh thread sealant (PTFE tape or pipe dope) to male threads. Inspect threads for damage; replace if necessary. |
| Low airflow to tools | Air compressor not supplying enough CFM, restrictions in air lines, manifold not fully open (if applicable, though this model is fixed). | Ensure air compressor is adequately sized for all tools. Check air lines for kinks or blockages. Verify compressor pressure setting. |
| Manifold appears damaged | Physical impact, excessive pressure. | Immediately discontinue use. Replace the manifold. Do not attempt to repair damaged pressure-bearing components. |
8. Specificații
| Numărul de model | S-685-6 |
| Dimensiunea admisiei | 3/8" FNPT |
| Dimensiunea de ieșire | Three 1/4" FNPT |
| Presiune maximă | 300 PSI |
| Material | Aluminiu |
| Finisaj exterior | Brass (likely referring to fittings, manifold itself is aluminum) |
| Dimensiuni (L x l x H) | 5.5 x 3.75 x 2 inci |
| Greutatea articolului | 0.15 lire sterline |
| Producător | Milton Industries |
| UPC | 030937068569 |
9. Garanție și asistență
This Milton Air Manifold (Model S-685-6) is covered by a Garanție limitată a producătorului de 1 ani. Această garanție acoperă defectele de materiale și de manoperă în condiții normale de utilizare.
For warranty claims, technical assistance, or product support, please contact Milton Industries directly through their official website or customer service channels. Please have your model number (S-685-6) and proof of purchase available when contacting support.
Nota: The warranty does not cover damage resulting from misuse, abuse, unauthorized modifications, or normal wear and tear.
