Aoxun 12' x 20' Wood Gazebo with Double Polycarbonate Roof - Instruction Manual

1. Introducere

Thank you for choosing the Aoxun 12' x 20' Wood Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Caracteristicile produsului:

• Robust Cedar Wood Frame: Features 4"x4" thick cedar posts for enhanced stability and durability.
• Double Polycarbonate Roof: Designed for improved air ventilation, cooling, and rapid drainage of rain and snow.
• All-Weather Resistance: Engineered to withstand significant snow loads (up to 15 inches) and wind speeds (47-57 mph when secured).
• Design spațios: Oferă ample space for outdoor gatherings and relaxation.
• Cârlige integrate: Equipped with sturdy ceiling hooks capable of supporting up to 44 lbs for lights, fans, or decorations.

Informații de siguranță:

Always assemble this gazebo on a flat, stable surface. Secure the gazebo to the ground using the provided hardware to prevent tipping. Do not leave children unattended near the gazebo. This gazebo is not intended for use by children without adult supervision. Consult local building codes and regulations before installation. Do not attempt to disassemble or move the gazebo during windy or wet conditions. Always follow the manufacturer's instructions for assembly, use, and maintenance.

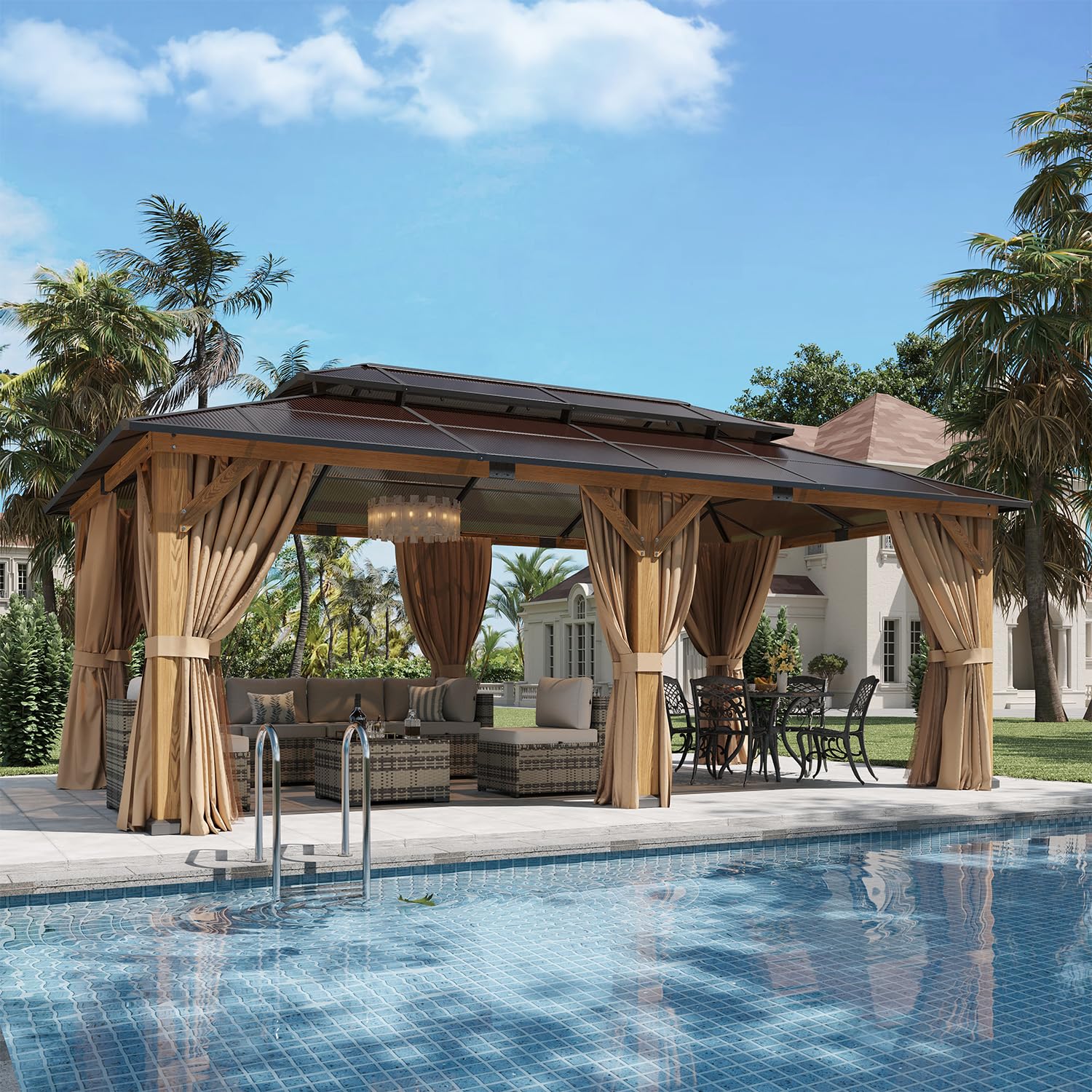

Figure 1.1: Aoxun 12' x 20' Wood Gazebo with Double Polycarbonate Roof.

2. Componente pesteview

Your Aoxun gazebo includes a variety of parts necessary for its structure and functionality. A detailed list of all components, including hardware, can be found in the official PDF instruction manual provided with your product. Please ensure all parts are present and undamaged before beginning assembly.

Key Structural Elements:

• Cedar Wood Posts and Beams: Form the primary support structure.
• Polycarbonate Roof Panels: Provide overhead protection and ventilation.
• Perdele și plasă: Offer privacy and insect protection.
• Hardware de montare: Pentru fixarea foișorului la sol.

Figure 2.1: Detail of the high-quality cedar wood frame structure, providing strength and stability.

Figure 2.2: Illustration of the wider and larger cedar wood columns used in Aoxun gazebos for enhanced stability.

3. Configurare și asamblare

Assembly of the Aoxun gazebo requires careful attention to detail and is best performed by 2-4 individuals. Refer to the comprehensive PDF instruction manual for step-by-step diagrams and specific hardware identification. Ensure you have adequate space and all necessary tools before starting.

Etapele Adunării Generale:

1. Pregatirea site-ului: Choose a flat, level, and stable surface for installation. Clear any debris or obstacles.
2. Ansamblu cadru: Connect the cedar wood posts and beams according to the provided diagrams, ensuring all connections are secure.
3. Instalarea acoperișului: Carefully attach the polycarbonate roof panels. Ensure proper alignment for effective drainage and weather resistance.
4. Curtain and Netting Attachment: Install the privacy curtains and mosquito netting using the designated tracks and hooks.
5. Ancorare la sol: Secure the gazebo to the ground using the provided expansion bolts or anchoring stakes. This is crucial for stability, especially in windy conditions.

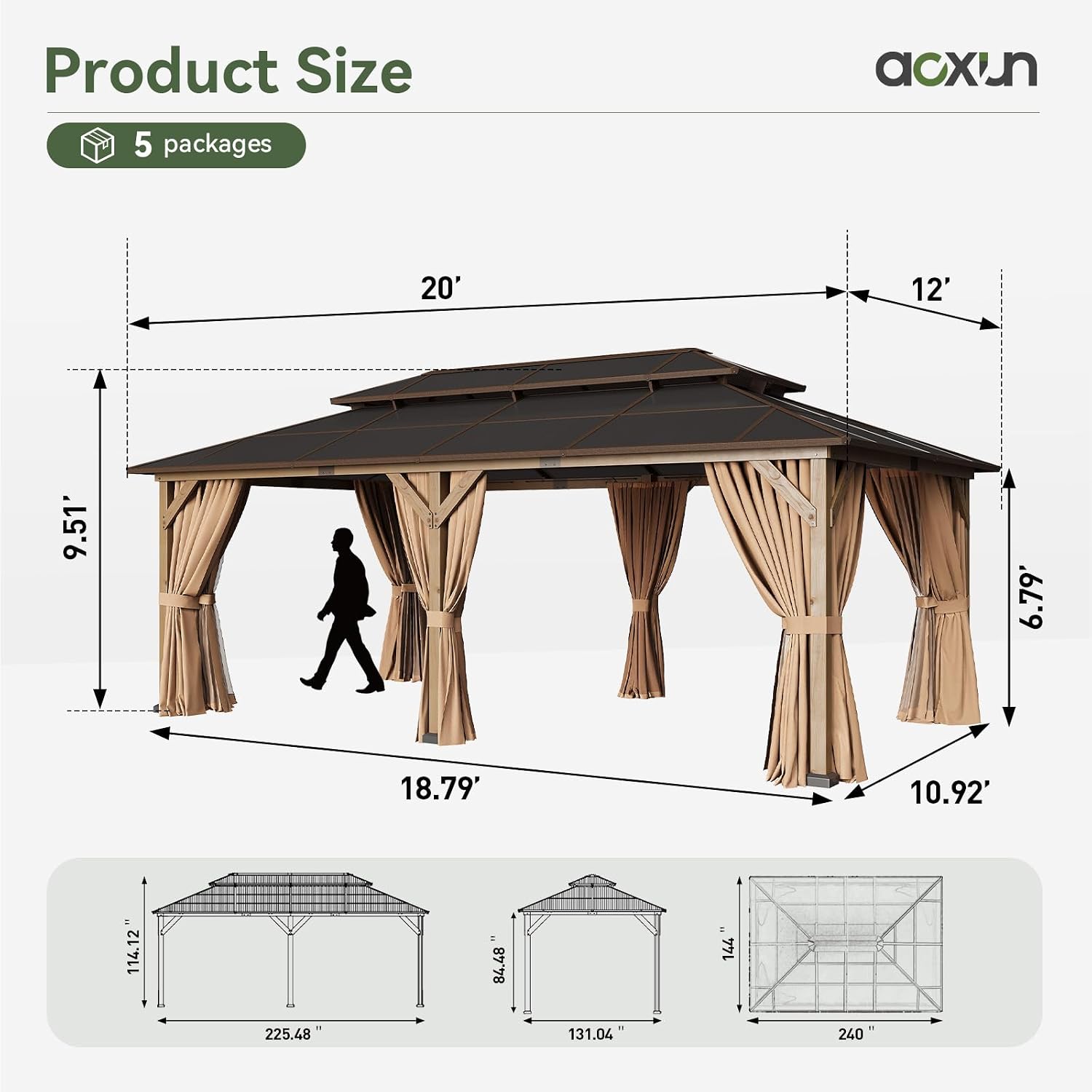

Figure 3.1: Product dimensions for planning your installation space.

Figure 3.2: Wind resistance capabilities based on different anchoring methods.

4. Funcționarea foișorului

Once assembled, your Aoxun gazebo provides a versatile outdoor space. Understanding its features will enhance your experience.

Roof System:

The double polycarbonate roof is designed for optimal air circulation, helping to keep the interior cool. Its sloped design facilitates efficient water drainage, preventing accumulation during rain or snowmelt.

Figure 4.1: The double polycarbonate roof design promotes ventilation and offers UV protection.

Figure 4.2: The sloped roof design ensures efficient drainage of rainwater and melted snow.

Perdele și plasă:

Utilize the integrated curtains for privacy and sun protection. The mosquito netting can be deployed to keep insects out, ensuring a comfortable environment. Secure curtains with the provided Velcro straps when not in use.

Figure 4.3: Features for privacy, sun shade, and insect protection.

Cârlige de tavan:

The gazebo includes ceiling hooks with a maximum load capacity of 44 lbs. These are suitable for hanging outdoor lights, fans, or decorative items. Ensure items do not exceed the weight limit.

Figure 4.4: Multi-purpose hooks for hanging accessories.

5. Întreținere

Regular maintenance will prolong the life and appearance of your Aoxun gazebo.

curatenie:

• Cadru: Clean the cedar wood frame with a mild soap solution and a soft cloth. Rinse thoroughly and allow to air dry. Avoid harsh chemicals that may damage the wood finish.
• Panouri de acoperiș: Wipe polycarbonate panels with a soft cloth and mild soapy water. Do not use abrasive cleaners or brushes, as these can scratch the surface.
• Curtains/Netting: Follow care instructions on the fabric labels. Typically, these can be spot cleaned or gently hand washed. Ensure they are completely dry before storing to prevent mildew.

Îngrijire sezonieră:

• Iarnă: While the roof is designed for snow load, it is advisable to regularly clear heavy snow accumulation to prevent excessive stress on the structure. Remove curtains and netting for storage during harsh winter months.
• Inspecţie: Periodically check all bolts and connections to ensure they remain tight. Inspect the wood for any signs of wear or damage and address them promptly.

Figure 5.1: The gazebo is designed for various weather conditions, but proper maintenance is key.

6. Depanare

Această secțiune abordează problemele frecvente pe care le-ați putea întâmpina cu foișorul dumneavoastră.

Dacă întâmpinați probleme care nu sunt enumerate aici sau aveți nevoie de asistență suplimentară, vă rugăm să contactați serviciul de asistență pentru clienți.

7. Specificații

Detailed technical specifications for the Aoxun 12' x 20' Wood Gazebo (Model G30076-2012BW).

8. Garanție și asistență

Informații despre garanție:

For specific warranty details regarding your Aoxun gazebo, please refer to the documentation included with your purchase or contact Aoxun customer service directly. Warranties typically cover manufacturing defects under normal use conditions.

Asistență clienți:

Should you have any questions, require replacement parts, or need assistance with assembly or troubleshooting, please contact Aoxun customer support. Contact information can usually be found on the product packaging, the official PDF manual, or the Aoxun brand website-ul.

We are committed to providing considerate after-sales service to ensure your satisfaction.
