Serenophile Smart Thermostat SDM6 User Manual

Introducere

This manual provides essential instructions for the installation, operation, and maintenance of your Serenophile Smart Thermostat. This device is designed to control various heating systems, including electric floor heating, gas boilers, and water heating systems, offering smart temperature management through Wi-Fi connectivity. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

Figure 1: The thermostat is compatible with water, electric, and wall-mounted boiler heating systems.

Caracteristicile produsului

• Compatibilitate cu controlul vocal: Seamlessly integrates with voice platforms such as Alexa and Google Assistant for hands-free temperature adjustments.
• Telecomandă prin aplicație: Manage your heating system from anywhere using the Tuya Smart app on your smartphone.
• Clear Display and Modern Design: Features an elegant touch interface (86 x 86 x 41 mm) with intuitive temperature readings, available in white or grey finishes.
• Integrated Safety Terminal: Equipped with a dedicated protection terminal to prevent electrical hazards and ensure safe operation.
• Economie de energie: Intelligent control helps reduce annual heating or cooling costs by up to 23% while maintaining desired comfort levels.

Înființat

1. Instalare

Installation of the thermostat should be performed by a qualified electrician to ensure safety and proper functionality. Ensure the main power supply is turned off before beginning any wiring work.

2. Cablare

The thermostat is available in two versions: 3A for gas boiler/water heating systems and 16A for electric floor heating systems. Refer to the wiring diagram provided with your specific model for correct connections. Ensure all connections are secure and properly insulated.

3. App Connection (Tuya Smart)

1. Download the "Tuya Smart" app from your mobile device's app store (iOS or Android).
2. Înregistrează-te sau conectează-te la contul tău Tuya Smart.
3. Porniți termostatul.
4. Follow the in-app instructions to add a new device. This typically involves putting the thermostat into pairing mode (refer to the thermostat's display for pairing indicators) and connecting it to your home Wi-Fi network.
5. Once connected, you can control the thermostat remotely via the app.

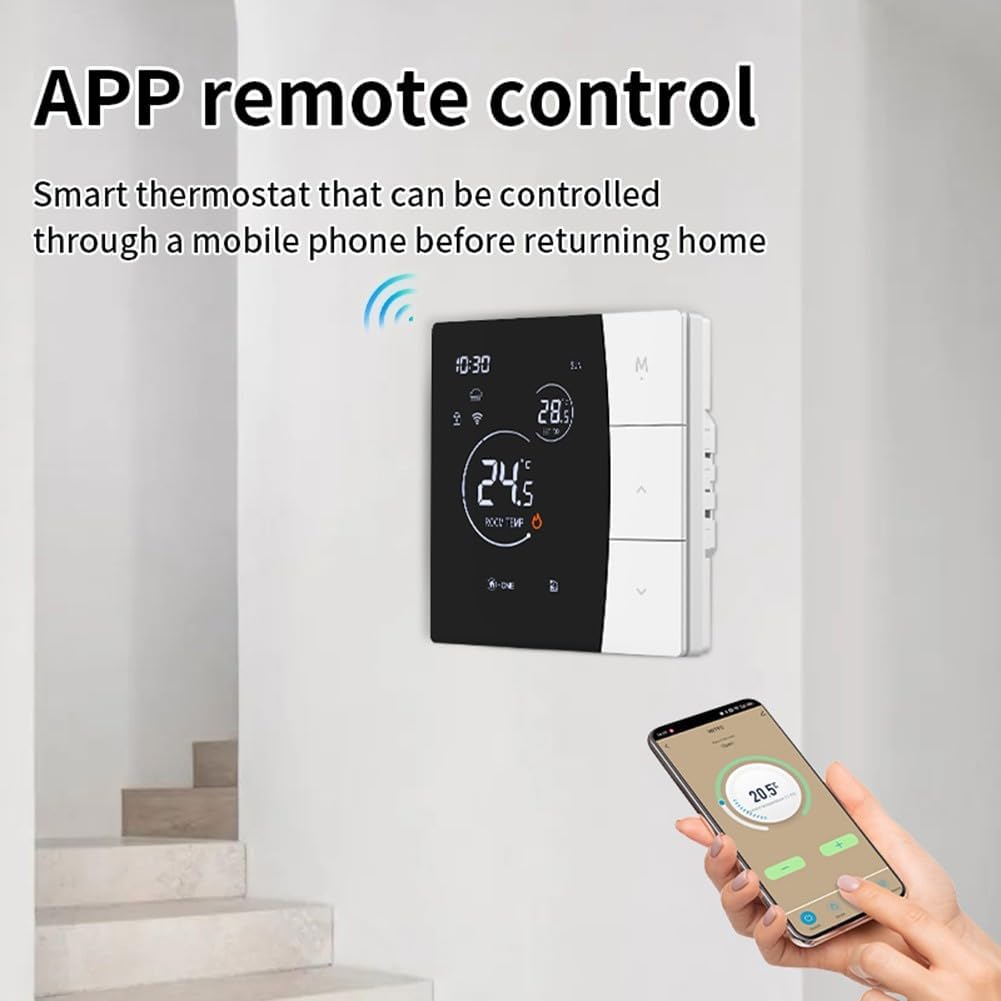

Figure 2: Remote control of the thermostat via the Tuya Smart app on a mobile phone.

Instrucțiuni de operare

1. Operare de bază

The thermostat features a touch-sensitive display. Use the up and down arrows on the right side of the unit to adjust the target temperature. The 'M' button typically cycles through different modes (e.g., manual, automatic, holiday). Refer to the on-screen icons for current status, such as Wi-Fi connectivity, lock status, and heating activity.

Figura 3: Față view of the thermostat display showing current settings and status.

2. Control vocal

Once connected to Alexa or Google Assistant through the Tuya Smart app, you can use voice commands to control your thermostat. Exampfișierele includ:

• „Alexa, setează [Nume termostat] la 22 de grade.”
• "Hey Google, what is the temperature in [Thermostat Name]?"
• „Alexa, pornește [Nume termostat].”

3. Telecomanda

The Tuya Smart app allows you to:

• Adjust the temperature from anywhere.
• Set heating schedules and timers.
• Monitorizați temperatura actuală a camerei.
• Schimbați modurile de funcționare.

Întreţinere

Pentru a asigura performanța optimă și durata de viață a termostatului:

• curatenie: Ștergeți ecranul și casinȘtergeți cu o cârpă moale și uscată. Nu utilizați substanțe de curățare abrazive sau solvenți.
• Evitați obstacolele: Ensure the thermostat is not covered by furniture, curtains, or other objects that could interfere with accurate temperature sensing.
• Verificări regulate: Periodically check wiring connections for any signs of wear or damage.

Depanare

• Fără putere: Verificați întrerupătorul și asigurați-vă că toate conexiunile cablurilor sunt sigure.
• Citire incorectă a temperaturii: Asigurați-vă că termostatul nu este expus la lumina directă a soarelui, curenților de aer sau surselor de căldură care ar putea afecta senzorul său.
• Deconectare Wi-Fi: Verify your home Wi-Fi network is active and the signal strength is adequate. Re-pair the device with the Tuya Smart app if necessary.
• Încălzirea nu se activează: Check the thermostat's mode settings and target temperature. Ensure it is set to a temperature higher than the current room temperature in heating mode.

Specificații

Informații de siguranță

• Deconectați întotdeauna alimentarea cu energie electrică înainte de instalarea sau service-ul termostatului.
• Nu expuneți termostatul la apă sau umiditate excesivă.
• A nu se lăsa la îndemâna copiilor.
• Ensure proper grounding and adhere to all local electrical codes.

Garanție și suport

For warranty information or technical support, please refer to the documentation included in your product packaging or contact Serenophile customer service directly. Keep your purchase receipt as proof of purchase.
