Hivento Mechanical Keyboard User Manual

1. Introducere

Thank you for choosing the Hivento Mechanical Keyboard. This keyboard is designed to provide a versatile and immersive experience for work, study, and gaming. It features triple-mode connectivity, customizable RGB backlighting, hot-swappable switches, durable PBT keycaps, and a long-lasting 4000mAh battery. This manual provides detailed instructions on how to set up, operate, and maintain your keyboard.

2. Conținutul pachetului

Vă rugăm să verificați conținutul pachetului pentru a vă asigura că toate articolele sunt prezente:

• Hivento Mechanical Keyboard
• Cablu USB-C
• Extractor pentru chei
• Dongle USB de 2.4 GHz
• Manual de utilizare

Figure 2.1: Hivento Mechanical Keyboard and included accessories.

3. Produs terminatview

The Hivento Mechanical Keyboard offers advanced features for enhanced user experience. Familiarize yourself with its key components and capabilities.

3.1 Triple-Mode Connectivity

Figure 3.1: Triple-mode connectivity supporting multiple devices and systems.

The keyboard supports three connection modes: Bluetooth 5.0, 2.4GHz wireless, and USB-C wired. These modes can be easily switched using FN key combinations, providing flexibility for various environments and devices.

3.2 Iluminare de fundal RGB personalizabilă

Figure 3.2: Customizable RGB backlighting with dynamic effects.

Experience a variety of RGB lighting effects, customizable macros, and dynamic lighting that can synchronize with music rhythms, enhancing your gaming and work setup.

3.3 Comutatoare înlocuibile la cald

Figure 3.3: Hot-swappable switch design for easy customization.

The keyboard features a hot-swappable design, allowing you to easily change switches and keycaps without soldering. It comes equipped with titanium red switches for a smooth typing experience and quick response.

Figure 3.4: Red switch specifications.

Red Switch Specifications:
Actuation Force: 40 ± 3 gf
Actuation Travel: 1.5 ± 0.3 mm
Bottom-out Force: 50 ± 3 gf
Total Travel: 3.6 ± 0.3 mm

3.4 Multifunctional Knob and Ergonomic Design

Figure 3.5: Ergonomic features and multifunctional knob.

The keyboard features a practical multifunctional knob for easy control of backlight brightness, volume, and media functions. Its ergonomic design includes dual-stage feet with anti-slip rubber for comfortable use.

3.5 Structura internă

Figura 3.6: Explodat view of the keyboard components.

The keyboard is constructed with multiple layers of sound-absorbing pads to reduce cavity noise, resulting in clearer key clicks and an enhanced quiet experience. Key components include PBT double-shot keycaps, a rotary knob, mechanical switches, stabilizers, a PC positioning plate, an IKPE switch dampening ring, a PCB, a silicone bottom pad, and a 4000mAh battery.

4. Configurare

4.1 Încărcarea tastaturii

Before first use, fully charge the keyboard using the provided USB-C cable. Connect the USB-C end to the keyboard and the USB-A end to a power source (e.g., computer USB port, USB wall adapter). The keyboard has a built-in 4000mAh battery for extended use.

4.2 Conectarea tastaturii

The Hivento Mechanical Keyboard supports three connection modes:

• Mod USB-C cu fir: Connect the keyboard directly to your device using the USB-C cable. The keyboard will be recognized automatically.
• Mod wireless de 2.4 GHz: Insert the 2.4GHz USB dongle into an available USB port on your device. Switch the keyboard to 2.4GHz mode (refer to the FN key combinations in the Operating Instructions section). The keyboard should connect automatically.
• Mod Bluetooth 5.0:
  1. Switch the keyboard to Bluetooth mode (refer to the FN key combinations in the Operating Instructions section).
  2. Pe dispozitiv, accesați setările Bluetooth și căutați dispozitive noi.
  3. Select "Hivento Keyboard" (or similar name) from the list of available devices to pair.

5. Instrucțiuni de utilizare

5.1 Comutarea modurilor de conectare

Use the following FN key combinations to switch between connection modes:

• FN + [Key] for Bluetooth Mode (e.g., FN + 1, FN + 2, FN + 3 for different Bluetooth profiles)
• FN + [Key] for 2.4GHz Wireless Mode
• FN + [Key] for USB-C Wired Mode

(Specific key combinations for mode switching are typically found on the keyboard itself or in a quick start guide. Please refer to any included quick reference card for exact key mappings.)

5.2 Multifunctional Knob Control

The rotary knob provides quick access to several functions:

• Rotate Up: Increase Volume / Cycle through lighting modes
• Rotate Down: Decrease Volume / Cycle through lighting modes
• Apăsați și mențineți apăsat (3 secunde): Fix current lighting mode
• Presă simplă: Redați/Întrerupeți conținut media

5.3 Personalizare iluminare RGB

The keyboard offers various RGB lighting effects. Use the multifunctional knob or specific FN key combinations to adjust brightness, change patterns, and customize colors. Advanced customization, including macros and dynamic lighting effects that sync with music, can be configured via the dedicated driver software (if available, check the manufacturer's website pentru descărcări).

5.4 N-Key Rollover

The N-key rollover feature ensures that every key press is registered accurately, even when multiple keys are pressed simultaneously. This is particularly beneficial for fast-paced gaming and typing.

6. Întreținere

6.1 Curățarea tastaturii

To clean your keyboard, disconnect it from all power sources. Use a soft, dry cloth to wipe the surface. For deeper cleaning, you can use the provided keycap puller to remove keycaps and clean underneath with compressed air or a small brush. Avoid using harsh chemicals or abrasive materials.

6.2 Înlocuirea comutatoarelor și a capacelor tastelor

Thanks to the hot-swappable design, you can easily replace switches and keycaps. Use the provided keycap puller to remove keycaps. For switches, use a switch puller (not included unless specified) to gently remove the switch. Align the new switch's pins with the sockets and press firmly until it clicks into place. Ensure the pins are not bent before insertion.

7. Depanare

7.1 Alt+Tab Shortcut Not Functioning (Brazilian Systems)

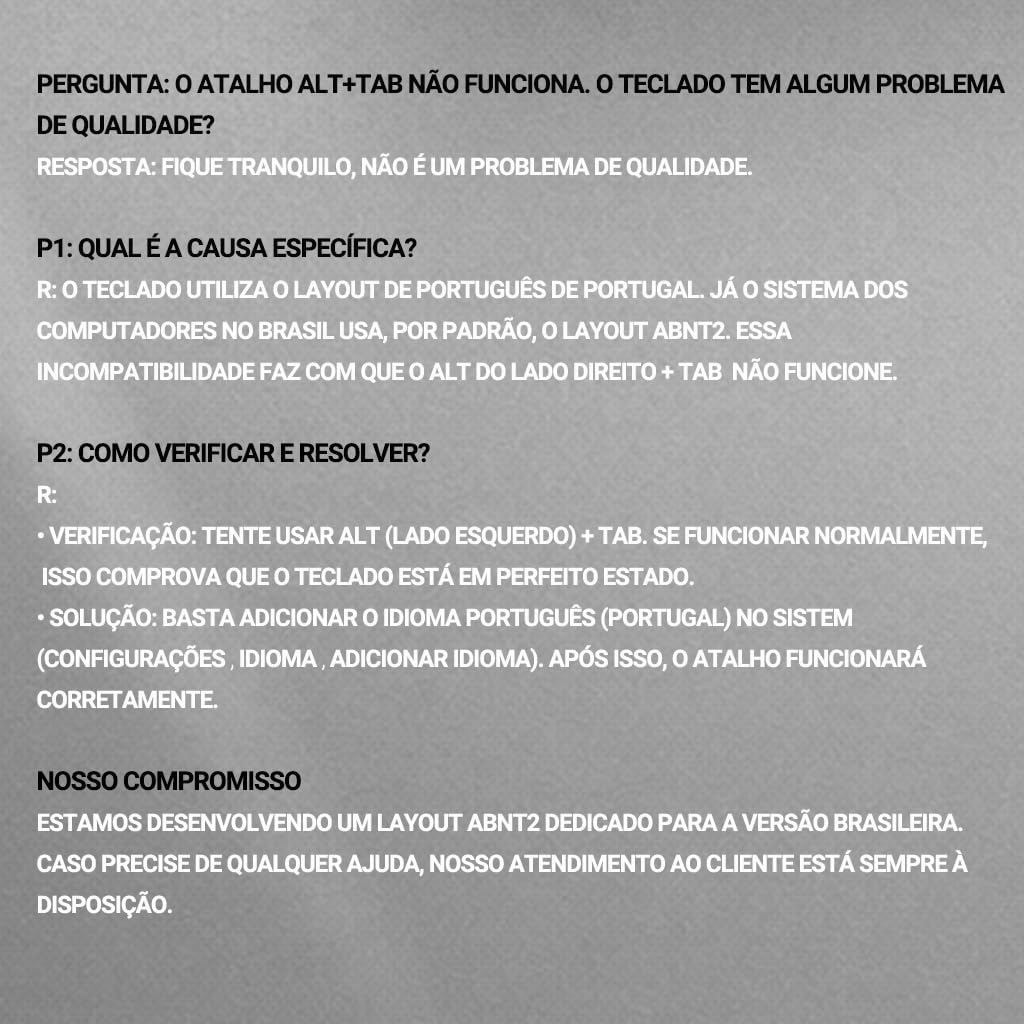

Figure 7.1: Troubleshooting for Alt+Tab functionality.

If the Alt+Tab shortcut does not function correctly on Brazilian systems, this is typically due to a keyboard layout incompatibility, not a product defect. The keyboard uses the Portuguese (Portugal) layout, while Brazilian systems often default to ABNT2.

• Verificare: Încercați să utilizați stânga Alt key + Tab. If this works, it confirms the keyboard is functioning correctly.
• Soluţie: Add the Portuguese (Portugal) language layout to your operating system. Go to your system's Setări > Limbă > Adăugați o limbă, and select Portuguese (Portugal). After this change, the Alt+Tab shortcut should function normally.

Users with specific shortcut requirements are advised to verify and confirm this configuration before purchase to ensure the best user experience.

7.2 Sfaturi generale de depanare

• Probleme de conectivitate: Ensure the keyboard is fully charged. Re-pair Bluetooth devices or re-insert the 2.4GHz dongle. Try connecting via USB-C cable to rule out wireless issues.
• Tastele nu răspund: Check if the keyboard is in the correct operating mode. If a specific key is not working, try replacing its switch (if you have spare switches).
• Probleme cu iluminarea din spate: Adjust brightness using the multifunctional knob. Ensure the keyboard is not in a low-power mode.

8. Specificații

9. Garanție și asistență

9.1 Garanția produsului

This Hivento Mechanical Keyboard comes with a one-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.

9.2 Asistență pentru clienți

For any questions, technical assistance, or warranty claims, please contact the seller, Masterize Store. Only products purchased from Masterize Store are guaranteed to be original and come with warranty and after-sales support.

Please refer to your purchase platform or documentation for specific contact details for Masterize Store.
