Introducere
Thank you for choosing the 7artisans AF 35mm F1.8 Full-Frame Camera Lens. This manual provides detailed instructions for the proper use, setup, and maintenance of your new lens. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

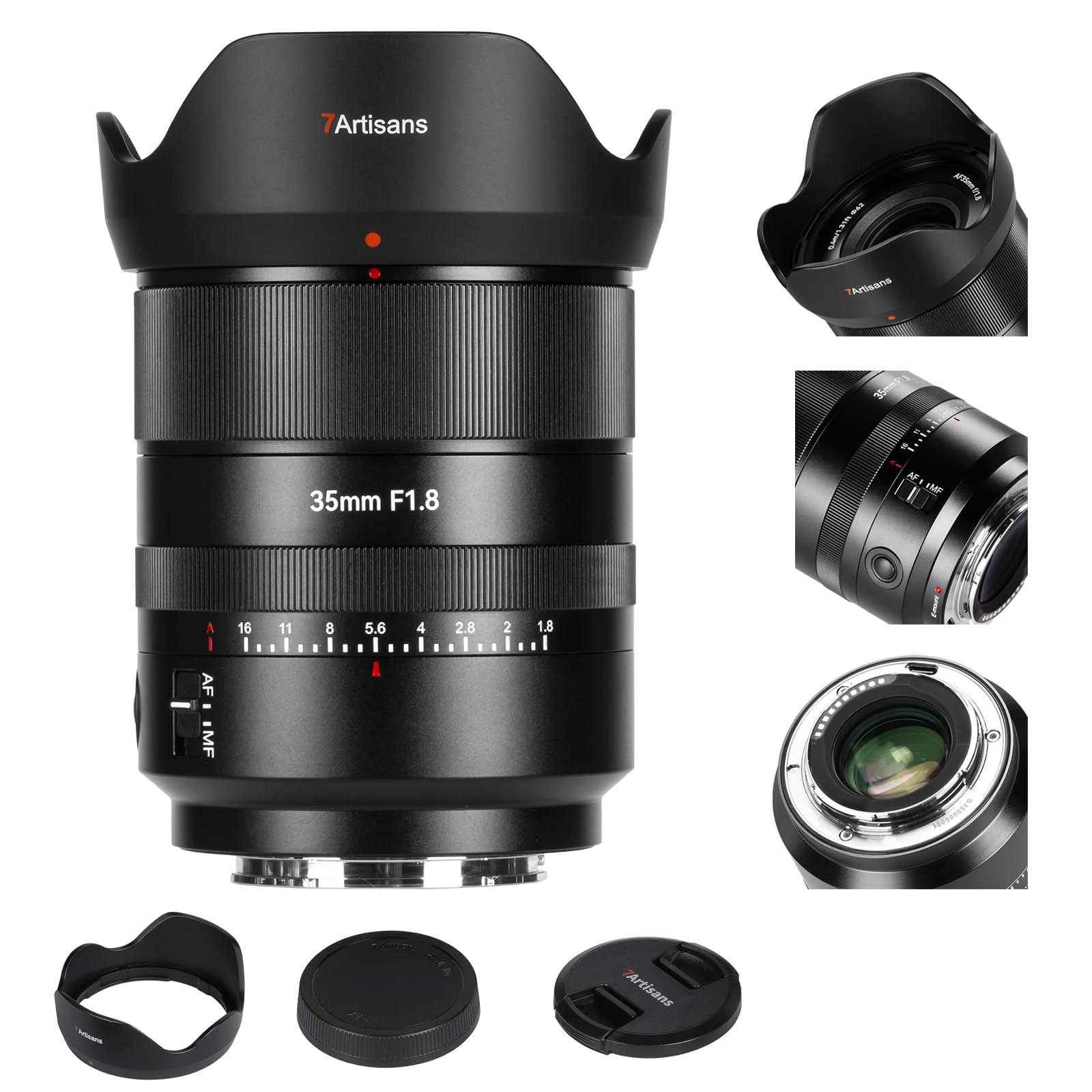

Image: The 7artisans AF 35mm F1.8 lens, a compact black lens designed for Sony E-Mount cameras.
The 7artisans AF 35mm F1.8 lens is a standard prime lens designed for full-frame cameras with a Sony E-Mount. It features a bright F1.8 aperture, a silent STM autofocus motor, and an optical design that delivers high image quality. This lens is suitable for various photography styles, including portraits, landscapes, and street photography.
Ce este în cutie
Vă rugăm să verificați conținutul coletului pentru a vă asigura că toate articolele sunt prezente:
- 7artisans AF 35mm F1.8 Lens (x1)
- Lens Front Cap (x1)
- Lens Rear Cap (x1)
- Manual de utilizare (x1)
- Lens Hood (x1)
- Cablu Type-C (x1)
Produs terminatview
Familiarize yourself with the different parts of your 7artisans AF 35mm F1.8 lens:
Image: A diagram illustrating the components of the 7artisans AF 35mm F1.8 lens, including the filter thread, lens hood mount, focus ring, aperture ring, customizable button, AF/MF toggle, lens mount, upgraded USB port, and electronic contacts.
- Filtru filet: For attaching filters (62mm).
- Montură parasolar: Pentru atașarea parasolarului inclus.
- Inel de focalizare: For manual focusing.
- Inel de diafragmă: For adjusting the lens aperture.
- Customizable Button (FN): A programmable function button.
- AF/MF Toggle: Switch between autofocus and manual focus modes.
- Montare lentile: Conectează obiectivul la corpul camerei.
- Upgraded USB Port: Pentru actualizări de firmware.
- Electronic Contacts: For communication between the lens and camera.
Înființat
Montarea lentilei
- Asigurați-vă că camera dvs. este oprită.
- Aliniați indicele de montare de pe obiectiv cu indicele corespunzător de pe corpul camerei.
- Rotiți lentila în sensul acelor de ceasornic până când se aude un clic, indicând faptul că este fixată în siguranță.
- Scoateți capacul frontal al obiectivului.
Atașarea parasolarului
Align the lens hood with the front of the lens and twist it until it locks into position. The lens hood helps to prevent flare and protect the front element of the lens.
Actualizări de firmware
The lens is equipped with a USB Type-C port for firmware updates. Connect the lens to a computer using the provided Type-C cable and follow the instructions on the 7artisans official website for the latest firmware and update procedures.
Operarea obiectivului
Focalizare automată (AF) și focalizare manuală (MF)
The lens features both autofocus and manual focus capabilities. Use the AF/MF toggle switch on the lens barrel to select your desired mode.
- Focalizare automată (AF): In AF mode, the lens utilizes a silent STM stepping motor for fast and precise focusing. It supports advanced recognition functions such as eye, face, and animal detection, allowing you to capture subjects with accuracy.
- Focalizare manuală (MF): In MF mode, you can manually adjust the focus by rotating the focus ring on the lens. This provides precise control for specific creative needs.
Imagine: Detaliată view of the lens barrel, highlighting the AF/MF switch, the linear adjustable aperture ring, and the customizable FN button.
Controlul diafragmei
The 7artisans AF 35mm F1.8 lens features a large F1.8 maximum aperture, ideal for low-light conditions and creating beautiful background blur (bokeh). The aperture can be adjusted using the linear adjustable aperture ring on the lens barrel, ranging from F1.8 to F16.
Image: A portrait demonstrating the creamy bokeh effect achievable with the F1.8 aperture, alongside an illustration of 62mm filter compatibility.
FN Custom Button
The FN custom button on the lens can be programmed to access various camera functions or perform shortcut operations, enhancing your shooting efficiency. Refer to your camera's manual for specific customization options.
Performanță video
This lens offers excellent video performance with minimal distortion or compression, making it suitable for daily shoots, interviews, and vlogs. It supports up to 8K recording and minimizes focus breathing, ensuring smooth transitions between focal points during video capture.
Image: A collage demonstrating the lens's video capabilities, including a woman in a low-light setting and various indoor scenes, highlighting smooth focus transitions.
Întreţinere
Curățarea lentilei
- Folosiți o lavetă moale, fără scame, sau o perie pentru lentile pentru a îndepărta praful de pe suprafețele lentilelor.
- For stubborn smudges or fingerprints, use a specialized lens cleaning solution and a microfiber cloth. Apply the solution to the cloth, not directly to the lens.
- Evitați să atingeți elementele lentilei cu degetele.
Îngrijire generală și depozitare
- Atașați întotdeauna capacele față și spate ale obiectivului atunci când obiectivul nu este utilizat.
- Depozitați obiectivul într-un loc uscat și răcoros, ferit de lumina directă a soarelui și de temperaturi extreme.
- The lens features a robust metal body, providing durability. The included lens hood offers additional protection against impacts and stray light.
Depanare
If you encounter any issues with your lens, please consider the following general troubleshooting steps:
- Obiectivul nu este recunoscut de cameră: Ensure the lens is securely mounted to the camera body. Turn the camera off and on again. Check for any debris on the electronic contacts of both the lens and camera.
- Autofocalizarea nu funcționează: Verify that the AF/MF switch on the lens is set to AF. Check your camera's focus settings. Ensure there is sufficient light and contrast for the autofocus system to operate effectively.
- Probleme de calitate a imaginii: Ensure the lens elements are clean. Check your camera settings (ISO, aperture, shutter speed). If issues persist, consider updating the lens firmware via the USB Type-C port.
For more complex issues, please contact 7artisans customer support.
Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Marca | 7 artizani |
| Numele modelului | 7artisans 35mm F1.8 |
| Distanța focală | 35mm |
| Tip de lentile | Standard Prime |
| Suporturi compatibile | Sony E |
| Diafragma maximă | F1.8 |
| Diafragmă minimă | F16 |
| Construcție optică | 11 elements in 8 groups (including 2 aspherical, 2 high-refractive, 1 low-dispersion) |
| Lame de diafragmă | 11 buc |
| Tip de focalizare | Autofocus/Manual |
| Distanța minimă de focalizare | 0.4m |
| Dimensiunea filtrului | 62mm |
| Unghiul de View | 64 de grade |
| Greutate | Aproximativ. 426 g |
| Stabilizarea imaginii | Fără stabilizare a imaginii |
| Material lentile | Metal |
Modele compatibile
The 7artisans AF 35mm F1.8 lens is compatible with the following Sony E-Mount camera models:
Image: A graphic listing compatible APS-C and Full-Frame Sony E-Mount camera models for the 7artisans AF 35mm F1.8 lens.
APS-C Models:
- ZV-E10, ZV-E10 II
- A6700, A6600, A6500, A6300, A6000
- FX30
Full-Frame Models:
- A9, A9 II, A9 III
- A7M4, A7M3, A7M2, A7M1
- A7R5, A7R4, A7R3, A7R2, A7R
- A7S3, A7S2, A7S
- A7CR, A7C2, A7C
- ZV-E1, FX3
- A1
Garanție și suport
7artisans products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official 7artisans website-ul pentru termenii și condițiile detaliate ale garanției.
For technical support, service, or inquiries, please contact 7artisans customer service through their official website-ul sau comerciantul de la care ați achiziționat produsul.
Sample Images
Explore the photographic capabilities of the 7artisans AF 35mm F1.8 lens through these sampimaginile:
