NFHK NGFF NVME M-Key to 6-Port SATA 3.0 Adapter Manual

1. Introducere

This manual provides instructions for the installation and operation of the NFHK NGFF NVME M-Key to 6-Port SATA 3.0 Adapter. This adapter is designed to expand the SATA connectivity of your system by utilizing an available M.2 NVMe M-Key slot on your motherboard, providing six additional SATA 3.0 ports for connecting mechanical hard drives, SSDs, or optical drives.

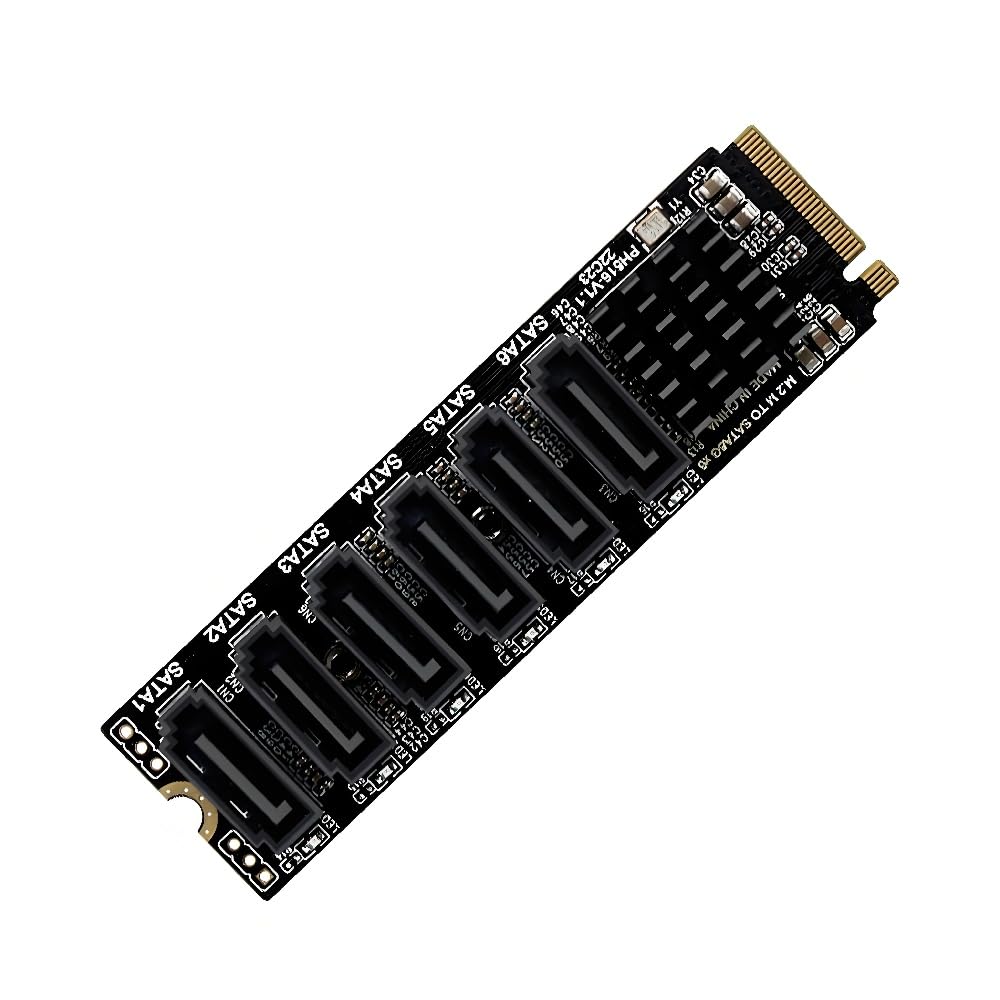

Figura 1: NFHK NGFF NVME M-Key to 6-Port SATA 3.0 Adapter. This image shows the adapter board with six SATA ports and the M-Key connector.

2. Caracteristici cheie

• Interfață de intrare: NGFF NVME M-key PCI Express.
• Interfață de ieșire: 6 x SATA 3.0 ports.
• Rate de transfer de date: Supports 6.0Gbps, 3.0Gbps, and 1.5Gbps.
• Compatibilitate: Fully compatible with SATA interface mechanical hard drives, SSDs, and optical drives.
• Suport pentru sistemul de operare: Windows 7/8/10, Windows Server 2008 R2/2012 R2/2016/2019, Mac OS, Linux, FreeNAS, Synology, and various NAS operating systems.
• Caracteristici avansate: Supports error reporting, recovery, and correction; partial and sleep power management states; Gen1i, Gen1x, Gen2i, Gen2m, Gen2x, and Gen3i.
• Native Command Queue (NCQ): Enhances performance and stability under high load.
• Management termic: Advanced heatsink on the chipset for lower operating temperatures and improved reliability.

3. Configurare și instalare

Follow these steps to install the NFHK NGFF NVME M-Key to 6-Port SATA 3.0 Adapter into your system.

3.1 Conținutul pachetului

Înainte de instalare, asigurați-vă că toate componentele sunt prezente:

• 1x NFHK NGFF NVME M-Key to 6-Port SATA 3.0 Adapter
• 1x șuruburi de montare
• 1 x șurubelniță

Figura 2: Included accessories with the adapter, featuring a mounting screw and a small screwdriver.

3.2 Etapele de instalare

1. Sistem de oprire: Ensure your computer is completely powered off and disconnected from the power source before beginning installation.
2. Localizați slotul M.2: Identify an available M.2 NVMe M-Key slot on your motherboard. This adapter requires an M-Key slot for proper installation.
3. Adaptor de inserare: Carefully align the M-Key connector of the adapter with the M.2 slot on your motherboard. Gently push the adapter into the slot at an angle until it is seated securely.
4. Adaptor securizat: Once seated, push the adapter down and secure it with the provided mounting screw.
5. Conectați dispozitivele SATA: Connect your SATA mechanical hard drives, SSDs, or optical drives to the six SATA 3.0 ports on the adapter using standard SATA data cables.
6. Sistem de pornire: Reconnect your computer to the power source and power it on.

Figura 3: The adapter correctly installed into an M.2 slot on a motherboard, showing the six available SATA ports.

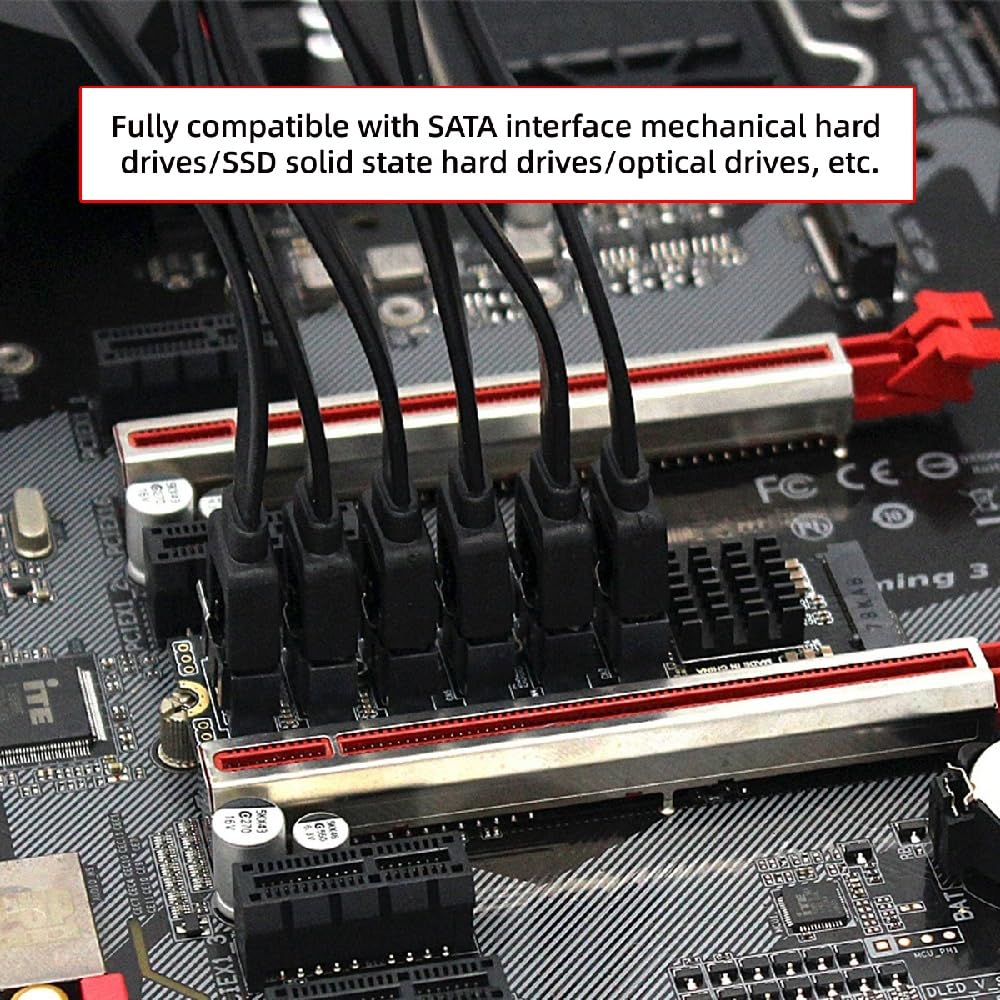

Figura 4: Multiple SATA data cables connected to the adapter, demonstrating its expansion capability.

Notă importantă: This adapter is designed for M.2 NVMe M-Key slots. Please ensure your motherboard has a compatible slot. The adapter does not require additional software installation or driver setup for basic functionality.

Figura 5: Visual representation of the M-Key connector type and a reminder to ensure the device interface is SATA compatible.

4. Funcționare

Once installed, the NFHK NGFF NVME M-Key to 6-Port SATA 3.0 Adapter functions as a direct expansion of your system's SATA capabilities.

• Recunoaștere dispozitiv: Connected SATA devices (SSDs, HDDs, optical drives) will be recognized by your operating system as standard SATA devices.
• System Disk Support: An SSD connected to one of the adapter's SATA 3.0 interfaces can be used as a system disk.
• Transfer de date: The adapter supports SATA 3.0 speeds up to 6.0Gbps, providing fast data transfer for connected devices.
• No Hot Swapping: Please note that this adapter does not support hot-swapping of SATA devices. Devices should be connected or disconnected while the system is powered off.

Figura 6: Pesteview of SATA 3.0 (6Gbps) data transfer rates and compatibility with various SATA devices, including 2.5-inch and 3.5-inch drives.

5. Întreținere

The NFHK NGFF NVME M-Key to 6-Port SATA 3.0 Adapter is designed for reliable operation with minimal maintenance.

• curatenie: Periodically inspect the adapter for dust accumulation. If necessary, gently clean with compressed air. Ensure the system is powered off before cleaning.
• Management termic: The adapter features an advanced heatsink to maintain optimal operating temperatures. Ensure adequate airflow within your computer case to support efficient cooling.
• Conditii de mediu: Operate the adapter within standard computer operating temperatures and humidity levels.

Figura 7: Un detaliat view of the ASM1166 high-speed chip and its heatsink, designed for stable and cool operation.

6. Depanare

If you encounter issues with the adapter, consider the following troubleshooting steps:

• Dispozitiv nedetectat:
  • Ensure the adapter is securely seated in the M.2 NVMe M-Key slot.
  • Verify that SATA data cables are properly connected to both the adapter and the SATA devices.
  • Check that the SATA devices themselves are powered correctly.
  • Confirm that your motherboard's M.2 slot is an M-Key type and supports NVMe.
• Performanță lentă:
  • Ensure you are using SATA 3.0 compatible drives and cables to achieve 6.0Gbps speeds.
  • Check your operating system's device manager to confirm the adapter and connected drives are recognized at their optimal speed.
• Instabilitatea sistemului:
  • Ensure the adapter is firmly installed and not loose.
  • The adapter supports error reporting, recovery, and correction features to enhance stability. If issues persist, consult your motherboard's manual or contact technical support.

7. Specificații

Figura 8: Labeled diagram of the adapter showing key components and interfaces.

Figura 9: Physical dimensions of the adapter, indicating a length of 80mm and a width of 22mm.

8. Compatibilitate

This adapter is compatible with a wide range of operating systems and hardware configurations:

• Placa de baza: Requires an available M.2 NVMe M-Key slot.
• Dispozitive SATA: Supports all standard SATA interface mechanical hard drives, SSDs, and optical drives (2.5-inch and 3.5-inch).
• Sisteme de operare: Windows 7, Windows 8, Windows 10, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Mac OS, Linux, FreeNAS, Synology, and other NAS operating systems.
