Kenmore 11029133413 Washer Lid Lock Latch Replacement Part Instruction Manual

Introducere

This manual provides essential instructions for the installation, operation, and maintenance of the Fricparts replacement lid lock latch for Kenmore 11029133413 washing machines. Please read this manual thoroughly before proceeding with installation to ensure safe and correct usage.

Informații de siguranță

Deconectați alimentarea: Always unplug the washing machine from the electrical outlet before attempting any repairs or maintenance. Failure to do so can result in electric shock or serious injury.
Purtați echipament de protecție: Folosiți echipament individual de protecție adecvat, cum ar fi mănuși, pentru a preveni rănirea.
Asistență profesională: Dacă nu sunteți sigur de vreun pas sau nu vă simțiți confortabil la efectuarea reparației, consultați un tehnician calificat în domeniul electrocasnicelor.
Manipulați cu grijă: Appliance parts can have sharp edges. Handle all components carefully.

Conținutul pachetului

1 x Kenmore 11029133413 Washer Lid Lock Latch Replacement Part (Fricpart-074863)

Compatibilitate

This replacement part is specifically designed for Kenmore washing machine model 11029133413. Verify your washer's model number before installation to ensure proper fit and function. Appliance parts can appear similar; confirming the model number is crucial.

Configurare și instalare

Follow these steps carefully to replace the washer lid lock latch:

Pregătiți mașina de spălat:
- Unplug the washing machine from the power outlet.
- Opriți alimentarea cu apă a mașinii de spălat.
- Move the washer away from the wall to allow access to the rear and top.
Access the Lid Lock:
- Depending on your specific Kenmore model, you may need to remove the control panel or the entire top panel of the washer. Typically, the control panel can be lifted or unclipped, and the top panel may have screws at the rear or clips at the front. Refer to your washer's service manual for exact panel removal instructions.
- Locate the existing lid lock latch assembly, usually mounted near the front edge of the washer opening.
Disconnect the Old Latch:
- Carefully disconnect the electrical wiring harness from the old lid lock latch. There is usually a tab or clip that needs to be pressed to release the connector.
- Remove any screws or clips securing the old lid lock latch to the washer frame.
- Gently remove the old lid lock latch assembly.
Install the New Latch:
- Position the new Fricparts lid lock latch replacement part in the same location as the old one.
- Secure it with the screws or clips that were removed earlier. Ensure it is firmly seated and aligned correctly.
- Connect the electrical wiring harness to the new lid lock latch. Make sure the connector clicks into place securely.
Reasamblare și testare:
- Carefully reattach the control panel or top panel of the washer. Ensure all screws and clips are reinstalled.
- Plug the washing machine back into the electrical outlet.
- Porniți alimentarea cu apă.
- Perform a test cycle to ensure the lid lock latch functions correctly. The lid should lock when the cycle starts and unlock when the cycle is complete or paused.

Kenmore 11029133413 Washer Lid Lock Latch Replacement Part

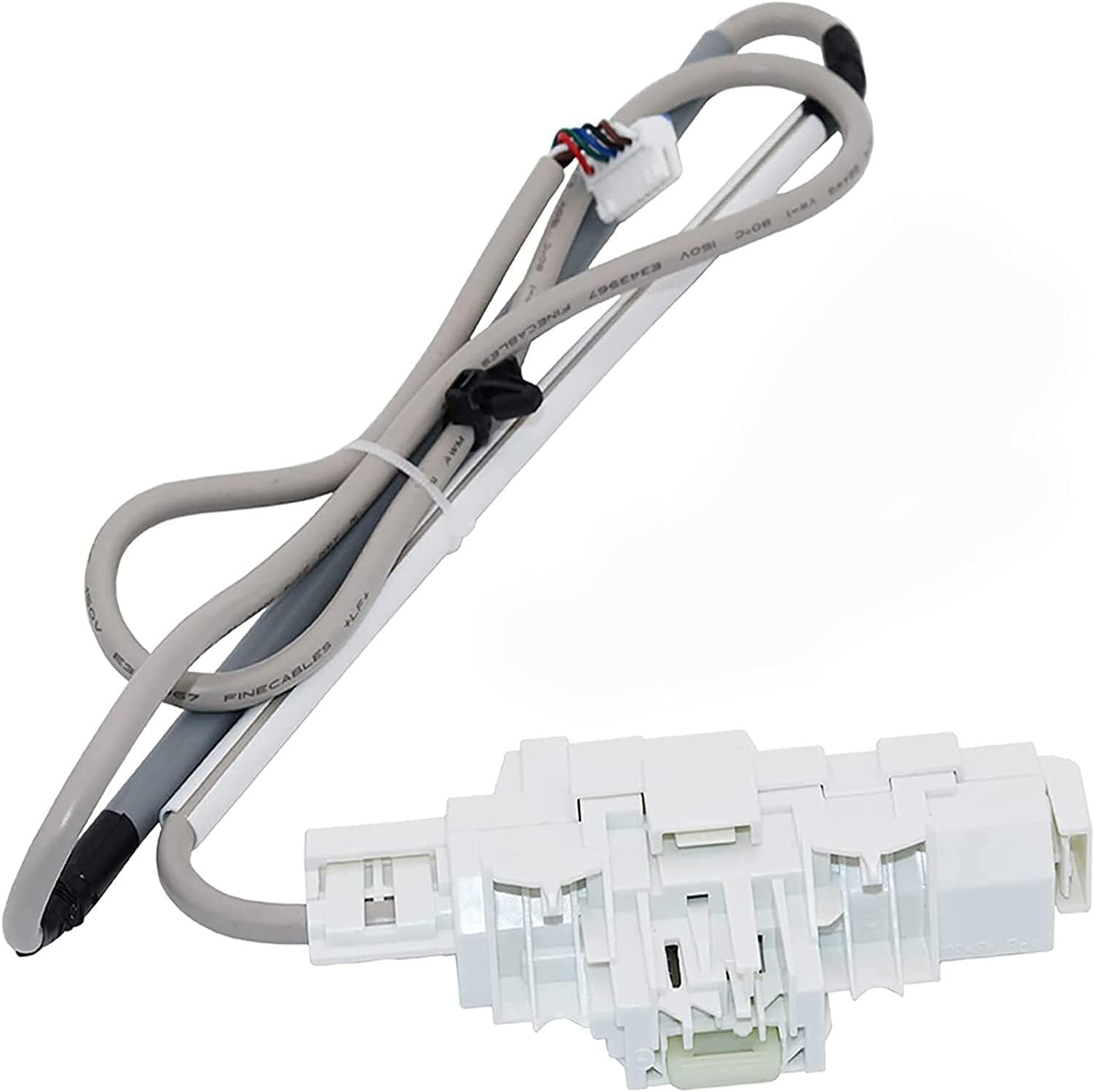

Image: The Fricparts replacement lid lock latch assembly for Kenmore 11029133413 washers. This image displays the complete replacement lid lock latch assembly, featuring the white plastic latch mechanism connected to a gray wiring harness with a multi-pin connector at the end.

Instrucțiuni de operare

The lid lock latch is an integral safety component of your washing machine. Its operation is automatic:

When a wash cycle begins, the lid lock latch engages, preventing the lid from being opened during agitation and spin cycles. This ensures user safety and prevents water spillage.
The lid will remain locked until the cycle is complete or paused, and the internal components have come to a stop.
If the lid fails to lock, the washer will typically not start or will display an error code.

Întreţinere

The lid lock latch is a sealed unit and generally requires no specific maintenance. However, to ensure its longevity and proper function:

Keep the area around the lid lock mechanism clean and free of debris, lint, or detergent residue.
Avoid forcing the washer lid open when the lock is engaged.
Regularly inspect the wiring harness for any signs of wear or damage.

Depanare

Problemă	Cauza posibila	Soluţie
Lid does not lock, washer won't start.	Faulty lid lock latch, disconnected wiring, or obstruction.	Verificați dacă există obstacole care împiedică închiderea completă a capacului. Inspect the wiring harness connection to the lid lock latch. If the latch is new and correctly installed, it may be defective and require replacement.
Lid remains locked after cycle completion.	Lid lock latch malfunction or control board issue.	Unplug the washer for 5 minutes, then plug it back in to reset the control board. If the issue persists, the lid lock latch or the main control board may need replacement.
Cod de eroare legat de blocarea capacului.	Lid lock latch failure.	Consult your washer's user manual for specific error code meanings. Often indicates a need to replace the lid lock latch.

Specificații

Număr piesa: FRIC-PL-APP-TP-22052025-090779
Număr de model articol: Fricpart-074863
Producător: Fricparts
Culoare: Black/White (referring to wiring/housing)
Cantitate: 1 bucată
Compatibilitate: Kenmore 11029133413 Washer

Garanție și suport

Information regarding specific warranty terms for this replacement part is not provided in the product details. For warranty inquiries or technical support, please contact the seller or manufacturer directly. Ensure you retain your purchase receipt for any warranty claims.

Fricpart-074863
