1. Introducere
Thank you for choosing the VEVOR RV Vent Fan HQS-36AY. This 12V RV roof vent fan is designed to provide efficient and comfortable ventilation for your recreational vehicle. It features a powerful DC motor, 10 adjustable speeds, reversible airflow, remote control operation, and a built-in rain sensor for enhanced convenience and protection. Please read this manual thoroughly before installation and operation to ensure proper use and maintenance.
2. Informații de siguranță
Respectați întotdeauna următoarele măsuri de siguranță pentru a reduce riscul de vătămare corporală sau deteriorare:
- Siguranta electrica: Ensure the power supply is disconnected before installation or maintenance. Connect the fan to a 12V DC power source only. Incorrect wiring can cause damage or fire.
- Instalare profesionala: If you are not experienced with RV electrical systems or roof installations, seek professional assistance.
- Montare sigură: Ensure the fan is securely mounted to the RV roof according to installation instructions to prevent detachment during travel.
- Clearance: Maintain adequate clearance around the fan on the roof to allow for proper lid operation and airflow.
- Plasă de protecție: Do not operate the fan without the protective mesh in place to prevent foreign objects or small animals from entering.
- Expunerea la apă: While the fan has a rain sensor, avoid direct high-pressure water spray on the unit.
3. Caracteristicile produsului
- Ventilatie eficienta: Equipped with a 22W DC motor for effective air circulation and exhaust.
- Flux de aer reversibil: Supports both exhaust and intake functions with 10 adjustable speeds.
- Control ușor: Features an electric lid and a wireless remote control with a range of over 32 feet (10 meters).
- Design rezistent la ploaie: An automatic rain sensor closes the fan lid upon detecting rain.
- Protecție de încredere: Durable, rust-resistant stainless steel protective mesh prevents entry of small animals.
Imagine: Pesteview of VEVOR RV Vent Fan features including 10-speed fan, wireless remote, and powerful motor.
4. Specificații
| Caietul de sarcini | Detaliu |
|---|---|
| Numărul de model | HQS-36AY |
| Alimentare electrică | DC 12V |
| Wattage | 22W |
| Numărul de viteze | 10 niveluri |
| Greutate netă | 11.02 lbs (5 kg) |
| Dimensiuni produs (D x L x H) | 16.1" x 16.1" x 9.9" (410 x 410 x 252 mm) |
| Fits Roof Openings | 35.6 cm x 35.6 cm |
| Metoda de control | Telecomandă, butoane manuale |
| Material | Plastic, Stainless Steel Mesh |
| Nivel de zgomot | 65 dB |
Image: Detailed product dimensions and key specifications of the RV Vent Fan.
5. Configurare și instalare
This RV vent fan is designed to fit standard 14" x 14" roof openings. Proper installation is crucial for optimal performance and safety.
5.1 Lista de verificare înainte de instalare
- Verify roof opening dimensions (14" x 14").
- Gather necessary tools: screwdriver, sealant, wire strippers, drill, measuring tape.
- Ensure the RV's 12V DC power supply is disconnected.
5.2 Etapele de instalare
- Pregătiți deschiderea: Clean the roof opening thoroughly, removing any old sealant or debris.
- Aplicați etanșant: Apply a generous bead of approved RV roof sealant around the perimeter of the roof opening.
- Poziție ventilator: Carefully place the fan assembly into the roof opening, ensuring it is centered and flush.
- Ventilator sigur: Use appropriate screws (included in screw package) to secure the fan to the roof framing. Ensure a tight, waterproof seal.
- Conexiuni prin cablu: Connect the fan's 12V DC wires to the RV's electrical system. Ensure correct polarity (positive to positive, negative to negative). Use appropriate wire connectors and insulate all connections.
- Decorare interioară: Install the interior trim piece, if applicable, to cover the rough edges of the opening.
- Sigiliu final: Apply additional sealant around the exterior base of the fan and over all screw heads to ensure a watertight installation.
Image: Visual guide illustrating the easy installation process and dimensions for the RV Vent Fan.
6. Instrucțiuni de utilizare
The VEVOR RV Vent Fan offers convenient operation via both a wireless remote control and integrated manual buttons.
6.1 Operarea telecomenzii
The wireless remote control allows you to operate the fan from inside your RV, with a range of over 32 feet (10 meters).
- Pornire/Oprire: Apăsați butonul de alimentare pentru a porni sau opri ventilatorul.
- Lid Open/Close: Use the designated buttons to open or close the fan lid.
- Reglarea vitezei: Adjust the fan speed through 10 levels using the speed control buttons.
- Flux de aer reversibil: Switch between intake (bringing air in) and exhaust (venting air out) modes.
- Rain Sensor Activation: The rain sensor automatically closes the lid when rain is detected. This feature can typically be overridden or enabled/disabled via the remote or manual controls.
6.2 Manual Button Operation
For direct control, buttons are located on the fan unit itself.
- Buton de alimentare: Pornește sau oprește ventilatorul.
- Lid Up/Down: Manually opens or closes the fan lid.
- Direcția fluxului de aer: Toggles between 'IN' (intake) and 'OUT' (exhaust) modes.
- Rain Sensor (RS) Indicator: Indicates the status of the rain sensor.
Image: Illustration of the two control methods: wireless remote and integrated manual buttons on the fan unit.

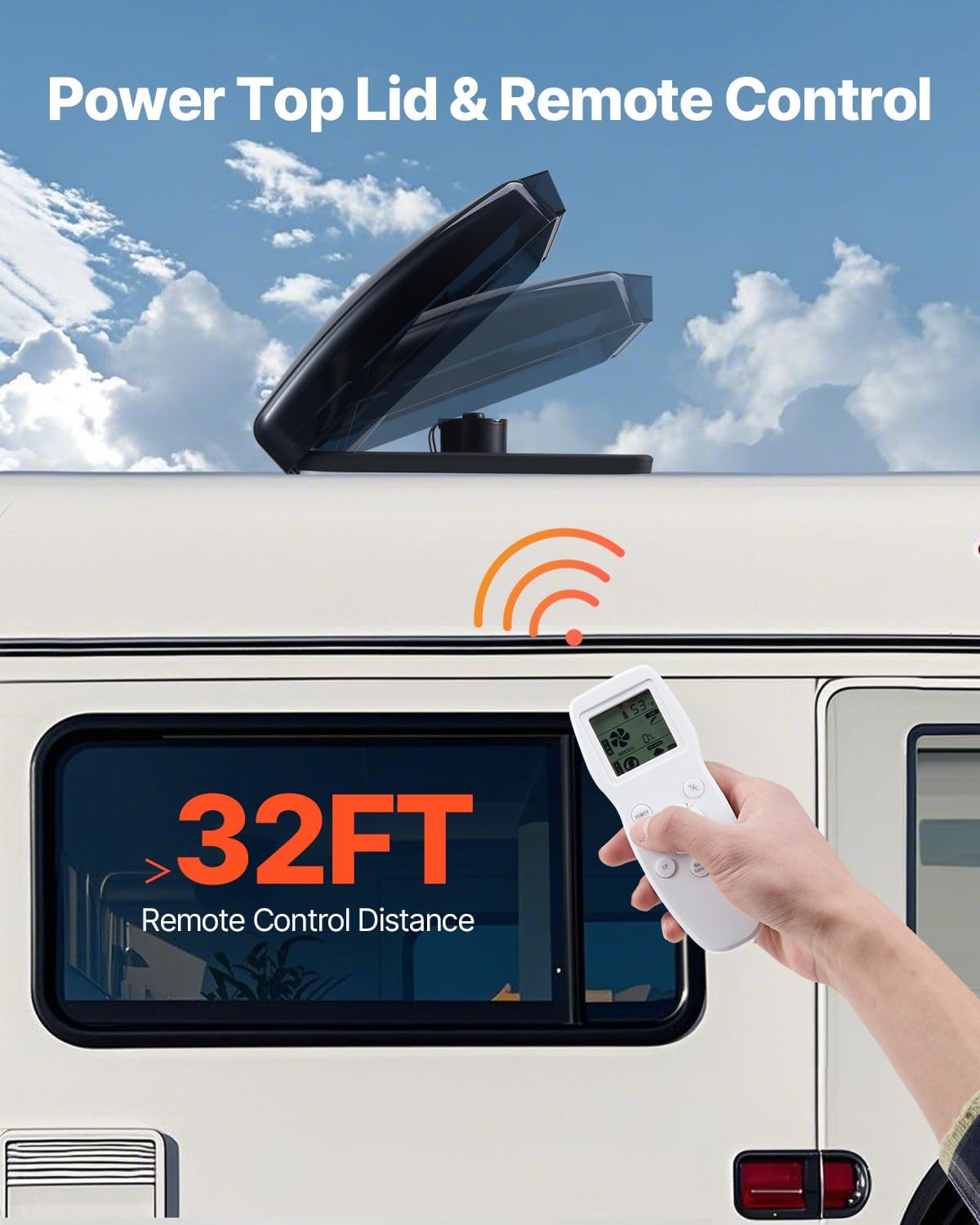

Image: A hand operating the remote control, demonstrating the fan lid opening on an RV roof.
7. Întreținere
Regular maintenance ensures the longevity and optimal performance of your VEVOR RV Vent Fan.
- Cleaning the Mesh Screen: The stainless steel protective mesh screen is removable for easy cleaning. Periodically remove the screen and wash it with mild soap and water. Ensure it is completely dry before re-installing.
- Curățarea palelor ventilatorului: With the power disconnected, carefully wipe down the fan blades with a damp cârpă pentru a îndepărta praful și resturile.
- Curatenie exterioara: Clean the exterior housing and lid with a soft cloth and mild detergent. Avoid abrasive cleaners or solvents.
- Inspecție de etanșare: Annually inspect the roof sealant around the fan for cracks or deterioration. Reapply sealant as needed to maintain a watertight seal.
- Senzor de ploaie: Keep the rain sensor clean and free of obstructions to ensure proper function.
Image: A person demonstrating the removal and cleaning of the mesh screen for the RV Vent Fan.
8. Depanare
Consultați tabelul următor pentru problemele comune și soluțiile acestora.
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Ventilatorul nu pornește. | No power, loose wiring, blown fuse. | Check 12V DC power supply. Inspect wiring connections. Check and replace fuse if necessary. |
| Telecomanda nu funcționează. | Baterii descărcate, în afara razei de acoperire, interferențe. | Replace remote batteries. Ensure you are within 32 feet of the fan. Remove any obstructions. |
| Lid does not open/close. | Obstruction, motor issue, rain sensor active. | Check for physical obstructions. If rain sensor is active, wait for it to dry or manually override. Contact support if motor issue is suspected. |
| Ventilatorul este zgomotos sau vibrează excesiv. | Debris in fan blades, loose mounting, motor wear. | Disconnect power and clean fan blades. Check mounting screws for tightness. If noise persists, contact support. |
| Rain sensor not functioning. | Sensor dirty, faulty sensor. | Clean the rain sensor area. If still not working, contact support. |
9. Garanție și asistență
For warranty information or technical support, please contact VEVOR customer service. Keep your purchase receipt and model number (HQS-36AY) handy for faster service.
Puteți găsi mai multe informații și date de contact pe site-ul oficial VEVOR. website-ul web sau prin intermediul distribuitorului dumneavoastră.
