1. Introducere

The Double OS1 Resonance Pickup On-Board Preamp is an innovative guitar preamplifier system designed to enhance acoustic guitar sound. It features a unique Same Frequency Trans (SFT) transmission device that drives the guitar body to resonate, producing a more resonant, solid, and dynamic sound even without an external amplifier. This system integrates a dual-pickup setup, combining a piezo pickup and a microphone, to capture every detail of your playing. It also includes built-in reverb, chorus, and delay effects, along with Bluetooth connectivity for accompaniment.

2. Conținutul pachetului

Vă rugăm să verificați dacă toate componentele sunt prezente în pachet:

• 1 x Pickup Unit
• 1 x End-Pin Jack
• 1 x Vibrating Horn
• 1 x Pickup Wire
• 1 x cablu tip C
• 2 x Clipuri

Figure 2.1: Included components of the Double OS1 Resonance Pickup system. Note that the pickup wire and vibrating horn may vary in appearance (random delivery).

3. Installation (Requires Opening Holes)

This is an on-board preamplifier system that requires permanent installation into your guitar. This process involves opening holes in the guitar body to accommodate the pickup unit and end-pin jack. Professional installation by a qualified luthier or guitar technician is highly recommended to prevent damage to your instrument.

The main unit is designed to be mounted on the side of the guitar, providing easy access to controls. The end-pin jack replaces the existing end-pin, serving as both a strap button and an output for connecting to an ampliifier sau sistem PA.

Figure 3.1: The preamp unit installed on a guitar, demonstrating its on-board nature and the necessity for guitar modification.

Figure 3.2: The preamp unit seamlessly integrated into the guitar body.

4. Instrucțiuni de utilizare

4.1. Pornire/Oprire și încărcare

Preamp is equipped with a 2000mAh rechargeable Li-ion battery. To charge the unit, connect the provided Type-C cable to the Type-C interface on the preamp and a suitable USB power source. The charging rate is increased by 50% for faster charging.

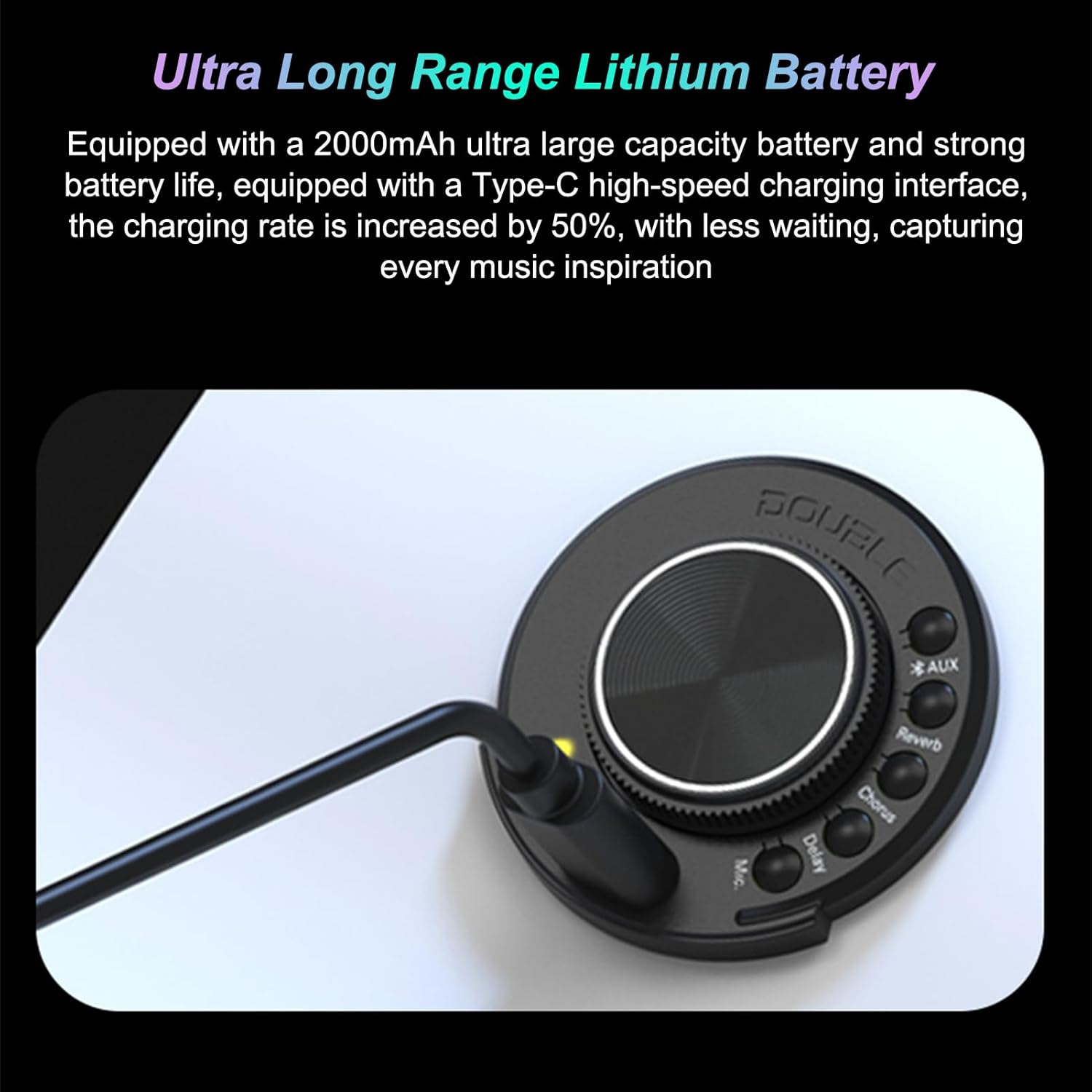

Figure 4.1: Charging the preamp via the Type-C port.

4.2. Comenzi și funcții

The main control dial and surrounding buttons allow for easy adjustment of various parameters:

Figura 4.2: Pesteview a preamp controale.

• Controlor: Main rotary dial for adjusting volume and navigating settings.
• Dial LED Lamp / Indicator: Provides visual feedback on settings and battery status.
• Interfață de tip C: Folosit pentru încărcarea bateriei interne.
• BT (Bluetooth): Activates Bluetooth 5.0 connectivity for pairing with external devices (e.g., smartphone) to play background music or accompaniment.
• AUX: Likely an auxiliary input or function related to external audio.
• Reverb: Controls the reverb effect, adding spatial depth to the guitar sound.
• Cor: Controls the chorus effect, creating a thicker, modulated sound.
• Întârziere: Controls the delay effect, producing echoes of the guitar sound.
• Microfon: Adjusts the level or activates the internal microphone pickup.

4.3. SFT (Same Frequency Trans) Technology

The SFT system utilizes a transmission device to vibrate the guitar body, enhancing its natural resonance. This feature allows the guitar to produce a louder, more vibrant sound without requiring an external amplifier. The system picks up the guitar's sound and uses the transmission device to drive the guitar body, increasing its frequency response and making the sound more resonant, solid, and dynamic.

4.4. Dual-Pickup System

Preamp incorporates a dual-pickup system consisting of a piezo pickup and a microphone. This combination ensures that every nuance of your playing is captured, adding richness and dynamics to the guitar's amplified sound. The microphone component requires connection to a speaker system to be effective.

4.5. Digital Signal Processing (DSP)

The system features advanced scientific circuit design with DSP (Digital Signal Processing) for enhanced acoustic dynamics and digital gain output. This ensures high-quality sound processing for the integrated effects and overall output.

Figure 4.3: Internal components and advanced circuit design.

Figure 4.4: Key features including Bluetooth, accompaniment, and DSP vibration effects.

5. Întreținere și îngrijire

• Mențineți unitatea curată ștergând-o cu o cârpă moale și uscată. Evitați utilizarea de produse de curățare abrazive sau solvenți.
• Protejați unitatea de temperaturi extreme, umiditate și lumina directă a soarelui.
• Evitați să scăpați unitatea sau să o supuneți la impacturi puternice.
• Asigurați-vă că portul de încărcare Type-C este lipsit de praf și resturi.
• If the unit will not be used for an extended period, charge the battery periodically to maintain its health.

6. Depanare

• Fără ieșire de sunet:
  • Ensure the unit is powered on and sufficiently charged.
  • Check all cable connections, including the end-pin jack to your amplifier/PA system.
  • Verify that the volume on the preamp si a ta amplifier este ridicat.
  • If using the microphone pickup, ensure it is connected to a speaker system for effectiveness.
• Probleme de conexiune Bluetooth:
  • Asigurați-vă că prealabilamp's Bluetooth function is activated.
  • Make sure your external device's Bluetooth is on and discoverable.
  • Mutați dispozitivele mai aproape unul de celălalt pentru a vă asigura că se află în raza de acțiune.
  • Încercați să anulați asocierea și să reasociați dispozitivele.
• Efectele nu funcționează:
  • Check the effect level controls (Reverb, Chorus, Delay) on the preamp.
  • Ensure the unit is properly installed and receiving signal from the guitar.
• Bateria nu se încarcă:
  • Verify the Type-C cable is securely connected to both the preamp și sursa de alimentare.
  • Încearcă un alt cablu Type-C sau adaptor de alimentare.
  • Asigurați-vă că sursa de alimentare este funcțională.

7. Specificații

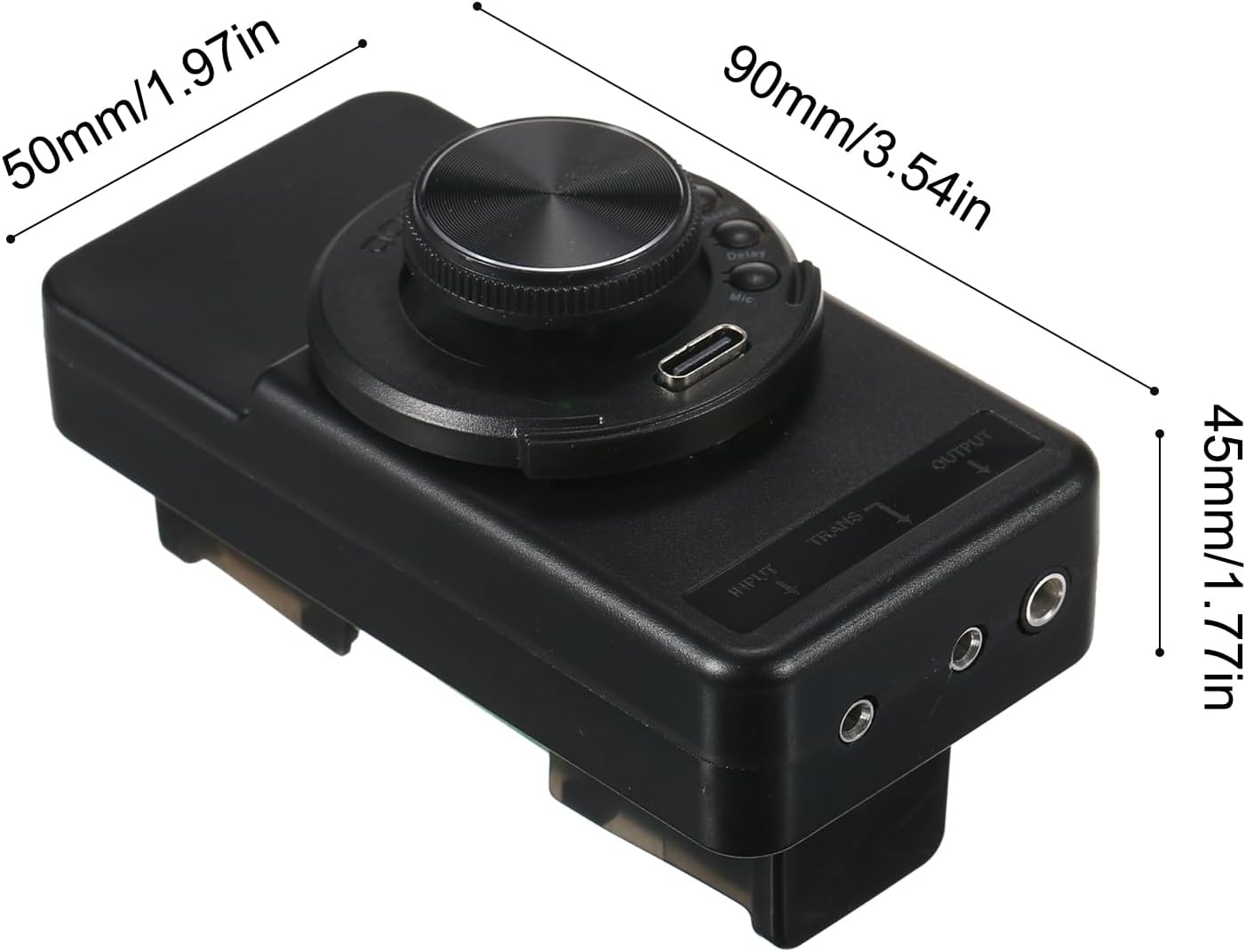

Figure 7.1: Dimensions of the preamp unitate.

8. Garanție și asistență

Specific warranty information for this product is not provided in the available documentation. For any warranty claims, technical support, or service inquiries, please contact the seller or manufacturer directly through your purchase platform. Retain your proof of purchase for any support requests.
