1. Introducere
This manual provides essential information for the proper setup, operation, and maintenance of your new replacement remote control. This remote is designed to be compatible with various car stereo receiver models, including Roadstar RS-2751BR, RS-2750BR, RS-2714BR, RS-2605BR, and Reakosound 820S.
Please ensure your original remote control is identical to the one shown in this manual for full compatibility. While this is a direct replacement, some minor function variations may exist compared to your original unit.
Figura 1: Faţă view of the remote control, showing all buttons and their labels. The remote is white with a black frame and features blue, red, and green accents on its buttons.
2. Configurare
2.1 Instalarea bateriei
The remote control requires one CR2025 coin cell battery for operation. Follow these steps to install or replace the battery:
- Localizați compartimentul bateriei de pe spatele telecomenzii.
- Use a small coin or a flat tool to gently twist the battery cover counter-clockwise to the 'OPEN' position, as indicated by the arrow.
- Introduceți bateria CR2025 cu partea pozitivă (+) în sus.
- Align the battery cover and twist it clockwise to the 'CLOSE' position until it clicks securely into place.
Figura 2: Spate view of the remote control, illustrating the battery compartment and the instructions for opening and closing it for CR2025 battery installation. A small clip accessory is also visible.
3. Instrucțiuni de utilizare
Point the remote control directly at the infrared (IR) receiver on your car stereo. Ensure there are no obstructions between the remote and the receiver.

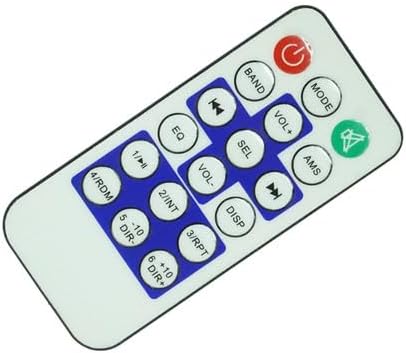

Figura 3: An angled perspective of the remote control, providing a clearer view of the button arrangement and their functions.
3.1 Funcțiile butoanelor
| Buton | Funcţie |
|---|---|
| Putere | Turns the car stereo receiver On/Off. |
| MOD | Switches between different audio sources (e.g., Radio, USB, AUX). |
| Mut | Dezactivează sau activează sunetul ieșirii audio. |
| BANDĂ | Selects radio bands (e.g., FM1, FM2, AM). |
| VOL + / VOL- | Increases / Decreases the volume level. |
| AMS | Automatic Memory Store / Scan. |
| ◀◀ / ▶▶ | Previous / Next track or station. |
| SEL | Selects menu options or enters settings. |
| EQ | Parcurge presetările egalizatorului. |
| DISP | Modifică informațiile afișate. |
| 1/▶‖ | Play/Pause (for media playback). |
| 2 / INT | Intro scan (plays first few seconds of each track). |
| 3 / RPT | Modul de redare repetată. |
| 4 / RDM | Random/Shuffle playback mode. |
| 5/-10 DIR- | Skips back 10 tracks/files or navigates folders. |
| 6/+10 DIR+ | Skips forward 10 tracks/files or navigates folders. |
4. Întreținere
4.1 Curățare
Pentru a curăța telecomanda, folosiți o lavetă moale și uscată. Pentru murdăria persistentă, ștergeți ușorampen the cloth with water or a mild, non-abrasive cleaner. Do not use harsh chemicals, solvents, or abrasive cleaning pads, as these can damage the remote's surface or internal components.
4.2 Depozitare
When not in use for extended periods, store the remote control in a cool, dry place away from direct sunlight and extreme temperatures. If the remote will not be used for several months, it is advisable to remove the battery to prevent leakage and potential damage.
5. Depanare
5.1 Probleme comune și soluții
- Telecomanda nu răspunde:
- Check if the battery is installed correctly with the correct polarity (+/-).
- Înlocuiți bateria CR2025 cu una nouă.
- Ensure there are no obstructions between the remote and the car stereo's IR receiver.
- Verificați dacă telecomanda este îndreptată direct spre receptor.
- Răspuns limitat sau intermitent:
- Replace the battery. A weak battery can reduce the remote's effective range.
- Ensure the IR receiver on the car stereo is clean and free from dust or debris.
- Unele funcții nu funcționează:
- While this remote is a replacement, not all functions may be identical to your original remote. Refer to your car stereo's original manual for specific function details.
- Ensure your car stereo model is listed as compatible in the product title. If your model is not listed, full compatibility cannot be guaranteed.
6. Specificații
- Tip produs: Telecomandă de schimb IR
- Culoare: Negru
- Tip baterie: 1 x CR2025 Coin Cell Battery (included)
- Numărul maxim de dispozitive acceptate: 1
- Dispozitive compatibile: Roadstar RS-2751BR, RS-2750BR, RS-2714BR, RS-2605BR, Reakosound 820S Car Stereo Receivers
- Caracteristici speciale: Ergonomic design, direct IR replacement
7. Garanție și asistență
This product is an aftermarket replacement remote control. For any doubts or issues not covered in this manual, please contact the seller directly for assistance. It is recommended to check your car stereo's original manual for correct remote control compatibility and functions before purchase.
