etoolab Cordless Buffer Polisher P12 User Manual

1. Introducere

This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your etoolab Cordless Buffer Polisher P12. Please read this manual thoroughly before using the device to ensure proper handling and to prevent damage or injury. Keep this manual for future reference.

2. Instrucțiuni de siguranță

Respectați întotdeauna măsurile de siguranță de bază atunci când utilizați unelte electrice pentru a reduce riscul de incendiu, electrocutare și vătămare corporală.

• Siguranța zonei de lucru: Păstrați zona de lucru curată și bine iluminată. Zonele aglomerate sau întunecate pot provoca accidente. Nu utilizați scule electrice în atmosfere explozive, cum ar fi în prezența lichidelor, gazelor sau prafului inflamabile.
• Siguranta electrica: Avoid body contact with earthed or grounded surfaces (e.g., pipes, radiators, ranges, refrigerators). Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Siguranța personală: Always wear eye protection. Use dust mask, non-skid safety shoes, hard hat, or hearing protection when appropriate. Dress properly. Do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
• Utilizarea și îngrijirea uneltelor: Nu forțați scula electrică. Folosiți scula electrică corectă pentru aplicația dumneavoastră. Deconectați acumulatorul de la scula electrică înainte de a efectua orice reglaje, schimba accesorii sau depozita sculele electrice.
• Utilizarea și îngrijirea bateriei: Reîncărcați numai cu încărcătorul specificat de producător. Nu utilizați baterii cu alte scule electrice. Când bateria nu este utilizată, țineți-o departe de alte obiecte metalice.

3. Conținutul pachetului

Verificați dacă toate articolele enumerate mai jos sunt incluse în colet. Dacă lipsesc sau sunt deteriorate articole, vă rugăm să contactați serviciul de asistență pentru clienți.

• 1x Cordless Buffer Polisher
• 2x Lithium Batteries (12V, 2000mAh)
• 1x încărcător rapid
• 6x Sponge Pads (various densities/colors)
• 2x Wool Pads
• 4x Towel Pads
• 3x Sandpaper (2000 grit)
• 2x Towels
• 1x Apron
• Punga de stocare 1x

Image 3.1: Contents of the etoolab Cordless Buffer Polisher P12 kit, including the polisher unit, two batteries, charger, various pads, sandpaper, towels, apron, and a storage bag.

Imaginea 3.2: O imagine detaliată view of the various polishing pads (sponge, wool, towel) and sandpaper included in the kit, each designed for different detailing tasks.

4. Produs terminatview

The etoolab Cordless Buffer Polisher P12 is designed for efficient and convenient vehicle detailing. It features a lightweight design, an ergonomic grip, and a powerful 2-pole motor.

4.1 Caracteristici cheie

• Afișaj digital LED: Shows current speed, battery level, and gear setting.
• Funcție de pornire ușoară: Ensures a gradual increase in speed from 0 RPM, preventing sudden jolts and improving control.
• 6 de viteze variabile: Adjustable speed settings from 2000 to 5000 RPM for various applications.
• Design fără fir: Provides freedom of movement without the restriction of power cords.
• Ușoare: Weighs approximately 2.3 pounds (1.04 kg) for comfortable handling.
• Efficient 2-pole Motor: Offers stable performance with lower noise compared to traditional 4-pole motors.

Image 4.1: The etoolab polisher demonstrating its lightweight nature and ergonomic grip for user comfort and maneuverability. The image also illustrates the benefit of cordless operation.

Image 4.2: Close-up of the polisher's LED digital display, indicating the current RPM, battery charge level, and selected speed setting (gear).

5. Configurare

5.1 Încărcarea bateriei

1. Conectați încărcătorul rapid la o priză electrică standard.
2. Glisați bateria pe încărcător până când se fixează în poziție cu un clic.
3. Allow approximately 60 minutes for a full charge. The charger indicator light will change to indicate a full charge.
4. Scoateți bateria din încărcător odată ce este complet încărcată.

Nota: The kit includes two batteries, allowing for continuous operation by alternating charged batteries.

5.2 Instalarea bateriei

1. Asigurați-vă că mașina de lustruit este oprită.
2. Align the charged battery pack with the battery slot at the base of the polisher handle.
3. Slide the battery into the slot until it locks securely into place.

5.3 Atașarea discurilor de lustruit

The polisher features a hook-and-loop backing pad for easy attachment and removal of accessories.

1. Select the appropriate sponge, wool, or towel pad for your task.
2. Aliniați discul ales cu discul de suport cu arici de pe mașina de lustruit.
3. Press the pad firmly onto the backing pad to ensure a secure attachment.

6. Instrucțiuni de utilizare

6.1 Pornire/Oprire

Press the power button to turn the polisher on. Press it again to turn it off. The LED display will illuminate upon activation.

6.2 Reglarea vitezei

The polisher offers 6 variable speed settings, displayed on the LED screen. Use the speed adjustment buttons (typically '+' and '-') to cycle through the speeds.

• Speed 1-3 (2000-3000 RPM): Ideal for applying waxes, sealants, and glazes.
• Speed 4-6 (3000-5000 RPM): Suitable for polishing and removing paint defects.

Image 6.1: Visual comparison of a car surface before and after polishing, demonstrating improved water repellency and reduced water damage adhesion.

6.3 Application Guide

Select the appropriate pad and speed setting based on the task:

• curatenie: Use towel pads and lower speeds for general cleaning.
• Deep Scratches: Wool pads with higher speeds may be used for more aggressive correction, followed by finer pads.
• Orange Peel/Sunburn & Swirl Marks: Orange or yellow sponge pads with medium to high speeds are effective for these imperfections.
• Polishing & Waxing: Black sponge pads or towel pads with lower speeds are suitable for finishing and applying protective layers.
• Șlefuire: The included 2000 grit sandpaper can be used for fine sanding on wood, furniture, or specific automotive applications, always with caution and appropriate technique.

Image 6.2: A visual guide illustrating the various types of pads (towels, wool, orange, yellow, black sponge pads, and sandpaper) and their corresponding applications, such as cleaning, deep scratch removal, orange peel correction, swirl mark removal, polishing, waxing, and fine sanding.

Notă despre videoclipuri: The provided product data indicates the presence of videos, but specific URLs and metadata (like creator type) required for embedding were not available. Therefore, no videos could be embedded in this manual.

7. Întreținere

Întreținerea regulată asigură longevitatea și performanța optimă a mașinii dumneavoastră de lustruit.

• curatenie: After each use, wipe down the polisher body with a clean, dry cloth. Remove any residue from the backing pad.
• Îngrijirea pernuțelor: Clean used pads thoroughly with appropriate cleaning solutions and allow them to air dry completely before storage.
• Stocare baterie: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge batteries to approximately 50% capacity.
• Inspecție generală: Periodically check the power tool for any signs of damage, loose screws, or worn parts. Do not use a damaged tool.

8. Depanare

If you encounter issues with your etoolab Cordless Buffer Polisher, refer to the following common problems and solutions:

9. Specificații

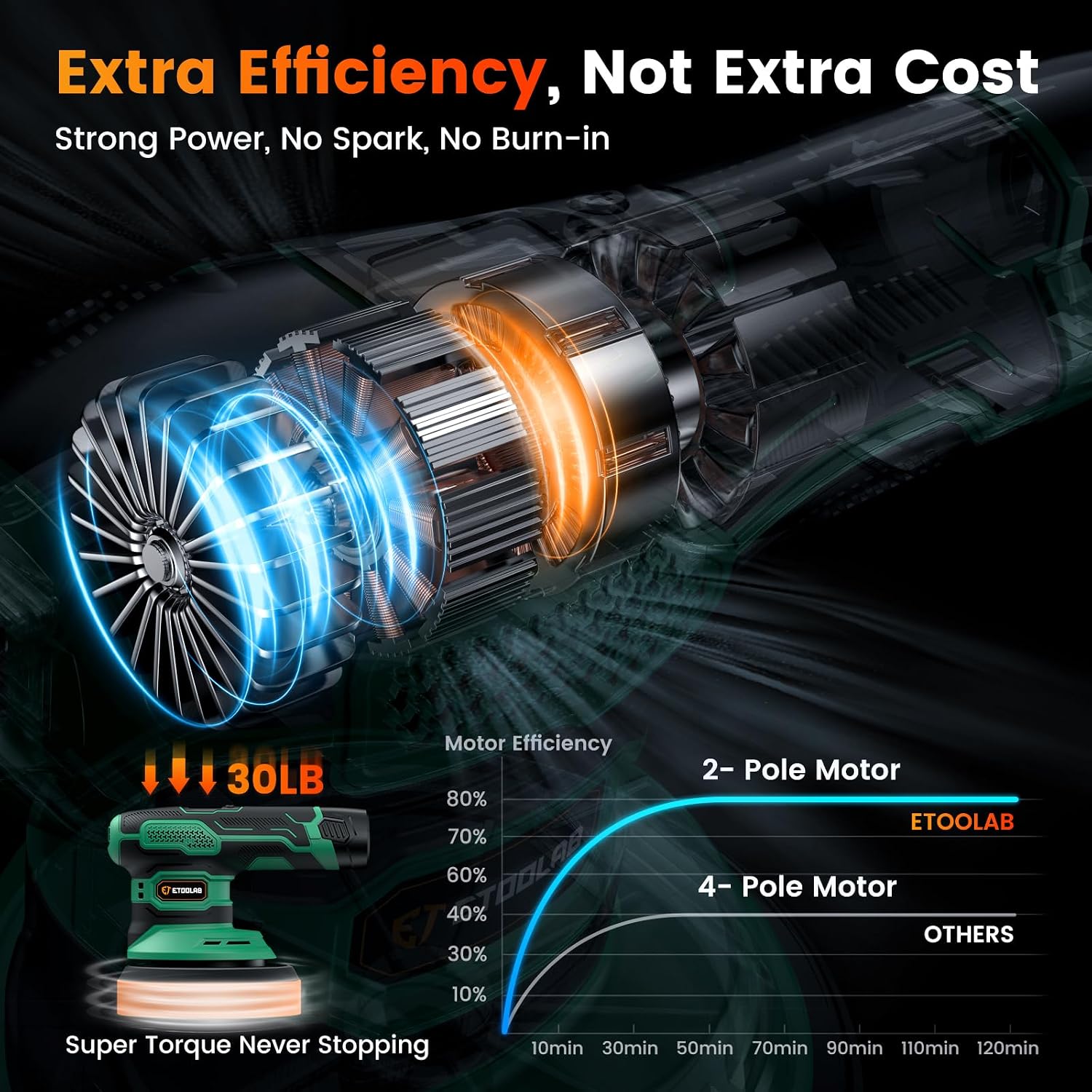

Image 9.1: A graph illustrating the motor efficiency over time, comparing the 2-pole motor used in the etoolab polisher with a traditional 4-pole motor, highlighting the improved efficiency of the 2-pole design.

10. Garanție și asistență

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official etoolab brand store. Keep your purchase receipt as proof of purchase.

etoolab Brand Store: Visit the etoolab Store
