Introducere
This manual provides detailed instructions for assembling your MindXplore 3D Steampunk Metal Dragonfly Model. This kit allows you to construct a detailed mechanical dragonfly, featuring intricate metal parts and a unique design inspired by the Phyothemis Fuliginosa. The model is crafted from high-quality stainless steel, iron, and copper components, designed for a rewarding assembly experience.
Image: The fully assembled MindXplore 3D Steampunk Metal Dragonfly Model, showcasing its metallic finish and intricate details.
Informații de siguranță
- Recommended age for assembly: 14 years and older.
- This kit contains small parts. Keep out of reach of young children to prevent choking hazards.
- Handle metal parts carefully to avoid sharp edges.
- Use provided tools as instructed. Do not apply excessive force to avoid damage to parts or injury.
Configurare și asamblare
The assembly process involves over 200 parts and typically takes approximately 2 hours. No glue is required; assembly is completed using screws and screwdrivers. Ensure you have a clean, well-lit workspace.
1. Unpacking and Part Verification
Carefully unpack all components. The kit includes all necessary tools, such as pliers and screwdrivers. Verify that all parts are present by comparing them with the included parts list diagram.
Imagine: Pesteview of the kit contents, showing individually numbered bags of parts, assembly instructions, and included tools like pliers and screwdrivers.
Imagine: O imagine detaliată view of the parts list diagram, essential for verifying all components before starting assembly.
2. Following Assembly Instructions
Refer to the comprehensive assembly instructions provided in the kit. Each step is illustrated to guide you through the process. Pay close attention to the orientation of parts and the correct screws for each connection.
- Ansamblu aripi: The wings feature clear, wear-resistant textures. Attach them according to the diagrams, ensuring proper alignment.
- Body and Head Assembly: Connect the body and head sections, integrating the intricately carved metal accents.
- Atașarea piciorului: Secure the legs to the main body. Ensure all six legs are firmly attached.
- Secțiunea coadă: Assemble the segmented tail, ensuring each piece is correctly aligned and secured.
Image: A close-up of the dragonfly wings, highlighting their detailed texture and design, ready for assembly.
Image: Another perspective of the dragonfly wings, showing their translucent and patterned structure.
Imagine: O imagine detaliată view of the head and body components, featuring small gears and decorative elements.
Image: The display base for the dragonfly model, featuring a golden finish and gear-like embellishments.
Operare și afișare
Once assembled, your 3D Steampunk Metal Dragonfly Model is designed for display. It is a static model, not intended for active play, especially by young children, due to its delicate nature and small components.
- Place the finished model on a stable, flat surface, ideally using the provided display base.
- Avoid handling the model roughly to prevent parts from twisting or loosening.
- Keep the model away from direct sunlight or extreme temperatures to preserve its material integrity.

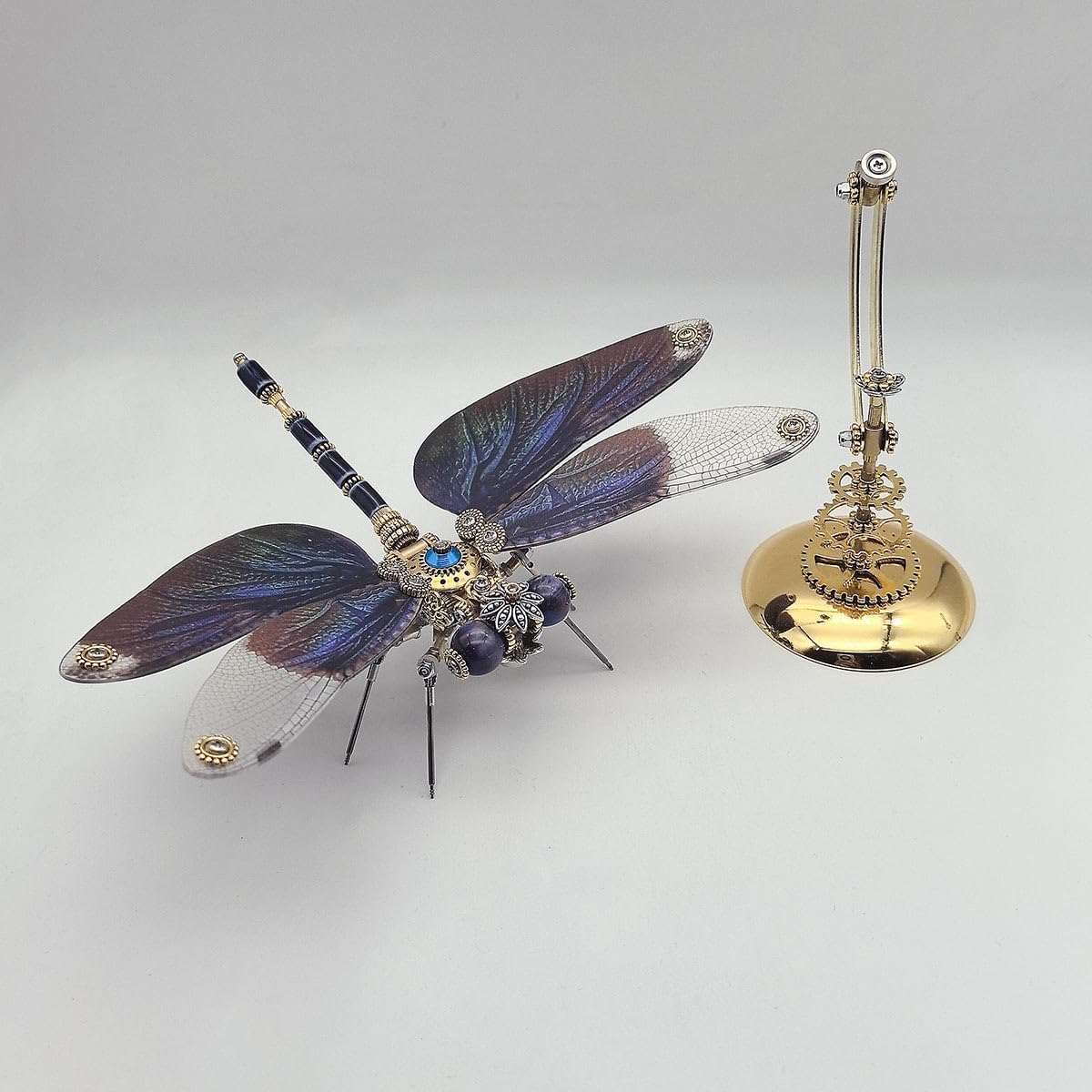

Image: The assembled dragonfly model positioned next to its golden display stand, ready for placement.
Întreţinere
To maintain the appearance and integrity of your metal dragonfly model:
- Dust regularly with a soft, dry cloth or a soft brush to remove accumulated dust.
- Do not use abrasive cleaners or solvents, as these can damage the metal finish and wing textures.
- Periodically check screws for tightness. Gently tighten any loose screws using the appropriate screwdriver.
Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Piese lipsă sau deteriorate | Manufacturing defect or oversight during packaging. | Contact MindXplore customer support immediately with your purchase details and a description of the missing/damaged parts. Refer to the parts list for identification. |
| Dificultate la înțelegerea instrucțiunilor | Illustrations may lack detail or perspective. | Review the diagrams carefully. Try to visualize the 3D orientation of parts. If still unclear, search for online assembly videos or contact support for clarification. |
| Screws not reaching or fitting properly | Incorrect screw length for a specific connection, or a recessed tube piece. | Ensure you are using the correct screw size for the designated step. If a tube piece has a recessed end, a longer screw might be needed. If the provided screws are consistently too short, contact customer support for assistance. Do not force screws, as this can strip threads. |
| Parts loosening or falling off after assembly | Screws not tightened sufficiently or excessive handling. | Gently re-tighten all screws. Avoid excessive handling of the finished model. If parts continue to loosen, a small amount of thread-locking fluid (not included) can be applied to screw threads, but use sparingly and with caution. |
| Provided tools (e.g., pliers) break or are ineffective | Tool quality or improper use. | If the provided tools are inadequate, use your own small precision tools if available. For tool replacement, contact customer support. |
Specificații
- Marca: MindXplore
- Număr de model: NPCFU4408W5335X5Z8O176
- Material: Copper, Aluminium, Engraved Metal
- Numar de piese: 200
- Assembled Dimensions (L x W): Approximately 5.9" x 5.5" (15cm x 14cm)
- Greutatea articolului: 120 g
- Varsta recomandata: 14+ ani
- Timp de asamblare: Aproximativ 2 ore
- Mod de operare: Manual (assembly)
- Componente incluse: Model Toy (parts for assembly), tools
garanție
MindXplore provides a Garanție de 1 ani pentru piese for this product. This warranty covers manufacturing defects and missing components. Please retain your proof of purchase for warranty claims.
For warranty service, contact MindXplore customer support with your purchase details and a description of the issue.
Asistență pentru clienți
If you encounter any issues during assembly or have questions about your MindXplore 3D Steampunk Metal Dragonfly Model, please contact our customer support team.
Pentru asistență, vizitați MindXplore Store on Amazon sau consultați informațiile de contact furnizate pe ambalajul produsului.
