ETOOLAB 1/2" Torque Wrench Set (Model ET-TW230N) Instruction Manual

Introducere

This manual provides essential instructions for the safe and effective use of your ETOOLAB 1/2" Torque Wrench Set. Please read this manual thoroughly before operation and retain it for future reference. This set is designed for precise torque application in automotive, motorcycle, and other mechanical tasks, ensuring fasteners are tightened to their specified values.

Conținutul produsului

The ETOOLAB 1/2" Torque Wrench Set (Model ET-TW230N) includes the following components:

• 1/2" Drive Torque Wrench (20-230 N·m / 10-170 lbf·ft range)
• 1/2" to 3/8" Drive Adapter
• 10" Extension Bar
• Articulație universală
• Adaptor de foraj
• 17 x Chei tubulare (diferite dimensiuni)
• Durable Tool Box
• Manual de utilizare

Figure 1: Included components of the ETOOLAB 1/2" Torque Wrench Set.

Informații de siguranță

Always observe the following safety precautions when using the torque wrench:

• Purtați echipament individual de protecție adecvat, cum ar fi ochelari de protecție.
• Asigurați-vă că piesa de prelucrat este fixată bine înainte de a aplica cuplul de strângere.
• Do not use the torque wrench as a breaker bar or for loosening fasteners.
• Avoid dropping the wrench, as this can affect its calibration.
• Keep the wrench clean and free from oil or grease to maintain a secure grip.
• Store the torque wrench at its lowest torque setting when not in use to relieve spring tension and maintain accuracy.

Înființat

Before first use, familiarize yourself with the wrench components and ensure all accessories are present.

1. Inspectați cheia: Check for any visible damage or wear. Do not use if damaged.
2. Selectați priza corectă: Choose the appropriate socket size for your fastener. Attach it firmly to the 1/2" drive square of the torque wrench. Use adapters or extension bars as needed.
3. Understand the Scale: The wrench features a dual-scale design for both Newton-meters (N·m) and pound-feet (lbf·ft). The main scale is on the wrench body, and the fine adjustment scale is on the handle.

Figure 2: Dual-scale design for precise torque setting.

Instrucțiuni de operare

Follow these steps to accurately apply torque:

1. Deblocați mânerul: Rotate the locking knob at the base of the handle counter-clockwise to unlock it.
2. Set the Desired Torque:
   • Rotate the handle to align the top edge of the handle with the desired major torque value on the main scale (e.g., 20 N·m).
   • Continue rotating the handle until the zero mark on the fine adjustment scale aligns with the vertical line of the main scale.
   • For fine adjustments, rotate the handle further until the desired minor value on the fine adjustment scale aligns with the vertical line. For example, to set 23 N·m, set the main scale to 20 N·m, then rotate the handle until the '3' mark on the fine adjustment scale aligns with the vertical line.
3. Blocați mânerul: Rotate the locking knob clockwise until it is tight to secure the torque setting.
4. Select Drive Direction: Use the lever on the wrench head to select the desired tightening direction (clockwise or counter-clockwise).
5. Aplicați cuplul: Place the socket onto the fastener. Apply smooth, steady pressure to the handle until you hear and feel a distinct "click." This "click" indicates that the preset torque value has been reached. Stop applying force immediately after the click.

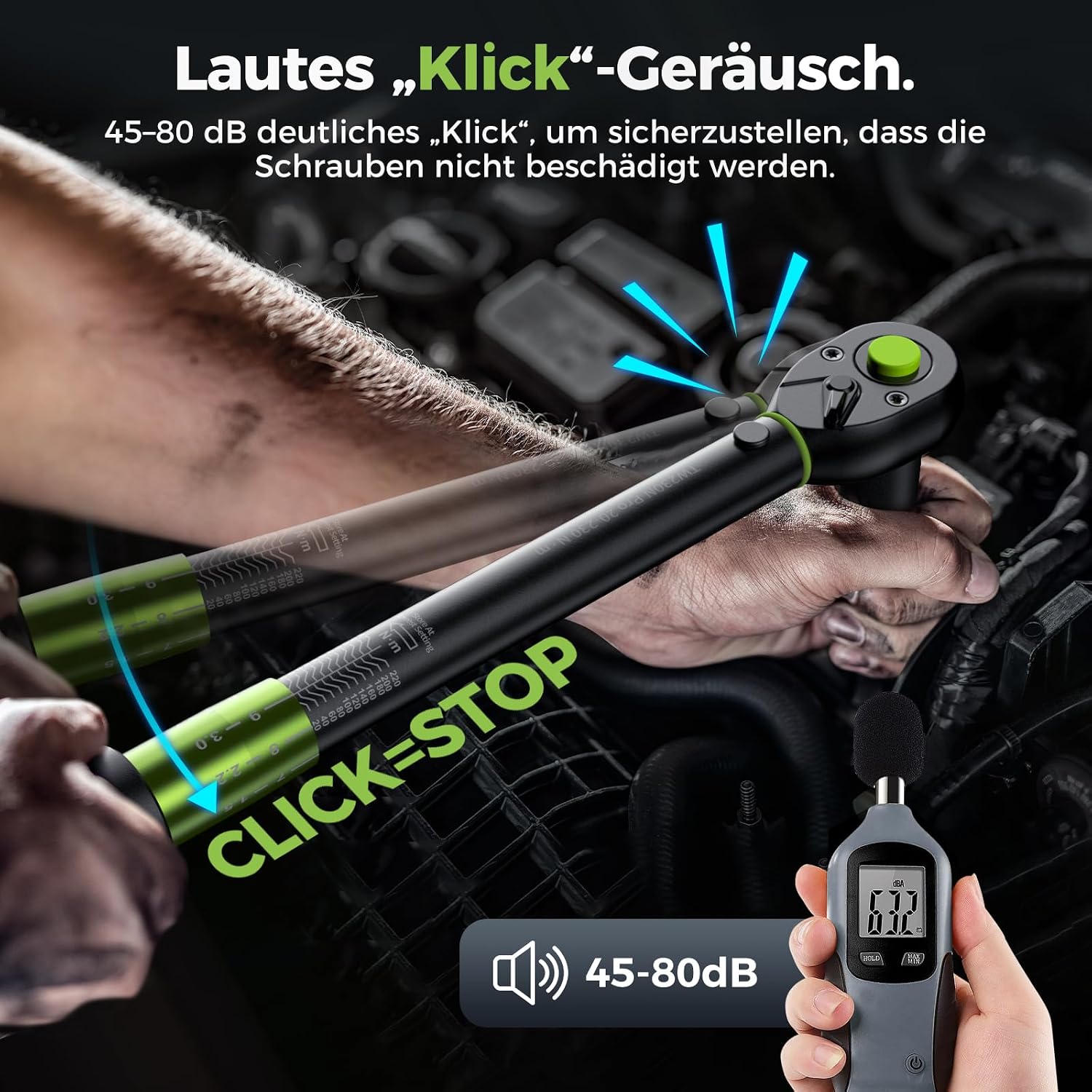

Figure 3: The audible and tactile "click" indicates target torque is reached.

Important: Do not continue to apply force after the click, as this will overtighten the fastener and can damage the wrench or the component.

Întreţinere

Proper maintenance ensures the longevity and accuracy of your torque wrench:

• curatenie: Wipe the wrench clean with a dry, soft cloth after each use. Do not use solvents or harsh chemicals.
• Depozitare: Always return the torque wrench to its lowest torque setting (20 N·m or 10 lbf·ft) before storing it in its protective case. This relieves tension on the internal spring mechanism.
• Calibrare: Torque wrenches are precision instruments. Regular calibration is recommended to maintain accuracy, especially after heavy use or if dropped. Refer to the included calibration certificate for details.

Figure 4: Calibration certificate ensures accuracy.

Depanare

If you encounter issues with your torque wrench, consider the following:

• No Click Sound: Ensure the torque setting is above the minimum range. If the fastener is already tight, the click may be less pronounced. If the wrench has been dropped, its calibration may be affected.
• Citiri inexacte: Verify the torque setting is correctly locked. Ensure the wrench is pulled smoothly and steadily. If accuracy is still in doubt, professional recalibration is recommended.
• Difficulty Adjusting Torque: Ensure the locking knob is fully disengaged. Clean any debris from the adjustment mechanism.

Specificații

Figure 5: Key features and dimensions of the torque wrench.

Garanție și suport

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official ETOOLAB webPăstrați dovada achiziției pentru reclamații în garanție.
