1. Introducere

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your etoolab W7L Electric Pressure Washer. Please read these instructions thoroughly before assembly or use to ensure proper function and to prevent injury or damage.

The etoolab W7L Electric Pressure Washer is designed for various cleaning tasks, offering a maximum pressure of 4200 PSI and a water flow rate of 2.6 GPM. It is suitable for cleaning surfaces such as concrete, pavements, driveways, brick walls, patios, decks, walkways, RVs, boats, and outdoor furniture.

Image 1.1: etoolab W7L Electric Pressure Washer demonstrating its cleaning power.

2. Instrucțiuni de siguranță

Always follow basic safety precautions when using this product to reduce the risk of fire, electric shock, or serious injury.

• Citiți toate instrucțiunile: Familiarizați-vă cu comenzile și utilizarea corectă a aparatului de spălat cu presiune.
• Instrucțiuni de împământare: This product must be grounded. If it malfunctions or breaks down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
• Siguranța personală: Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and protective clothing. Do not operate the pressure washer barefoot or with open-toed footwear.
• Evitați pulverizarea directă: Never direct the water spray at people, pets, electrical devices, or the unit itself. High-pressure spray can cause serious injury.
• Conexiuni sigure: Ensure all hose connections are tight and secure before operating. The unit features a secure hose lock to prevent leaks.
• Blocare declanșare: Utilize the handle safety lock on the spray gun to prevent accidental activation when not spraying.
• Sursa de apa: Connect the pressure washer to a cold water supply only. Do not use hot water.
• Siguranta electrica: Do not operate the pressure washer if the power cord or plug is damaged. Avoid using extension cords unless absolutely necessary and ensure they are rated for outdoor use and the appliance's power requirements.
• Copii și martori: Țineți copiii și trecătorii departe de zona de operare.
• Funcționare stabilă: The anti-tipping design and wheels enhance stability. Always operate on a stable, level surface.

Image 2.1: Pressure hose lock and spray gun safety lock features.

3. Conținutul pachetului

Verify that all items are present in the package before beginning assembly. If any parts are missing or damaged, contact customer support.

• etoolab W7L Electric Pressure Washer Unit
• Pistol de pulverizare de înaltă presiune
• High-Pressure Hose (6 meters / approximately 19.7 feet)
• Power Cable (29 feet)
• Duze cu conectare rapidă (0°, 15°, 25°, 40°)
• External Foam Cannon (500 ml tank volume)
• Conector intrare apă
• Pin de curățare a duzei
• Manual de utilizare

Imaginea 3.1: Pesteview of the etoolab W7L Electric Pressure Washer and its accessories.

4. Configurare

Urmați acești pași pentru a asambla și pregăti mașina de spălat cu presiune pentru utilizare.

1. Atașați roțile și mânerul: Secure the wheels and handle to the main unit according to the diagrams in the quick start guide (if provided).
2. Conectați furtunul de înaltă presiune: Connect one end of the high-pressure hose to the pressure washer's outlet and the other end to the spray gun. Ensure the hose lock mechanism is engaged for a secure, leak-proof connection.
3. Conectați alimentarea cu apă: Attach a garden hose (not included) to the water inlet connector on the pressure washer. Ensure the connection is tight. The pressure washer can draw water directly from a faucet or a bucket. If drawing from a bucket, ensure the inlet hose is fully submerged and free of air.
4. Conectare alimentare: Plug the power cable into a grounded electrical outlet. Ensure the outlet meets the power requirements of the unit.
5. Eliminarea aerului din sistem: Before turning on the power, turn on the water supply. Squeeze the trigger on the spray gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges from the nozzle.

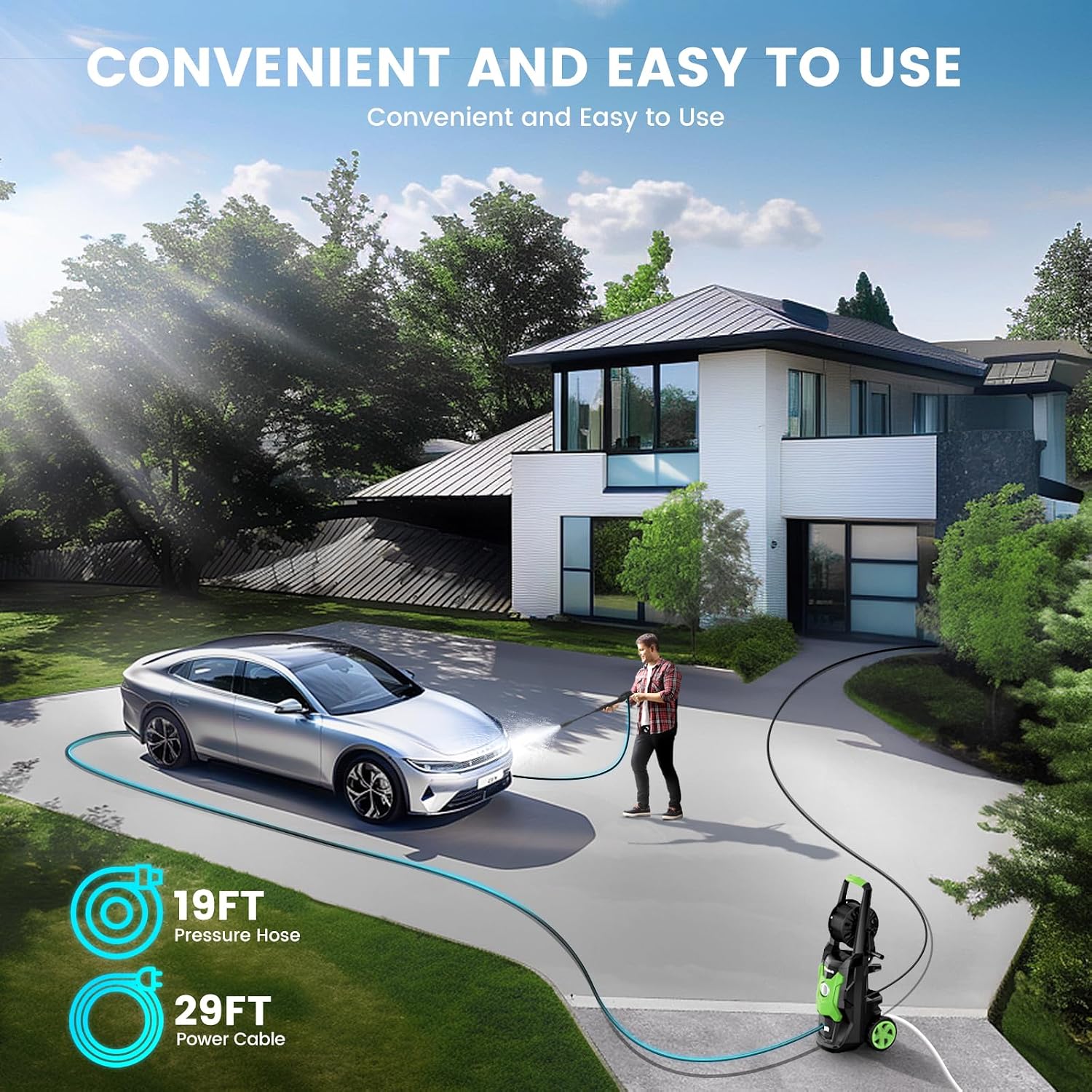

Image 4.1: Pressure washer setup, illustrating hose and power cable reach.

5. Instrucțiuni de utilizare

Once assembled and connected, follow these steps for safe operation.

1. Selectați duza: Choose the appropriate quick-connect nozzle for your cleaning task (refer to Section 6). Insert the nozzle firmly into the spray gun until it clicks into place.
2. Porniți alimentarea: Flip the ON/OFF switch on the pressure washer to the 'ON' position. The motor will start.
3. Începeți curățarea: Aim the spray gun at the surface to be cleaned, keeping a safe distance. Release the safety lock on the spray gun handle and squeeze the trigger to begin spraying.
4. Reglați distanța: Adjust the distance between the nozzle and the cleaning surface to control the cleaning intensity. Start further away and move closer as needed.
5. Folosind tunul cu spumă: Fill the external foam cannon with appropriate pressure washer detergent. Attach it to the spray gun. The foam cannon allows for efficient application of soap before high-pressure rinsing.
6. Închidere: When finished, release the spray gun trigger and engage the safety lock. Turn the pressure washer's ON/OFF switch to 'OFF'. Turn off the water supply. Squeeze the spray gun trigger to release any remaining pressure in the system.
7. Deconecta: Disconnect the garden hose and then the high-pressure hose.

Image 5.1: Cleaning a patio surface with the pressure washer.

Image 5.2: Cleaning a glass surface with the pressure washer.

Image 5.3: Washing a car using the foam cannon attachment.

6. Nozzle Selection Guide

The etoolab W7L includes four quick-connect nozzles and an external foam cannon, each designed for specific cleaning tasks.

• Vârf 0° (Roșu): Provides an ultra-high pressure, pinpoint stream. Use for dissolving stubborn substances on hard, non-delicate surfaces. Exercise extreme caution.
• Vârf 15° (galben): Provides high pressure with a 15-degree fan spray. Suitable for concrete, gold bricks, and other hard surfaces requiring concentrated cleaning.
• 25° Tip (Green): Provides medium pressure with a 25-degree fan spray. Ideal for general cleaning of wood decks, siding, and other surfaces that require less aggressive cleaning.
• Vârf la 40° (alb): Provides low pressure with a 40-degree wide fan spray. Best for cleaning windows, screens, and other fragile surfaces, or for applying detergents.
• Foam Jug: For applying soap or detergent. Fill with appropriate cleaning solution and attach to the spray gun for a wide, even foam application.

Image 6.1: Quick-connect nozzle tips and their applications.

7. Întreținere

Întreținerea regulată asigură longevitatea și performanța optimă a mașinii de spălat cu presiune.

• Curățarea duzei: If a nozzle becomes clogged, use the included nozzle cleaning pin to clear any debris.
• Filtrul de intrare a apei: Verificați și curățați periodic filtrul de admisie a apei pentru a preveni pătrunderea reziduurilor în pompă.
• Inspecția furtunurilor și cablurilor: Regularly inspect the high-pressure hose and power cord for any signs of damage, kinks, or wear. Replace damaged components immediately.
• Depozitare: After each use, drain all water from the pump, hoses, and spray gun. Store the pressure washer in a dry, frost-free area. The unit features integrated storage for the spray gun, soap dispenser, pressure hose, and power cord.
• winterization: In cold climates, use a pump protector or non-toxic antifreeze solution to prevent freezing damage to the pump during storage.

Image 7.1: All-in-one storage solutions for the pressure washer components.

8. Depanare

Consultați această secțiune pentru soluții la problemele comune.

9. Specificații

10. Garanție și asistență

For warranty information or technical assistance, please contact etoolab customer support. Keep your purchase receipt as proof of purchase.

Informații de contact ale producătorului: support@etoolab.com
