GGM Gastro TG700ND Stainless Steel Freezer ECO - Instruction Manual

1. Introducere și Pesteview

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your GGM Gastro TG700ND ECO Stainless Steel Freezer. This high-quality commercial freezer features an ECO design, 60 mm insulation, a powerful cooling motor, and a digital thermostat for precise temperature control. It is designed for professional use, offering strong and consistent cooling with low power consumption.

Caracteristicile cheie includ:

• High-quality AISI 430 stainless steel construction for both interior and exterior.
• Net volume of 440 liters.
• Temperature range: -18 °C to -22 °C.
• Environmentally friendly R290 refrigerant, CFC-free.
• Ventilated cooling with automatic defrost function.
• Integrated door lock for security.
• Equipped with 4 swivel wheels for easy repositioning.

2. Instrucțiuni de siguranță

Please read all safety instructions carefully before installing, operating, or performing maintenance on the appliance. Failure to follow these instructions may result in serious injury or damage to the unit.

• Siguranta electrica: Asigurați-vă că aparatul este conectat la o priză electrică împământată corespunzător și cu voltajul corect.tage (230V / 1N/PE / 50 Hz). Do not use extension cords or adapters. Disconnect power before any cleaning or maintenance.
• Agent frigorific: Acest aparat folosește agent frigorific R290. Operațiunile de service trebuie efectuate numai de către personal calificat. Nu deteriorați circuitul de agent frigorific.
• Ventilare: Ensure adequate ventilation around the cooling unit. Do not block air vents.
• Instalare: Installation should be performed by a qualified technician. The appliance is heavy; use appropriate lifting equipment and techniques.
• curatenie: Always disconnect the power supply before cleaning. Use non-abrasive cleaners.
• Copii: Țineți copiii departe de aparat.
• Materiale inflamabile: Nu depozitați substanțe explozive sau materiale inflamabile în interiorul congelatorului.

3. Configurare

3.1 Despachetarea

Carefully remove all packaging materials. Inspect the freezer for any damage incurred during transit. Report any damage to your supplier immediately.

3.2 Poziționare și nivelare

Place the freezer on a firm, level surface capable of supporting its weight (126 kg). Ensure there is sufficient space around the unit for proper air circulation, especially at the top and sides where the cooling unit is located. The appliance comes with 4 swivel wheels for easy repositioning.

Imagine: față view of the GGM Gastro TG700ND freezer, illustrating its external dimensions of 2010mm height, 740mm width, and 830mm depth. This helps in planning the installation space.

Imagine: Laterală view of the GGM Gastro TG700ND freezer, highlighting the ventilation grilles on the upper side. Ensure these areas are not obstructed for optimal performance.

3.3 Conexiune electrică

Connect the freezer to a dedicated 230V / 1N/PE / 50 Hz electrical outlet. Ensure the circuit is protected by a suitable fuse or circuit breaker. Do not overload the circuit.

3.4 Curățarea inițială

Înainte de prima utilizare, curățați interiorul și exteriorul congelatorului cu un detergent blând și apă caldă. Clătiți bine și uscați complet.

3.5 Door Hinge and Lock

The door hinge is reversible, allowing for flexible installation. The freezer is equipped with an integrated door lock for securing contents; a key is included with the delivery.

4. Instrucțiuni de utilizare

4.1 Pornire

After connecting the freezer to the power supply, the digital display will illuminate. The freezer will begin to cool down to the factory preset temperature.

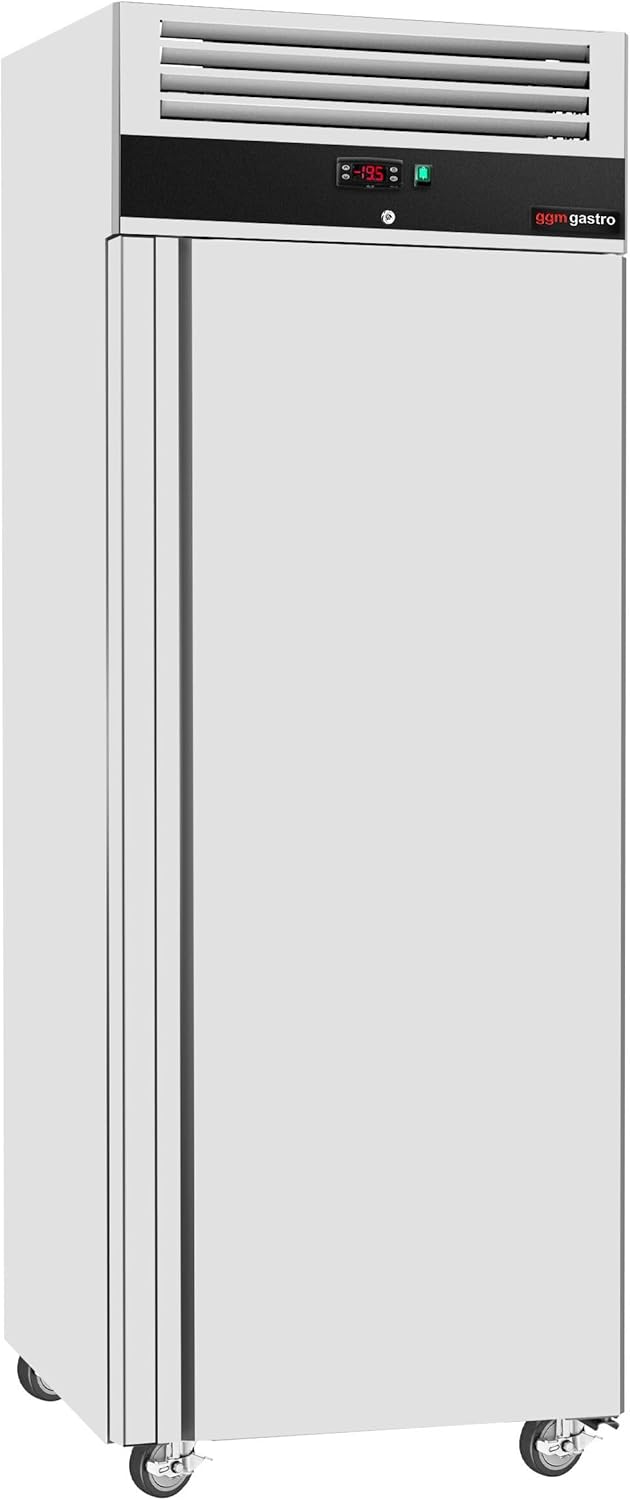

Imagine: față view of the GGM Gastro TG700ND freezer, showing the digital display panel at the top, which indicates the current internal temperature.

4.2 Setarea temperaturii

The digital thermostat allows for precise temperature control. The recommended operating temperature range for this freezer is -18 °C to -22 °C. Refer to the specific instructions provided with the digital controller for detailed steps on adjusting the temperature settings.

4.3 Încărcarea congelatorului

Allow the freezer to reach the desired operating temperature before loading it with products. Distribute items evenly on the three GN 2/1 support grids to ensure optimal air circulation and cooling efficiency. Do not block the internal air vents.

Imagine: Interior view of the GGM Gastro TG700ND freezer with the door open, revealing the empty stainless steel shelves and rounded inner corners, ready for product loading.

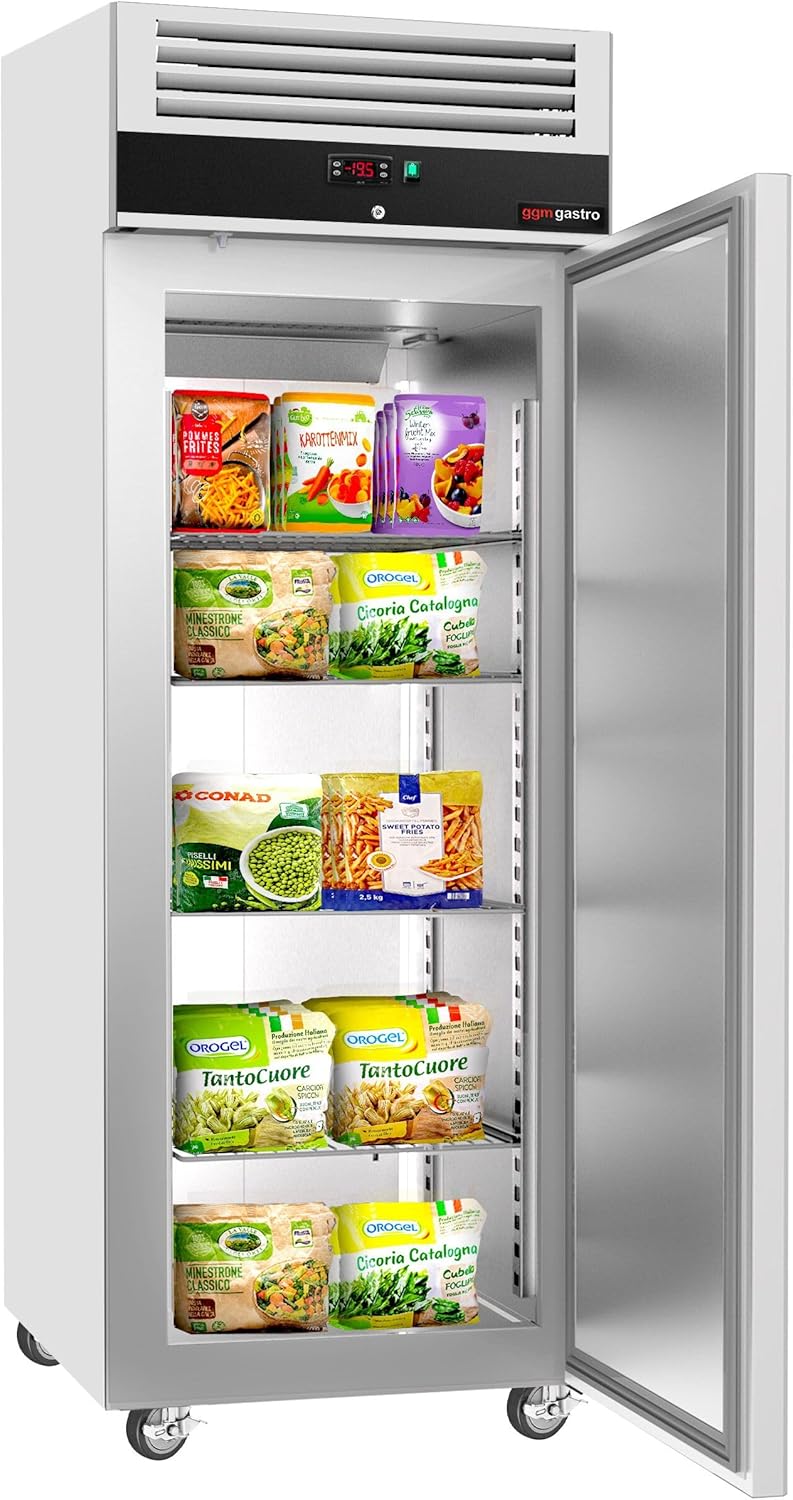

Imagine: Interior view of the GGM Gastro TG700ND freezer with the door open, demonstrating how frozen food items can be organized on the shelves for efficient storage.

4.4 Funcția de dezghețare automată

The freezer is equipped with an automatic defrost function, which helps prevent ice buildup on the evaporator coils. Water from the defrost cycle is typically evaporated automatically. Regular manual defrosting is generally not required under normal operating conditions.

5. Întreținere

Regular maintenance ensures the longevity and efficient operation of your freezer.

5.1 Curățarea interiorului și a exteriorului

Clean the interior and exterior surfaces regularly with a mild, non-abrasive detergent and warm water. Avoid using harsh chemicals or abrasive pads that could damage the stainless steel finish. Ensure the appliance is disconnected from power before cleaning.

5.2 Garnituri de ușă

Inspect the door seals regularly for cracks or damage. Clean them with warm, soapy water to maintain a tight seal. The door seals are easily replaceable for simple maintenance.

5.3 Curățarea serpentinei condensatorului

The condenser coil, located near the cooling unit, should be cleaned periodically to ensure efficient operation. Dust and debris can accumulate, reducing cooling efficiency. This task should ideally be performed by a qualified technician.

5.4 Broasca usa

The integrated door lock provides security for your stored goods. Use the provided key to lock and unlock the door as needed.

Image: Close-up of the integrated door lock on the GGM Gastro TG700ND freezer, showing the key inserted. This lock provides security for the freezer's contents.

6. Depanare

Înainte de a contacta serviciul de asistență, vă rugăm să verificați următoarele probleme frecvente:

• Congelatorul nu răcește: Check if the power cord is securely plugged in. Verify the circuit breaker or fuse. Ensure the thermostat is set to the correct temperature.
• Zgomot excesiv: Check if the freezer is level. Ensure there is no obstruction to the fan or cooling unit.
• Ușa nu etanșează corect: Inspect the door gasket for damage or debris. Ensure the freezer is level.
• Temperature too high/low: Verify thermostat settings. Ensure the door is not left open frequently or for extended periods. Check for proper ventilation around the unit.

If the problem persists after checking these points, disconnect the appliance from the power supply and contact GGM Gastro customer service or a qualified technician.

7. Specificații

8. Garanție și asistență

For warranty information, please refer to your purchase documentation or contact your supplier. GGM Gastro products are manufactured according to hygiene and safety guidelines and bear the CE mark.

For technical support, spare parts, or service inquiries, please contact GGM Gastro customer service directly. Ensure you have your model number (TG700ND) and purchase details available when contacting support.
