Avanti Handheld HVLP Paint & Stain Sprayer User Manual

1. Informații importante privind siguranța

Citiți toate avertismentele și instrucțiunile de siguranță înainte de a utiliza acest produs. Nerespectarea avertismentelor și instrucțiunilor poate duce la electrocutare, incendiu și/sau vătămări corporale grave.

• Always wear safety goggles and protective clothing.
• Utilizați numai în zone bine ventilate.
• Do not use near sparks or open flames.
• Do not dispose of chemicals in the environment.
• A nu se lăsa la îndemâna copiilor.
• Asigurați-vă că cablul de alimentare nu este deteriorat și este împământat corespunzător.
• Never point the sprayer at people or animals.

2. Produs terminatview

The Avanti Handheld HVLP Paint & Stain Sprayer is designed for efficient application of paints and stains on various household projects. Its High Volume Low Pressure (HVLP) nozzle ensures a high volume of material with minimal overspray, resulting in a high-quality surface finish. The sprayer features a 1-1/2 quart cup capacity, suitable for covering areas up to 40 sq. ft. of fence, and a two-finger trigger for comfortable operation and reduced fatigue.

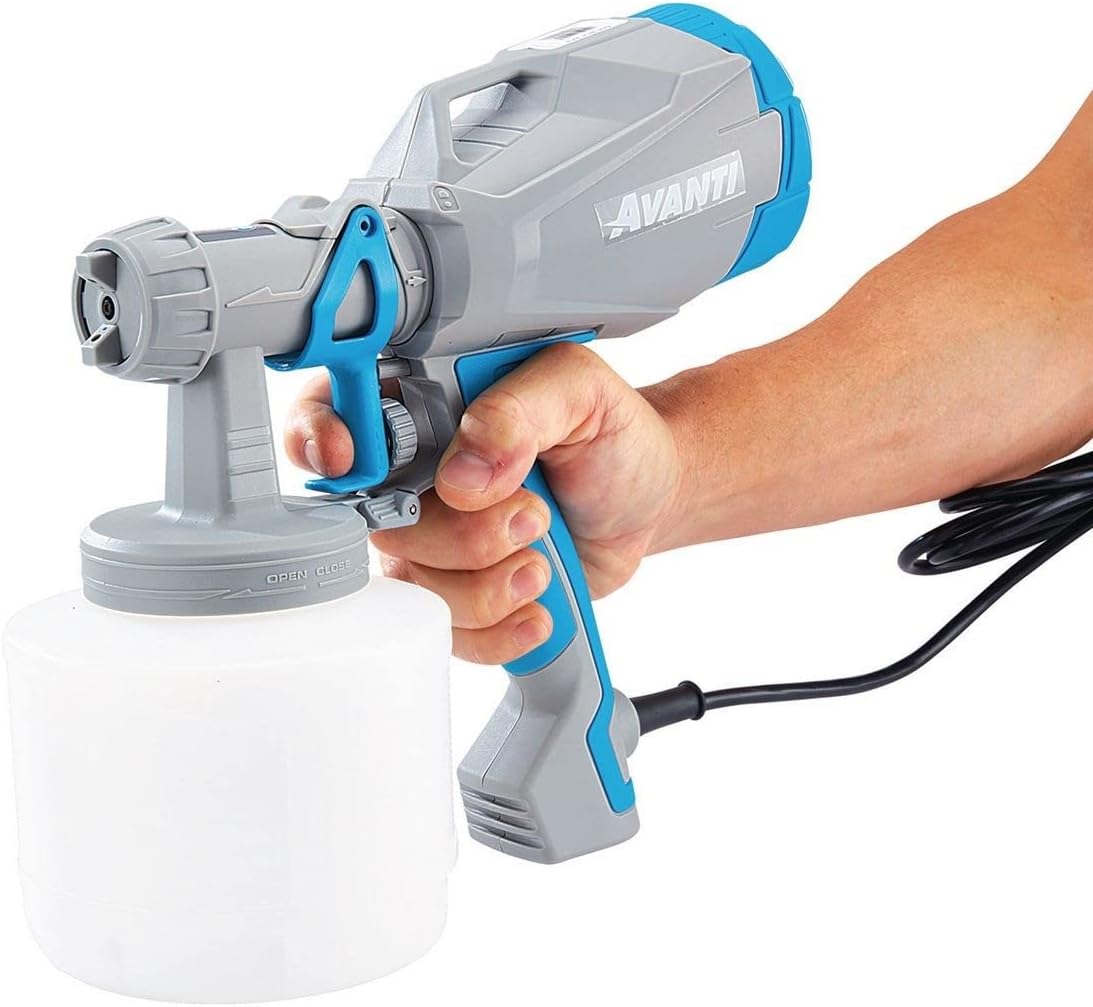

Figure 2.1: Avanti Handheld HVLP Paint & Stain Sprayer, showing its compact design and integrated paint cup.

Figure 2.2: Key features of the sprayer, including the easy adjustable spray pattern, two-finger trigger, and trigger-activated high-performance motor.

3. Componente

The Avanti Handheld HVLP Paint & Stain Sprayer comes with the following main components:

• Main Sprayer Unit (Motor and Handle)
• HVLP Nozzle Assembly
• 1-1/2 Quart Material Cup
• Cablu de alimentare

Figura 3.1: Detaliat view of the sprayer with numbered components and illustrations of available spray patterns (vertical, horizontal, cone).

4. Configurare

1. Preparare: Ensure your work area is well-ventilated and protected with drop cloths. Wear appropriate personal protective equipment (PPE), including safety goggles, gloves, and a respirator if necessary.
2. Pregatirea materialului: Prepare your paint or stain according to the manufacturer's instructions. Many materials may require thinning to achieve the optimal viscosity for spraying. Use a viscosity cup (not included) to test the material's flow time.
3. Fill Material Cup: Unscrew the material cup from the sprayer unit. Pour the prepared paint or stain into the cup, ensuring not to overfill. The cup has a 1-1/2 quart capacity. Securely reattach the material cup to the sprayer unit.
4. Reglarea duzei: The HVLP nozzle can be adjusted for different spray patterns. Rotate the air cap to select between vertical, horizontal, or cone spray patterns based on your application needs.
5. Conectare alimentare: Conectați cablul de alimentare la o priză cu împământare.

Figure 4.1: Close-up of the nozzle, illustrating how to adjust the spray pattern by rotating the air cap.

5. Instrucțiuni de utilizare

1. Spray de testare: Before spraying your project, always perform a test spray on a piece of scrap material to check the spray pattern and material flow. Adjust the nozzle and material flow knob as needed.
2. Holding the Sprayer: Hold the sprayer approximately 6-12 inches from the surface, keeping it perpendicular to the surface to ensure even coverage.
3. Tehnica de pulverizare: Press the two-finger trigger to activate the sprayer. Use smooth, even strokes, overlapping each pass by about 50% to avoid streaks and ensure uniform application. Release the trigger at the end of each pass.
4. Controlul fluxului de materiale: The sprayer features a material flow adjustment knob, typically located near the trigger. Turn the knob to increase or decrease the amount of material being sprayed.
5. Mai multe straturi: If multiple coats are required, allow adequate drying time between coats as recommended by the paint or stain manufacturer.

Figura 5.1: View of the two-finger trigger and the material flow adjustment knob for precise fluid control.

Figure 5.2: Proper grip for operating the handheld sprayer, demonstrating comfortable handling.

6. Întreținere și curățare

Proper cleaning and maintenance are crucial for the longevity and optimal performance of your sprayer. Clean the unit immediately after each use.

1. Empty Material: Disconnect power. Empty any remaining paint or stain from the material cup back into its original container.
2. Clătire inițială: Fill the material cup with an appropriate cleaning solution (water for latex/water-based materials, mineral spirits for oil-based materials). Spray the cleaning solution through the nozzle into a waste container until the spray runs clear.
3. Demontare și curățare: Disassemble the nozzle assembly and material cup. Thoroughly clean all parts that came into contact with paint or stain using the appropriate cleaning solution and a brush. Pay special attention to the nozzle, air cap, and fluid tube.
4. Unitate de ștergere: Ștergeți exteriorul unității de pulverizare cu un detergent publicitaramp pânză. Nu scufundați unitatea motorului în apă.
5. A se usca și a se păstra: Allow all components to dry completely before reassembling. Store the sprayer in a clean, dry place, away from extreme temperatures.

7. Depanare

8. Specificații

• Nume model: Avanti Handheld HVLP Paint & Stain Sprayer
• Număr de model: 8d8b8eb5-c175-4bb9-aa96-c67c4e730fa2
• Marca: Generic
• Volumul rezervorului: 1.5 Quarts (approx. 48 oz)
• Culoare: Albastru
• Utilizări recomandate: Painting (for decks, fences, trims, and various household projects)
• Material: Plastic
• Stil: Pistolă
• Sursa de alimentare: Corded Electric, Handheld
• Componente incluse: Duza HVLP
• Greutatea articolului: 3.91 lire sterline
• Dimensiuni pachet: 10.98 x 10.24 x 5.94 inci

9. Garanție și asistență

For warranty information, technical support, or to purchase replacement parts, please refer to the contact information provided with your product packaging or visit the manufacturer's official webPăstrați bonul fiscal ca dovadă a achiziției pentru orice reclamații în garanție.

For general inquiries, please contact customer service at the details provided on the product's retail page or packaging.
