Thermal Edge Model NE03023612 Electrical Enclosure Air Conditioner User Manual

1. Produs terminatview

The Thermal Edge Model NE03023612 is an indoor electrical enclosure air conditioner designed to maintain optimal temperatures within industrial enclosures. It provides 3,000 BTUH of cooling capacity and operates on a 230 VAC/60 Hz power supply. Its narrow body is suitable for 12-inch wide enclosures, and the sloped top facilitates water runoff. This unit features a NEMA Type 12 enclosure, offering protection against nonhazardous indoor elements such as dirt, dust, lint, dripping water, and light splashing. Key features include a condensate evaporation system, a thermal expansion valve for efficient refrigerant flow, and a programmable digital controller with built-in alerts.

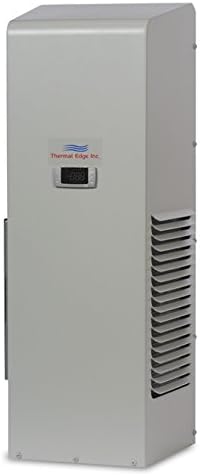

Figura 1: Faţă view of the Thermal Edge Model NE03023612 Electrical Enclosure Air Conditioner, showing its compact, narrow design, the digital display, and the Thermal Edge Inc. logo. The right side features ventilation grilles.

2. Informații de siguranță

Read all instructions carefully before installation, operation, or maintenance. Failure to follow these instructions may result in property damage, injury, or death. Keep this manual for future reference.

• Pericol electric: Ensure power is disconnected before performing any installation or maintenance. Only qualified personnel should perform electrical work.
• Echipamente grele: The unit weighs 72 pounds. Use proper lifting techniques and assistance to prevent injury during installation.
• Agent frigorific: Contains R 410A refrigerant. Do not attempt to service the refrigerant system unless certified.
• Ventilare: Ensure adequate clearance around the unit for proper airflow and heat dissipation.
• Conditii de mediu: This unit is designed for indoor use within a NEMA Type 12 enclosure. Do not expose to conditions beyond its specified operating environment.

3. Caracteristicile produsului

• Controler digital de temperatură: Programmable set point and temperature controls. Features visible error and/or alarm messaging, system status indication, and a keypad lockout function.
• Active Condensate Evaporation System: Continuously eliminates condensate, increasing unit efficiency by pre-cooling refrigerant.
• Caracteristici cheie de design: Constructed with a rigid chassis and seam-welded shroud. Thoughtful interior design facilitates easy maintenance.
• Unit Efficiency: Incorporates a highly efficient rotary compressor, a fully insulated and sealed cabinet, and a Thermal Expansion Valve to maintain cooling capacity across a broad ambient temperature range.
• Compressor Protection System: Includes high and low refrigerant pressure cutouts with fault indication, compressor anti-short cycle protection, and compressor run capacitors to reduce power inrush, save energy, and extend compressor life.

4. Configurare și instalare

Installation of the Thermal Edge NE03023612 should be performed by qualified personnel in accordance with all local and national electrical codes.

1. Despachetarea: Carefully remove the unit from its packaging. Inspect for any shipping damage. Report any damage to the carrier immediately.
2. Locație de montare: Select a suitable location on the electrical enclosure. The unit is designed for a narrow 12-inch wide enclosure. Ensure sufficient clearance for airflow around the intake and exhaust vents.
3. Montare: Securely mount the air conditioner to the enclosure using appropriate hardware. The unit's sloped top should be oriented correctly to allow for water runoff.
4. Conexiune electrică: Connect the unit to a 230 VAC/60 Hz power supply. Ensure proper grounding. Refer to the wiring diagram provided with the unit for specific connection details.
5. Inspecția inițială: Before powering on, double-check all connections and ensure no tools or debris are left inside the unit or enclosure.

5. Funcționare

The NE03023612 features a programmable digital controller for easy temperature management.

• Pornire: Once installed and connected, apply power to the unit. The digital display will illuminate.
• Setarea temperaturii: Use the controls on the digital display to set the desired temperature within the enclosure. Refer to the controller's specific instructions for detailed programming steps.
• Monitorizare: The digital display provides real-time temperature readings and system status. Pay attention to any error or alarm messages.
• Managementul condensului: The active condensate evaporation system automatically handles condensation. No external drip line is required.

6. Întreținere

Întreținerea regulată asigură performanța optimă și durata de viață a aparatului de aer condiționat.

• Curățarea/înlocuirea filtrului: Periodically inspect and clean or replace the air filters to ensure proper airflow and cooling efficiency. Frequency depends on environmental conditions.
• Curățarea bobinei: Over time, dust and debris can accumulate on the condenser and evaporator coils. Clean these coils as needed to maintain efficiency. Disconnect power before cleaning.
• Condensate System Check: While the system is self-evaporating, occasionally inspect the condensate drain pan for any blockages or excessive buildup.
• Inspecție generală: Annually, inspect all electrical connections, fan motors, and mounting hardware for wear or looseness.

7. Depanare

Înainte de a contacta asistența tehnică, review următoarele probleme și soluții comune.

For issues not listed or if solutions do not resolve the problem, contact Thermal Edge technical support.

8. Specificații

9. Garanție și asistență

For warranty information and technical assistance, please contact Thermal Edge Inc. directly. Keep your purchase receipt and model number (NE03023612) handy when contacting support.

Producător: Thermal Edge Inc.

Website: Visit the Thermal Edge Store on Amazon

For specific contact details, refer to the documentation provided with your product or the manufacturer's official website-ul.
