FUNIN HU66 2-in-1 Auto Lock Pick and Decoder User Manual

1. Produs terminatview

The FUNIN HU66 2-in-1 Auto Lock Pick and Decoder is a precision instrument engineered for professional locksmiths. This tool is designed to efficiently unlock and decode vehicle locks, specifically those found in various car models. It integrates the capabilities of an ignition lock pick, a door lock pick, and a decoder into a single, robust device.

Caracteristici cheie:

• Funcționalitate 3 în 1: Combines ignition lock picking, door lock picking, and decoding capabilities.
• Design original: Manufactured to original specifications, ensuring quality and reliability.
• Construcție durabilă: Made from metal for long-lasting performance.

2. Compatibilitate

The HU66 2-in-1 Auto Lock Pick and Decoder is compatible with the following vehicle makes and models:

• Audi: All models from 1996 to current (including A3, A4/S4, A6/S6, A8/S8, Allroad Quattro, TT).
• Vad: Galaxy models up to 2006.
• Porsche: Models up to 2001 and from 2001 onwards.
• Scaun: All models from 1996 to 2001, and most models from 2001 onwards.
• Skoda: Most models from 1996 to 2001, and most models from 2001 onwards.
• Volkswagen: Most models from 1996 to 2001, and most models after 2001 (including Beetle, Cabrio, Golf, GTI, Jetta, Passat).

3. Configurare

The HU66 2-in-1 tool is designed for immediate use upon receipt. No assembly or battery installation is required.

1. Inspecţie: Before first use, carefully inspect the tool for any signs of damage or manufacturing defects. Ensure all moving parts operate smoothly.
2. Familiarizare: Familiarize yourself with the tool's components, including the pick blade, tension arm, and decoding scale. Understanding the markings on the decoding scale is crucial for accurate operation.

Figura 1: Față view of the HU66 2-in-1 Auto Lock Pick and Decoder, showing the main body and decoding scale.

4. Instrucțiuni de utilizare

The HU66 2-in-1 tool allows for both picking and decoding of compatible vehicle locks. Proficiency with this tool requires practice and understanding of lock mechanisms.

Pași generali de operare:

1. Introduceți instrumentul: Carefully insert the pick blade of the HU66 tool into the keyway of the target lock cylinder. Ensure it is fully seated.
2. Aplicați tensiunea: Apply light, consistent tension to the lock cylinder using the tension arm of the tool.
3. Pick the Pins: Systematically manipulate the internal pins of the lock using the picking mechanism. The goal is to set each pin to its shear line.
4. Decode the Lock: Once the lock is picked open, or during the picking process, use the integrated decoding scale to read the bitting depths of the lock's pins. This information can then be used to cut a new key.
5. Scoateți unealta: Once the operation is complete, carefully remove the tool from the lock cylinder.

Figura 2: Prim-plan view highlighting the decoding scale and markings on the HU66 tool.

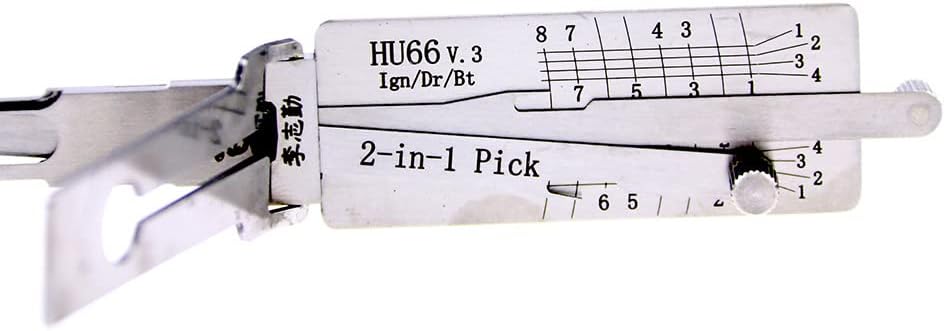

Figure 3: The HU66 tool with its internal picking mechanism partially extended, demonstrating its operational state.

5. Întreținere

Proper maintenance will extend the lifespan and ensure the optimal performance of your HU66 tool.

• curatenie: After each use, wipe the tool clean with a soft, dry cloth to remove any debris or residue. Avoid using abrasive cleaners or solvents.
• Lubrifiere: Periodically apply a small amount of light lubricant (e.g., silicone-based spray) to the moving parts to ensure smooth operation. Wipe off any excess.
• Depozitare: Store the tool in a dry, clean environment, preferably in its original packaging or a protective case, to prevent damage and corrosion.
• Inspecţie: Regularly inspect the pick blade and tension arm for any signs of wear, bending, or damage. Damaged tools should be replaced to ensure effective and safe operation.

6. Depanare

This section addresses common issues you might encounter with the HU66 2-in-1 tool.

7. Specificații

8. Garanție și asistență

Specific warranty details and direct customer support contact information are not provided within this manual. For warranty claims, technical assistance, or further inquiries, please refer to the original purchase documentation or contact the seller/manufacturer directly through their official channels.
