1. Introducere
This manual provides essential information for the safe and effective use of your Milton S-715 1/4" FNPT M Style Coupler. This product is designed for connecting air tools and hoses to an air compressor system, providing a secure and efficient connection. Please read this manual thoroughly before installation and operation.
2. Informații de siguranță
Observe the following safety precautions to prevent injury and damage to the product or equipment:
- Always wear appropriate personal protective equipment (PPE), including eye protection, when working with compressed air systems.
- Ensure the air supply is turned off and pressure is relieved before connecting or disconnecting couplers.
- Do not exceed the maximum operating pressure specified for the coupler or your air system components.
- Inspect couplers and hoses regularly for wear, damage, or leaks. Replace damaged components immediately.
- Use thread sealant (e.g., PTFE tape) on all threaded connections to ensure an airtight seal and prevent leaks.
- Keep hands and body parts clear of moving parts and pressurized air streams.
3. Conținutul pachetului
Pachetul dvs. ar trebui să conțină următoarele articole:
- Milton S-715 1/4" FNPT M Style Coupler (2 units)
4. Configurare și instalare
Follow these steps to properly install the Milton S-715 M Style Coupler:
- Pregătiți punctul de conectare: Ensure the air line or tool connection point is clean and free of debris.
- Aplicați etanșant pentru filete: Wrap 3-4 layers of PTFE thread seal tape clockwise around the male threads of the component you are connecting the coupler to (e.g., air hose, air tool inlet). Ensure the tape does not cover the opening of the fitting.
- Thread the Coupler: Carefully thread the 1/4" FNPT (Female National Pipe Thread) end of the Milton S-715 coupler onto the prepared male threads.
- Tighten the Connection: Use a wrench to tighten the coupler securely. Do not overtighten, as this can damage the threads or the coupler. A snug, leak-free connection is sufficient.
- Testare pentru scurgeri: Once installed, restore air pressure to the system and check for any air leaks using a soapy water solution. Bubbles indicate a leak that needs to be addressed by re-tightening or re-applying thread sealant.

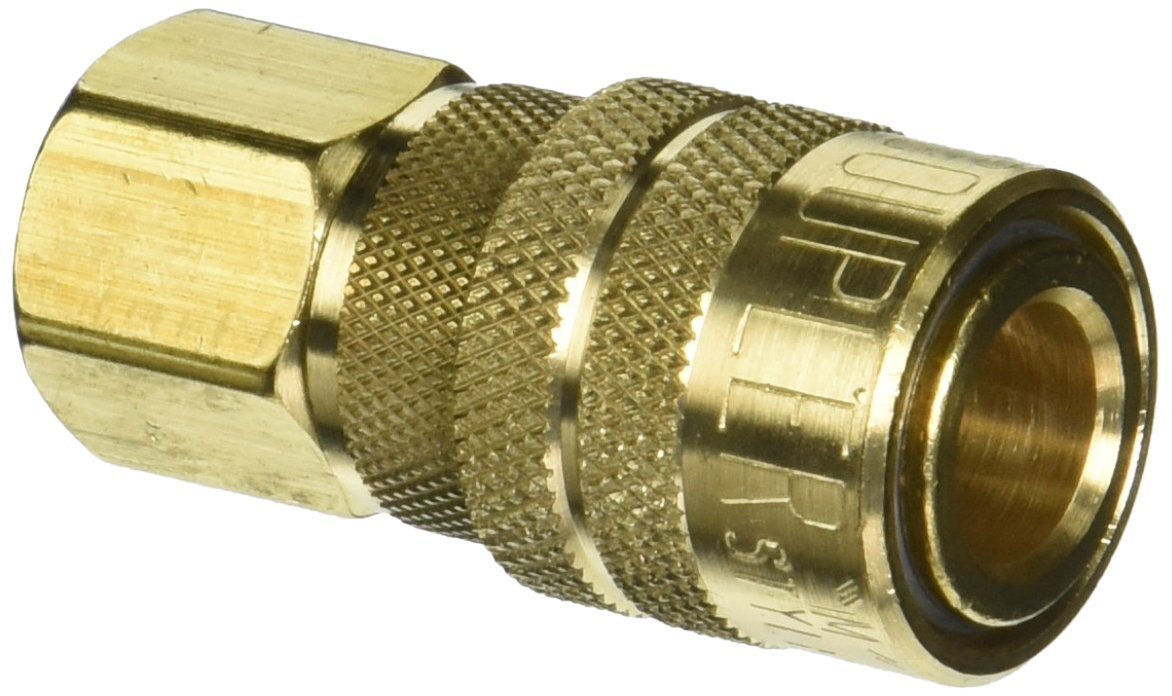

Image showing the Milton S-715 M Style Coupler, featuring its brass construction and 1/4 inch female NPT threading. This coupler is designed for quick and secure connections in air systems.
5. Instrucțiuni de utilizare
The Milton S-715 M Style Coupler is designed for quick and easy connection and disconnection of M Style plugs (not included).
- Connecting an Air Tool/Hose: Ensure the air supply is off or the line is depressurized if connecting to a live line. Push the M Style plug (male fitting) firmly into the coupler. The coupler's sleeve will retract and then snap forward, locking the plug in place. Pull gently on the plug to confirm a secure connection.
- Disconnecting an Air Tool/Hose: Ensure the air tool is no longer under pressure. Pull back the sleeve on the coupler. The plug will release, allowing you to remove the air tool or hose.
6. Întreținere
Regular maintenance ensures optimal performance and extends the lifespan of your coupler:
- curatenie: Keep the coupler clean and free of dirt, dust, and debris. Wipe with a clean cloth as needed.
- Lubrifiere: Periodically apply a few drops of pneumatic tool oil or a silicone-based lubricant to the coupler's moving parts (sleeve and internal mechanism) to ensure smooth operation.
- Inspecţie: Regularly inspect the coupler for signs of wear, corrosion, or damage. Check the O-rings for cracks or deterioration. Replace the coupler if any significant damage is observed.
- Depozitare: Store couplers in a clean, dry environment when not in use to prevent corrosion and contamination.
7. Depanare
Consultați tabelul de mai jos pentru problemele comune și soluțiile acestora:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Scurgere de aer la conexiune | Improperly applied thread sealant; loose connection; damaged threads. | Re-apply thread sealant and re-tighten; inspect threads for damage and replace if necessary. |
| Coupler Not Locking Plug | Incorrect plug style (not M Style); debris in coupler; worn internal mechanism. | Ensure plug is M Style; clean coupler; lubricate internal parts; replace coupler if worn. |
| Dificultăți de conectare/deconectare | Lack of lubrication; debris; worn components. | Lubricate coupler; clean thoroughly; replace if components are excessively worn. |
8. Specificații
| Caracteristică | Detaliu |
|---|---|
| Numărul de model | S-715 |
| Dimensiunea firului | 1/4" FNPT (Female National Pipe Thread) |
| Stil cuplaj | M Style (Industrial Interchange) |
| Material | Alamă |
| Număr de bucăți | 2 (în acest pachet) |
| Aplicație | Air tools, air hoses, air compressor systems |
9. Garanție și asistență
Milton products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the official Milton website-ul lor sau contactați departamentul lor de asistență pentru clienți. Păstrați bonul fiscal ca dovadă a achiziției.
